Orbbec Femto Mega Depth Camera w/ Jetson Nano & 4K RGB
The Orbbec Femto Mega is a programmable multi-mode depth and 4K RGB camera integrating an NVIDIA Jetson Nano for on-device AI processing. Compatible with Windows and Linux via the Orbbec SDK, it provides a complete 3D vision platform for robotics, automation, and spatial computing via USB-C or Gigabit Ethernet with PoE support.
Features
- Integrated NVIDIA Jetson Nano enables in-camera AI processing for real-time depth vision and computer vision algorithms.
- Multi-mode 1MP Time-of-Flight (ToF) depth sensor paired with a 4K RGB camera for rich 3D scene reconstruction.
- Supports wide (120°×120°) and narrow (75°×65°) fields of view with configurable frame rates up to 30 fps.

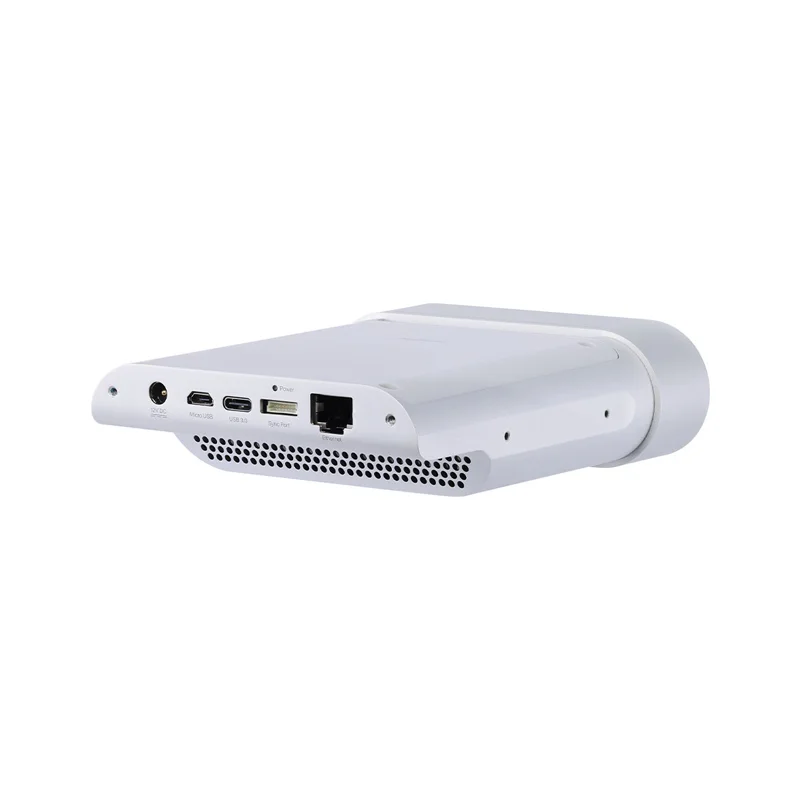

- Dual connectivity via USB 3.2 Gen 1 Type-C and Gigabit Ethernet with Power over Ethernet (PoE) support for flexible deployment.
- Built-in 6-DoF IMU enables sensor fusion for motion tracking and precise spatial alignment in dynamic applications.
Out of stock
The Orbbec Femto Mega Depth Camera is a high-performance, software-defined vision platform designed for developers and system integrators in AI, robotics, and industrial automation. It combines Microsoft’s proven Time-of-Flight (ToF) depth sensing technology with an onboard NVIDIA Jetson Nano module, allowing complex computer vision pipelines to run directly on the camera without external processing hosts. This integration significantly reduces latency and system complexity for real-time applications.
Architecturally, the camera provides multi-mode depth operation, supporting both wide and narrow fields of view to adapt to different working distances and scene densities. The 4K RGB sensor captures high-fidelity color data synchronized with the depth stream, enabling detailed 3D scene understanding. Power and data interfaces include USB-C and Gigabit Ethernet with PoE, offering flexible cabling and power options for both mobile and fixed installations, while the integrated 6-DoF IMU supports advanced sensor fusion for applications requiring precise motion tracking.
Additional Information
| Weight | 0.56 kg |
|---|---|
| Dimensions | 11.5 × 4 cm |
