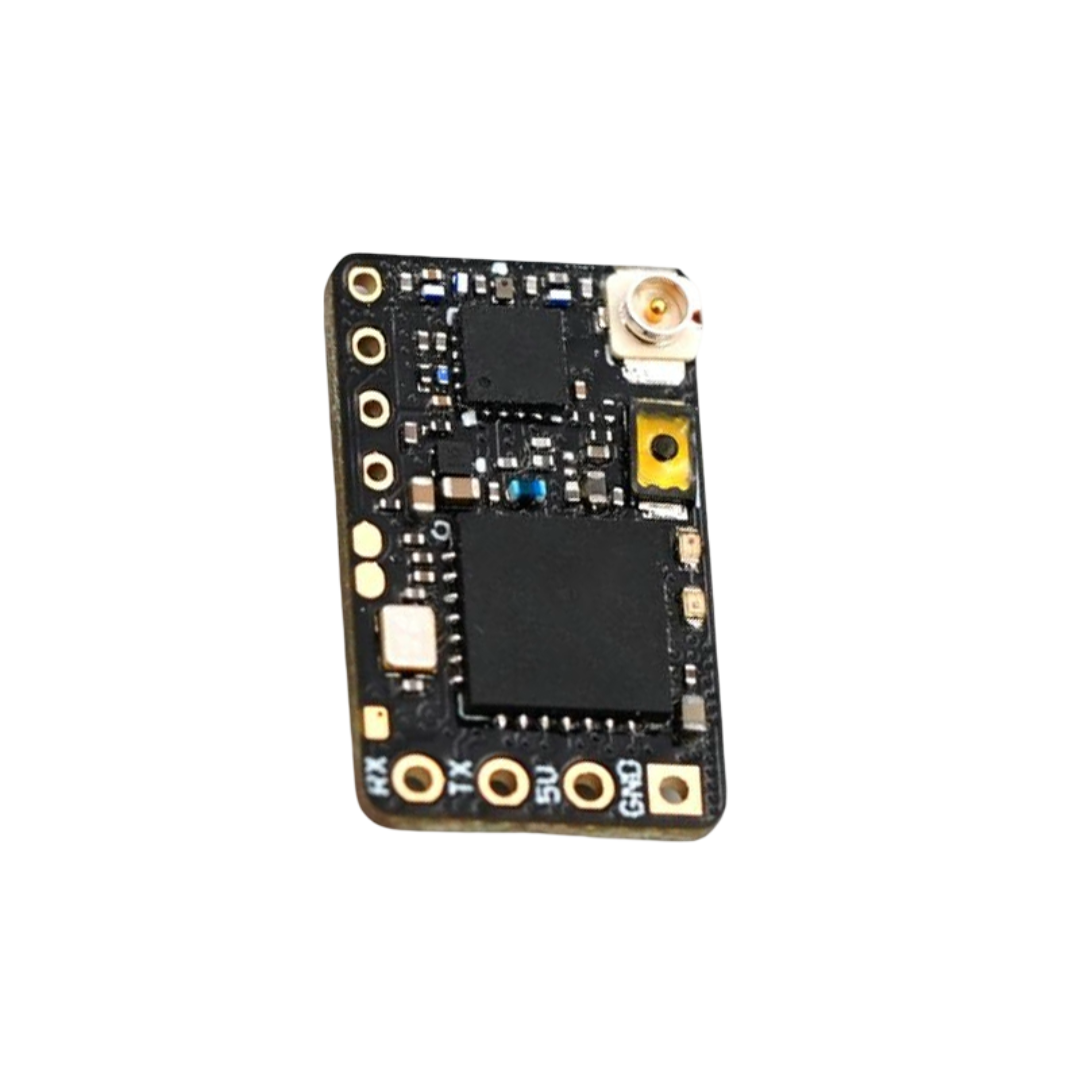

TBS Crossfire Nano RX Pro Receiver
The TBS Crossfire Nano RX Pro Receiver is a compact, long-range receiver designed for the TBS Crossfire ecosystem, offering up to 500mW telemetry output power for reliable control and telemetry link integrity on extended-range FPV and RC aircraft.
Features
- High-power telemetry output up to 500mW for robust long-range signal integrity.
- Ultra-compact 11mm x 18mm footprint and lightweight design for tight FPV builds.
- Wide input voltage range from +3.3V to 8.4V, compatible with 1S to 2S LiPo direct power.
- Optimized low-latency protocol for responsive control in racing and freestyle applications.

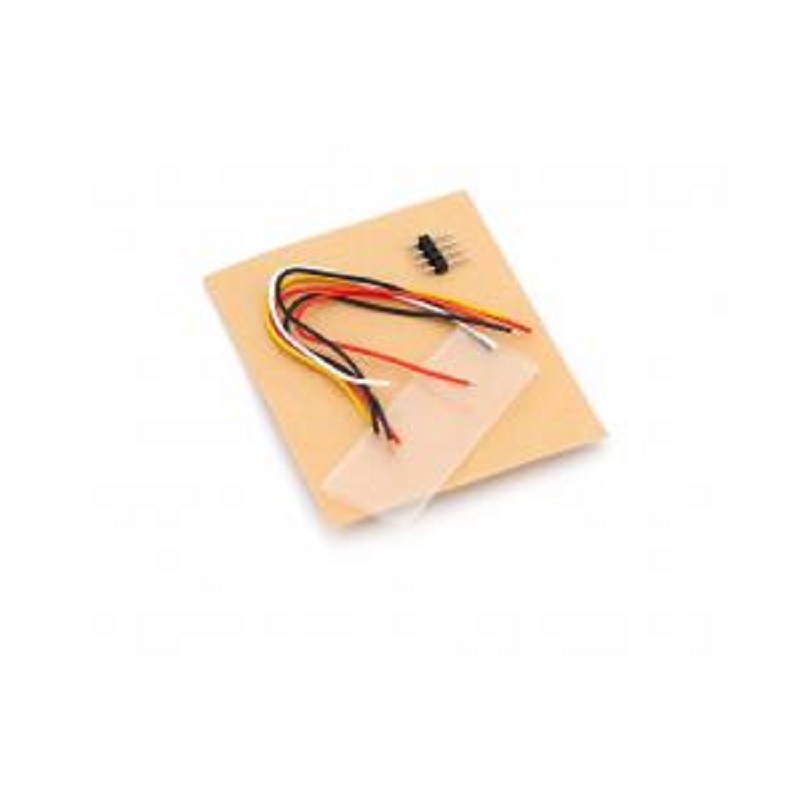

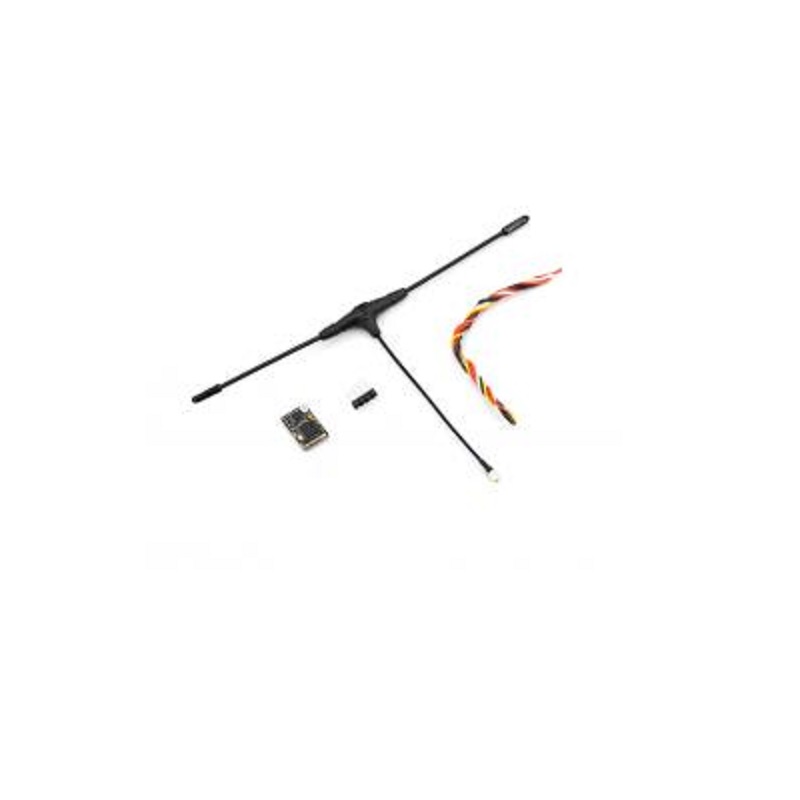

- Includes TBS Crossfire Immortal T V2 antenna and full wiring harness for easy integration.
Out of stock
The TBS Crossfire Nano RX Pro Receiver is engineered as the high-power telemetry variant within the established Crossfire ecosystem. It builds upon the proven reliability of the Nano RX platform by integrating an amplified telemetry transmitter, capable of outputting up to 500mW. This ensures that telemetry data—crucial for long-range flight monitoring—is transmitted back to the transmitter with the same robust link margin as the control signal, preventing telemetry dropout during extended 50km+ missions.

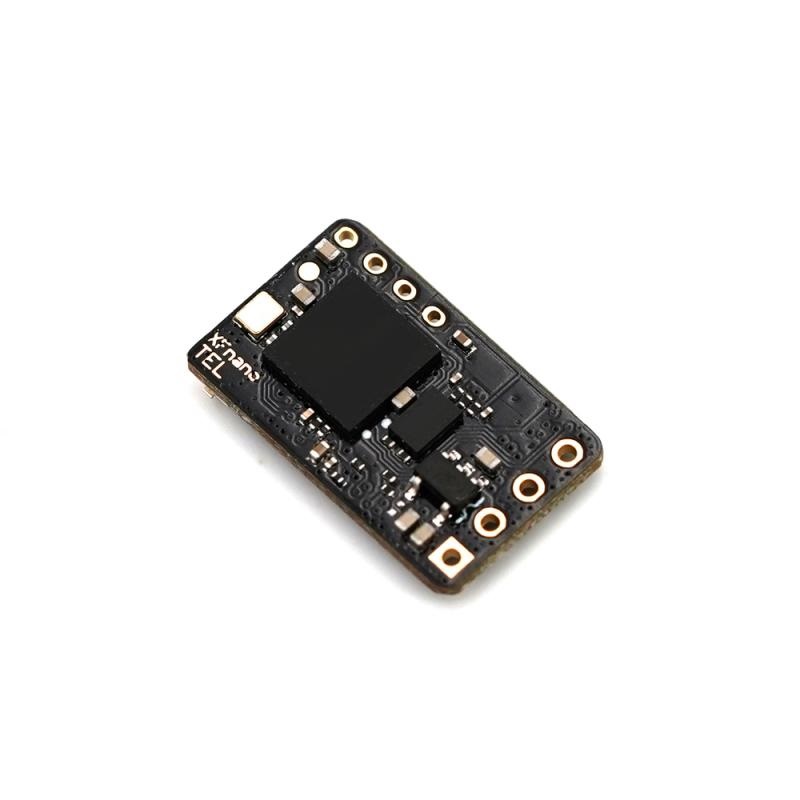

Its ultra-compact PCB measures just 11mm by 18mm, making it an ideal choice for weight-sensitive and space-constrained builds, from micro long-range rigs to full-size 7-inch FPV drones. The receiver operates on a wide +3.3V to 8.4V input, allowing direct connection to a 1S or 2S LiPo battery or regulated 5V BEC without the need for a voltage regulator. The included Immortal T V2 antenna provides a durable, flexible solution for optimal signal reception.
Additional Information
| Weight | 0.018 kg |
|---|---|
| Dimensions | 10 × 13 × 3 cm |
