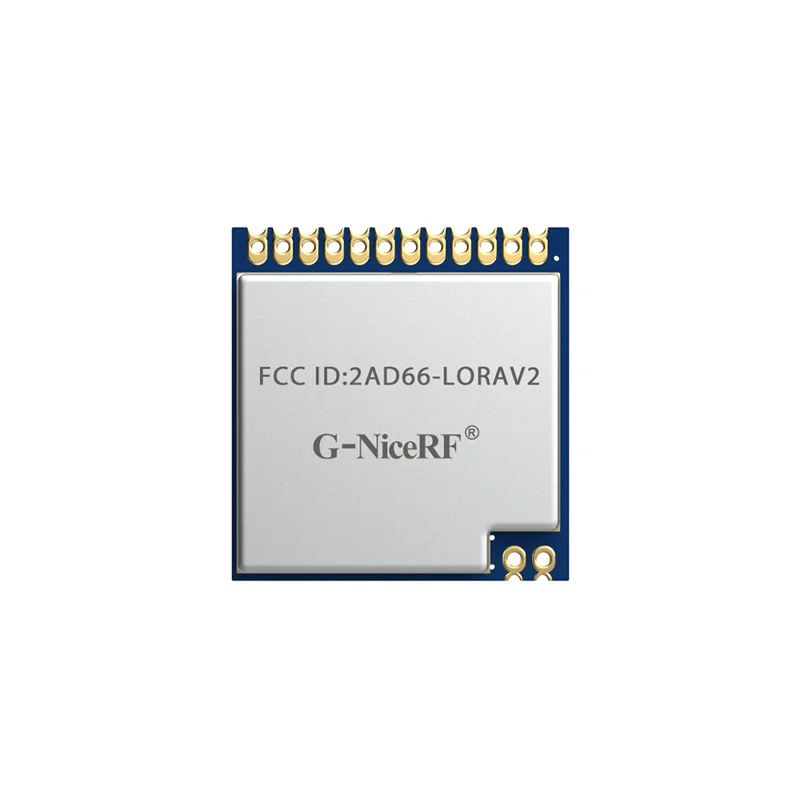

G-NiceRF LoRa1276-915 FCC-Certified 915MHz SX1276 LoRa Module
The G-NiceRF LoRa1276-915 is a front-end LoRa module based on the Semtech SX1276 transceiver, operating in the 915MHz ISM band and programmable from 137-1020MHz. It features high RF output power, superior link budget, and SPI interface for integration into long-range, low-power IoT sensor networks.
Features
- Semtech SX1276 LoRa transceiver with programmable 137-1020MHz frequency range.
- High RF output power of +20dBm (100mW) and excellent sensitivity of -139dBm for maximum range.
- Supports LoRa, FSK, and GFSK modulation for flexible network design and legacy compatibility.
- Integrated antenna switch controlled via chip SPI, simplifying RF front-end design.
- Low operating voltage range (1.8V-3.7V) and optimized current consumption for battery-powered nodes.
Out of stock
The G-NiceRF LoRa1276-915 is a compact, FCC-certified RF module designed for developers requiring robust, long-range wireless connectivity. It integrates the industry-standard Semtech SX1276 chip, which utilizes LoRa spread spectrum modulation to achieve exceptional link budgets and resilience against interference in crowded RF environments. The module’s front-end architecture includes an integrated antenna switch, reducing external component count and simplifying PCB layout.
Operating from a 1.8V to 3.7V supply, it is optimized for low-power IoT deployments, supporting deep sleep modes and configurable output power. The SPI interface provides direct control for configuring frequency, modulation, data rate, and power settings, making it compatible with a wide range of microcontrollers for building custom LoRaWAN nodes or proprietary point-to-point networks.
Additional Information
| Weight | 0.005 kg |
|---|---|
| Dimensions | 7 × 9 × 1 cm |
