Seeed Studio Studio reCamera 2002 Base Board WiFi HaLow
The Seeed Studio Studio reCamera 2002 Base Board WiFi HaLow is a long-range wireless expansion board for the reCamera 2002 series, adding IEEE 802.11ah connectivity for reliable image and data transmission up to 1 km. It operates in the 902–928 MHz band for superior signal penetration and supports flexible 12V DC, USB-C, and Li-ion battery power inputs.
Features
- Adds long-range IEEE 802.11ah WiFi HaLow connectivity to the reCamera 2002 series for up to 1 km transmission in open environments.
- Operates in the 902–928 MHz sub-GHz band, providing enhanced signal penetration through walls, trees, and obstacles.
- Supports high data rates up to 32.5 Mbps with configurable 2 MHz, 4 MHz, and 8 MHz channel bandwidths.
- Offers flexible power options via 12V DC input, USB Type-C, or a 3.7V Li-ion battery for versatile field deployment.

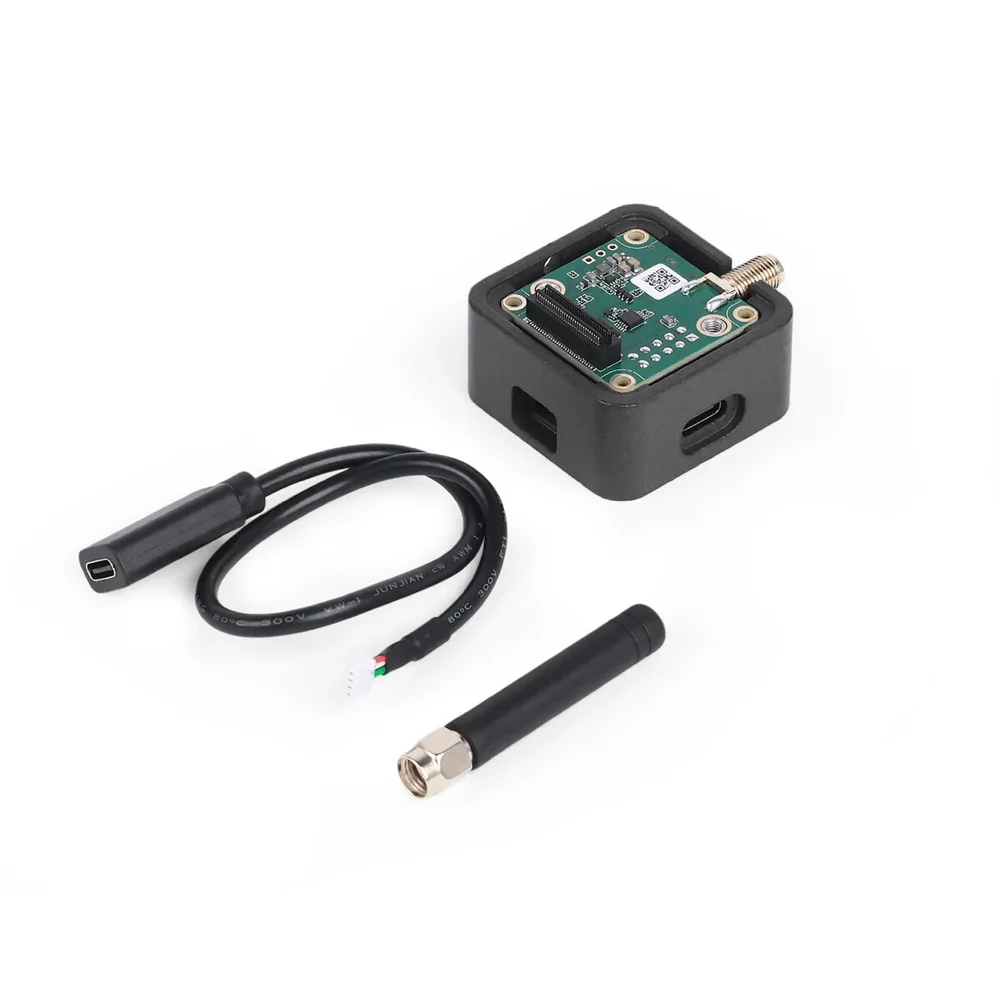

- Features external SMA or I-PEX antenna interfaces for optimized RF performance and range extension.
Out of stock
The Seeed Studio Studio reCamera 2002 Base Board WiFi HaLow is a specialized expansion module designed to equip the reCamera 2002 series with long-range, low-power wireless communication. It implements the IEEE 802.11ah (WiFi HaLow) standard, operating in the license-free 902–928 MHz ISM band. This sub-GHz frequency provides significantly improved range and signal penetration compared to traditional 2.4 GHz Wi-Fi, making it ideal for challenging outdoor and industrial environments.
The board supports a theoretical maximum data rate of 32.5 Mbps, configurable across 2 MHz, 4 MHz, and 8 MHz channel bandwidths to balance throughput and link robustness. With a theoretical maximum transmit power of 27 dBm, it is engineered for reliable connectivity over distances up to 1 kilometer in line-of-sight conditions. Power management is highly flexible, accepting 12V DC, USB Type-C, or a 3.7V Li-ion battery, enabling deployment in both fixed and portable surveillance or telemetry setups.
Additional Information
| Weight | 0.071 kg |
|---|---|
| Dimensions | 7 × 10 × 4 cm |
