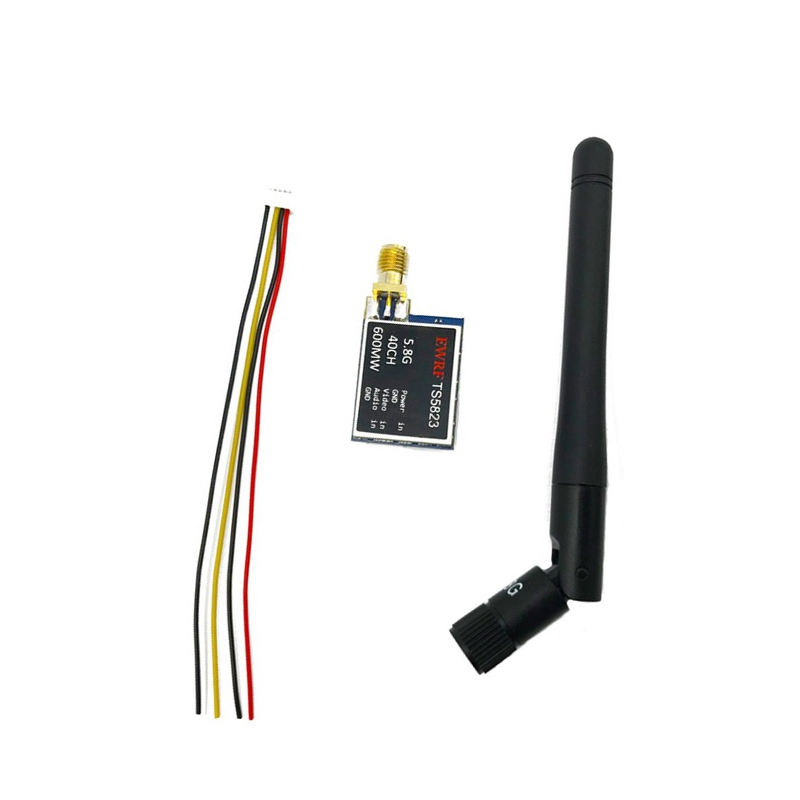

EWRF TS5823 600mW Wireless Video Transmitter

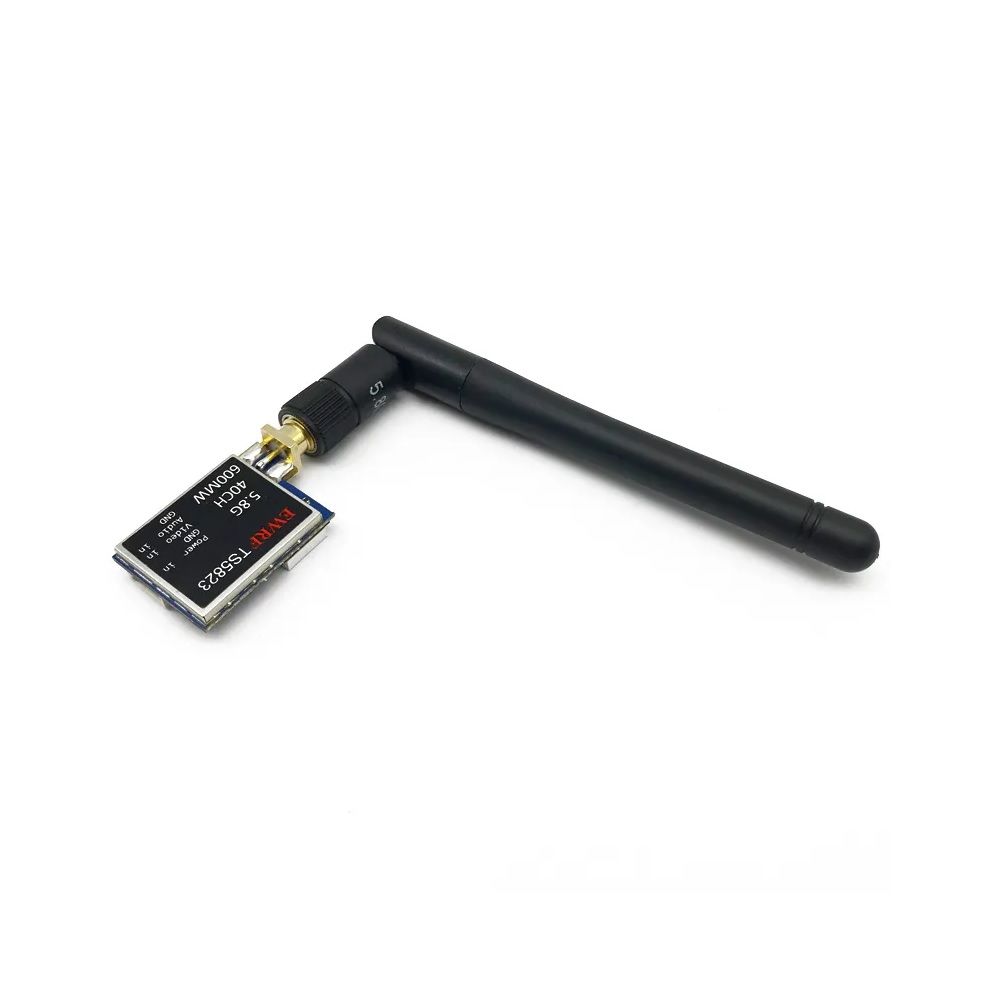

EWRF TS5823 600mW Wireless Video Transmitter - Image 2

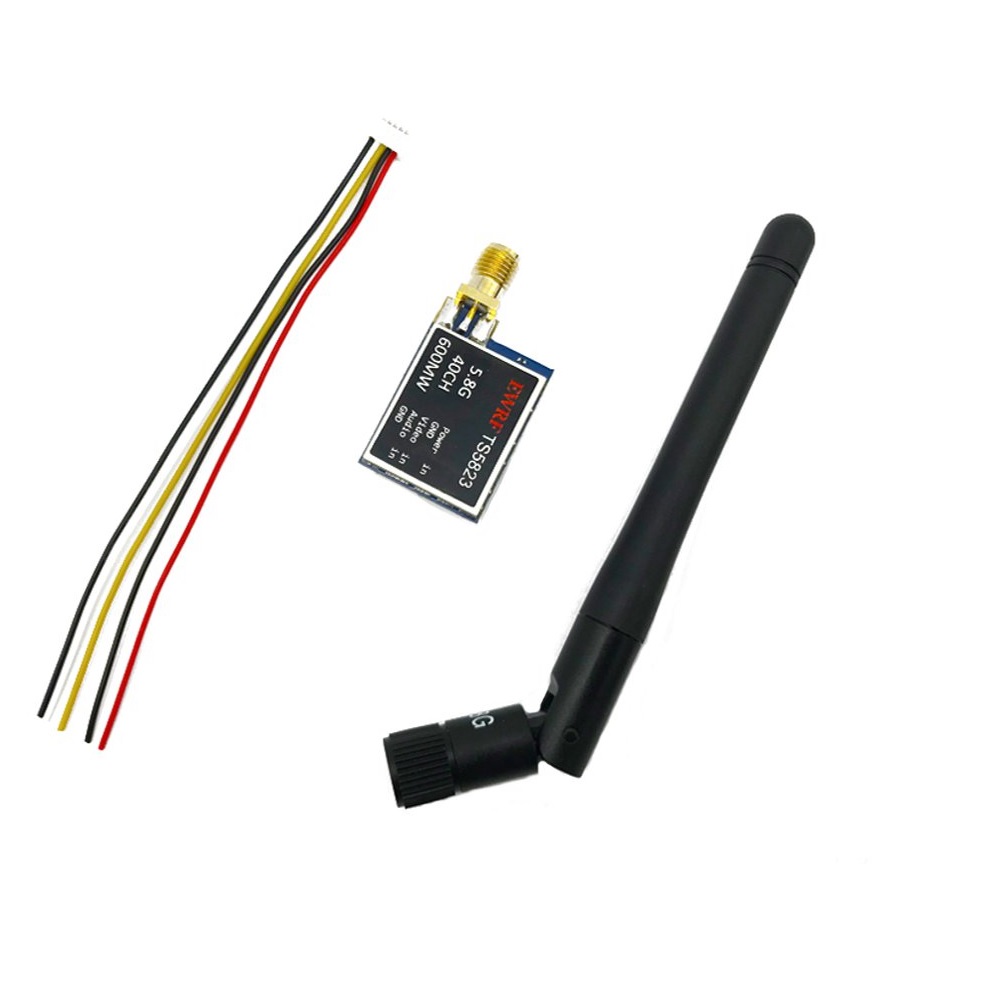

EWRF TS5823 600mW Wireless Video Transmitter - Image 3
SKU: DRFC-2171
📋 GST Invoice Available

EWRF TS5823 600mW Wireless Video Transmitter

₹1,729.00 (Inclusive of all taxes)
Out of Stock

The EWRF TS5823 is a 5.8GHz analog video transmitter delivering 600mW output power for extended-range FPV applications. It features a wide 7-24V DC input range for compatibility with various LiPo battery configurations and includes a heat sink for thermal management.

Features

  • 600mW high-power output for long-range FPV video transmission.
  • Operates on the 5.8GHz band with 40 selectable channels for interference avoidance.
  • Wide 7-24V DC input voltage range compatible with 2S to 6S LiPo battery systems.
  • Integrated heat sink ensures stable operation and prevents thermal throttling.
  • Compact and lightweight design (30x20x8mm, 13g) for easy integration into drone builds.

Out of stock

Description

The EWRF TS5823 600mW Wireless Video Transmitter is engineered for reliable, long-range analog FPV video feeds. Its robust 600mW RF amplifier provides a strong signal capable of penetrating obstacles and maintaining video link integrity at distance, making it suitable for both freestyle and exploration drone builds.

Designed with operational durability in mind, the unit incorporates a substantial heat sink to dissipate thermal energy generated during continuous high-power transmission. The broad 7-24V input range offers direct compatibility with common drone power systems without requiring an external voltage regulator, simplifying wiring and reducing points of failure.

Key Features

  • High-Power 600mW Output: Delivers a strong, stable video signal for extended-range FPV flying and penetration through light obstacles.
  • 5.8GHz Band with 40 Channels: Provides ample frequency selection to avoid interference from other pilots or wireless systems.
  • Broad Voltage Compatibility: Accepts 7-24V DC input, allowing direct connection to 2S, 3S, 4S, 5S, or 6S LiPo batteries without a separate BEC.
  • Active Thermal Management: Integrated aluminum heat sink ensures consistent performance by effectively dissipating heat during prolonged use.
  • Compact & Lightweight Form Factor: Minimal size and weight (13g) minimize impact on drone flight characteristics and center of gravity.
  • Pit Mode Functionality: Includes an OFF (Pit Mode) setting to disable transmission for bench testing and meet event regulations.

Applications

  • Long-range FPV exploration and freestyle drones requiring stable analog video links.
  • Racing drones where a reliable 600mW signal can provide a competitive edge on larger courses.
  • DIY FPV ground stations or portable receiver setups for signal diversity and boosting.
  • FPV fixed-wing aircraft and wings where extended flight times benefit from a consistent video feed.

Technical Specifications

Item TypeVideo Transmitter (VTX)
Connector TypeRP-SMA Female
Frequency Band5.8 GHz
Number of Channels40
Transmitting Power600mW / OFF (Pit Mode)
Working Current (600mW)230 mA
Power Supply VoltageDC 7-24V
Weight13 g
Dimensions (L x W x H)30 x 20 x 8 mm

Frequently Asked Questions

What is the input voltage range for the EWRF TS5823 VTX?

The TS5823 accepts a wide DC input range of 7 to 24 volts. This makes it directly compatible with standard 2S (7.4V), 3S (11.1V), 4S (14.8V), 5S (18.5V), and 6S (22.2V) LiPo batteries without requiring a separate 5V or 12V BEC. Always ensure your power source is within this range to prevent damage.

How many channels does the TS5823 have, and what is Pit Mode?

This transmitter offers 40 selectable channels within the 5.8GHz band, providing flexibility to find a clear frequency. The 'Pit Mode' (or OFF setting) allows you to power the VTX without transmitting a video signal. This is essential for bench testing, meeting race event regulations, and preventing interference with other pilots on the field.

Does the TS5823 require additional cooling?

The unit includes an integrated aluminum heat sink designed to dissipate heat generated during operation at its full 600mW output. For most applications, this is sufficient. However, for prolonged use in high-ambient-temperature environments or in builds with poor airflow, ensuring some passive airflow over the heat sink is recommended for optimal longevity.

Package Includes

  • 1 x EWRF TS5823 FPV Video Transmitter
  • 1 x Antenna
  • 1 x Power/Video Cable

Additional Information

Weight 0.013 kg
Dimensions 3 × 2 × 0.8 cm
