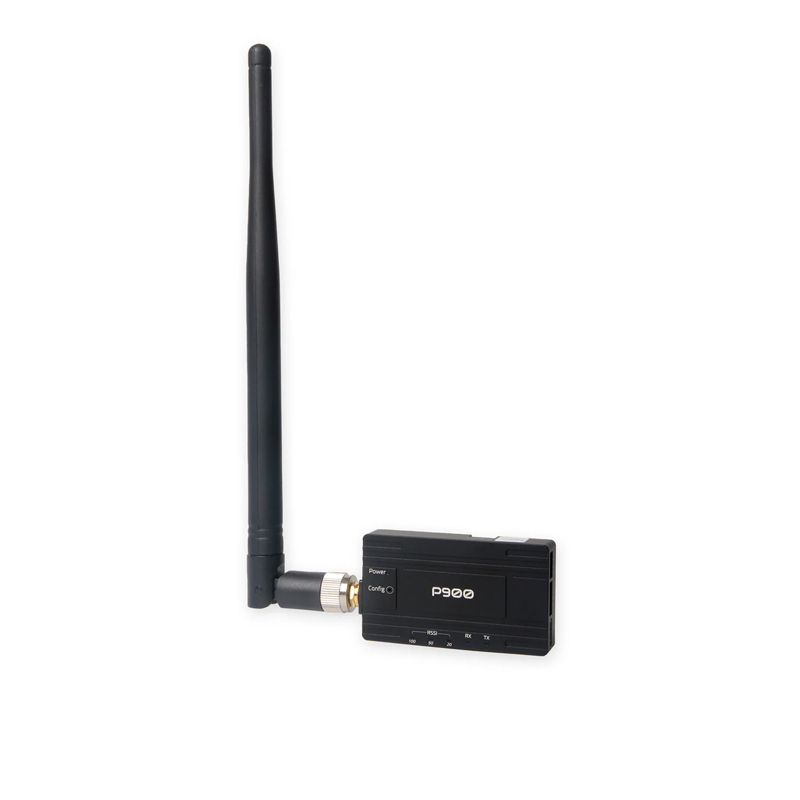

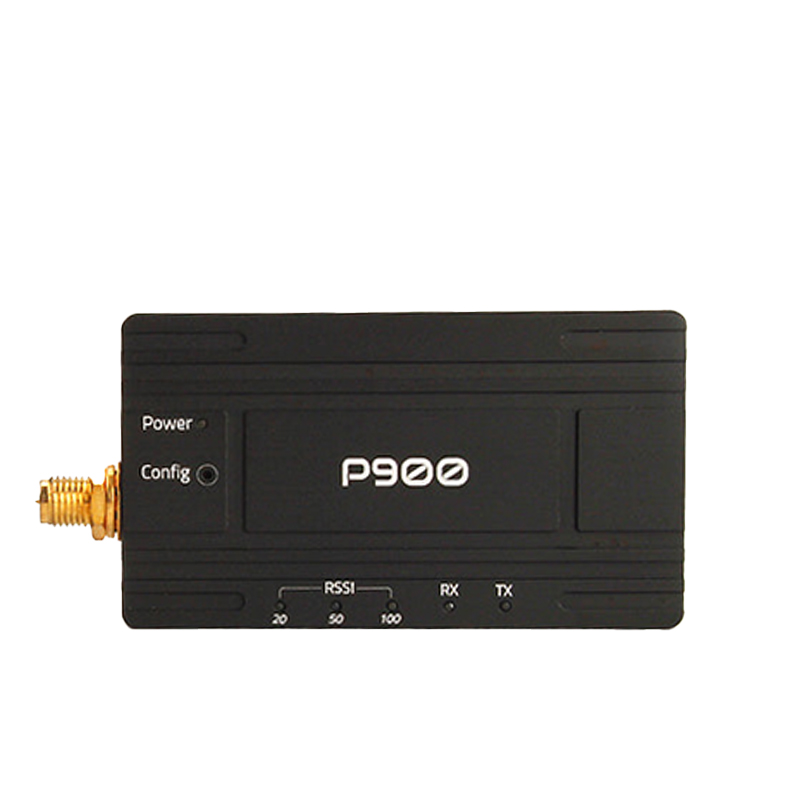

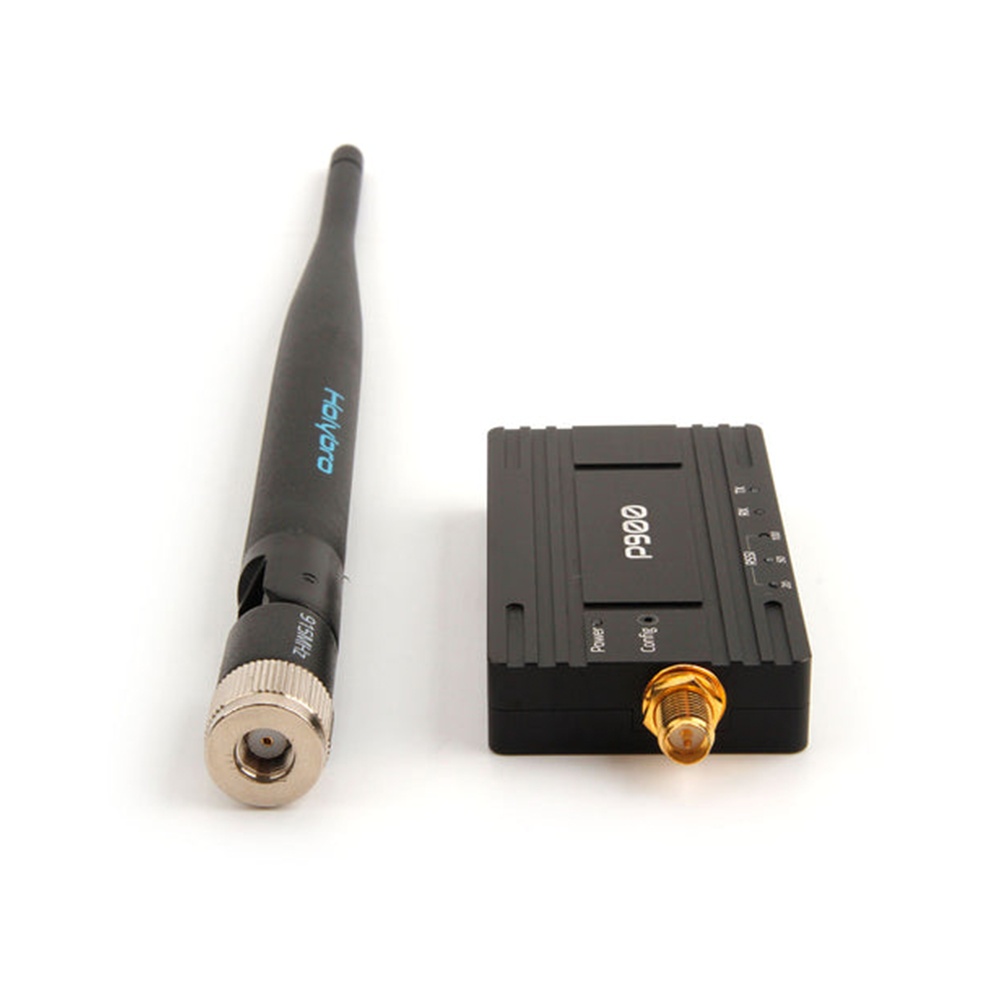

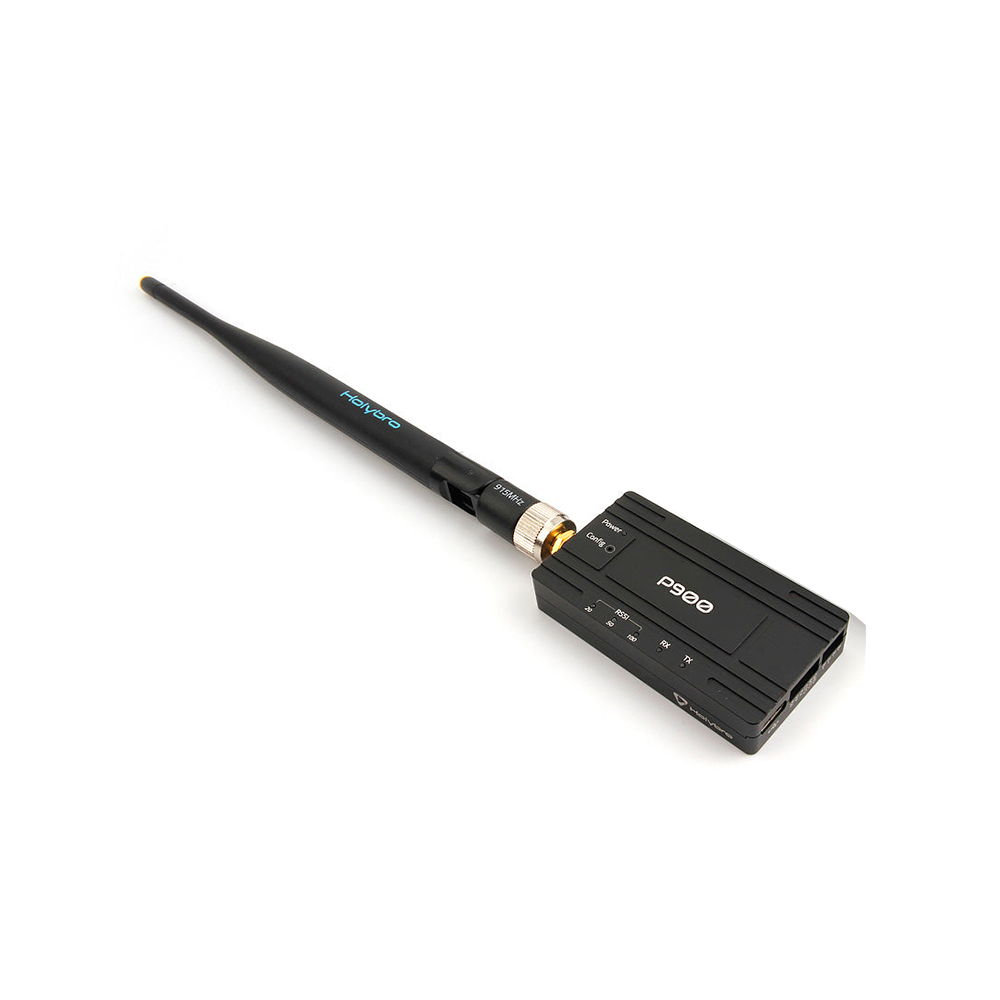

Holybro Microhard Telemetry Radio P900
The Holybro Microhard Telemetry Radio P900 is a high-power, long-range RF module operating in the 902-928 MHz ISM band, designed for robust telemetry and command links between ground stations and UAVs. It features a wide 7-35V input range, integrated USB-C configuration, and supports point-to-point, point-to-multipoint, and mesh topologies for ArduPilot and PX4-based flight control systems.
Features
- Operates in the 902-928 MHz ISM band with up to 40 miles (60km) range.
- Wide input voltage range of 7-35V DC via integrated high-voltage BEC.
- Features FHSS (Frequency Hopping Spread Spectrum) for robust, low-latency links up to 276 kbps.

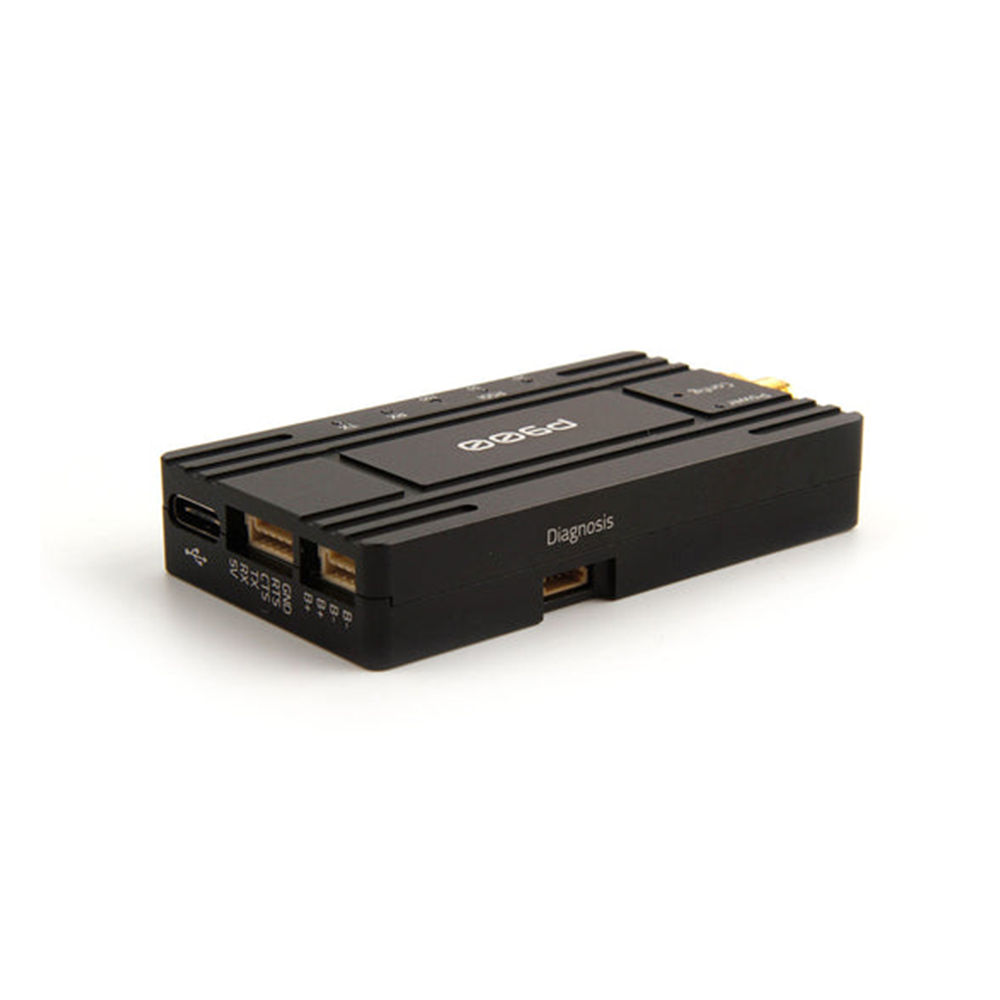

- Includes USB Type-C port and 6-pin JST-GH connector for direct flight controller telemetry port integration.
- Supports transparent serial communication, mesh networking, and remote diagnostics.
Out of stock
The Holybro Microhard P900 Telemetry Radio integrates a Microhard Pico Series RF module, engineered for mission-critical UAV telemetry and command-and-control applications. It provides a reliable, license-exempt wireless serial link capable of operating in challenging RF environments, utilizing frequency hopping spread spectrum (FHSS) technology to mitigate interference and ensure data integrity with 32-bit CRC and configurable ARQ.
Designed for seamless integration with common autopilot systems, the module features an onboard high-voltage BEC accepting 7-35V input, making it compatible with a wide range of LiPo and power supply configurations. The unit includes visual diagnostics via UART and RSSI LED indicators, and can be configured via AT commands over its data port or through the dedicated diagnostic port using the PicoConfig application.
Additional Information
| Weight | 0.19 kg |
|---|---|
| Dimensions | 23 × 15 × 5 cm |
