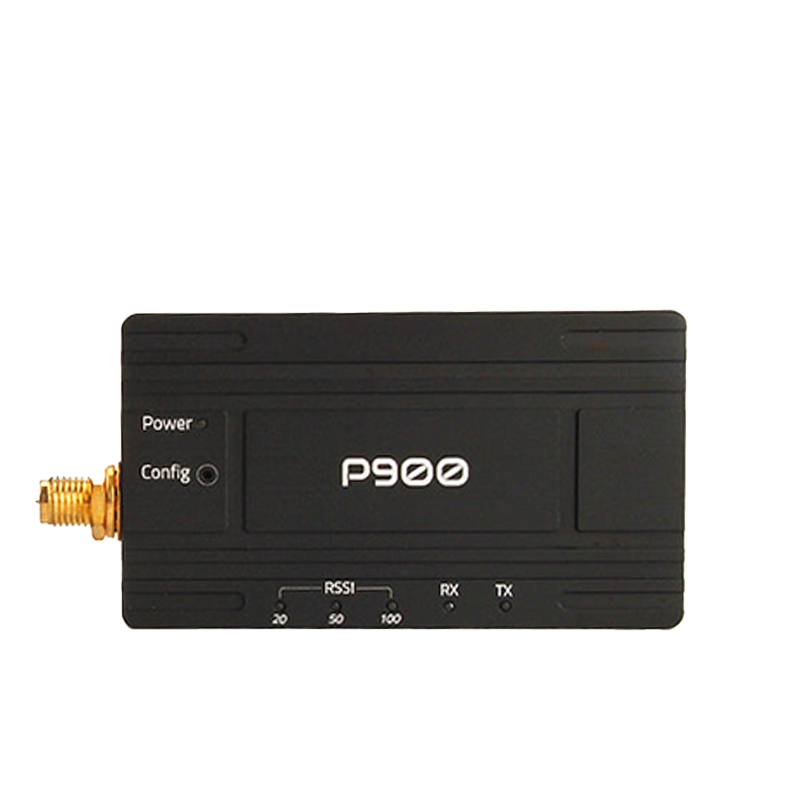

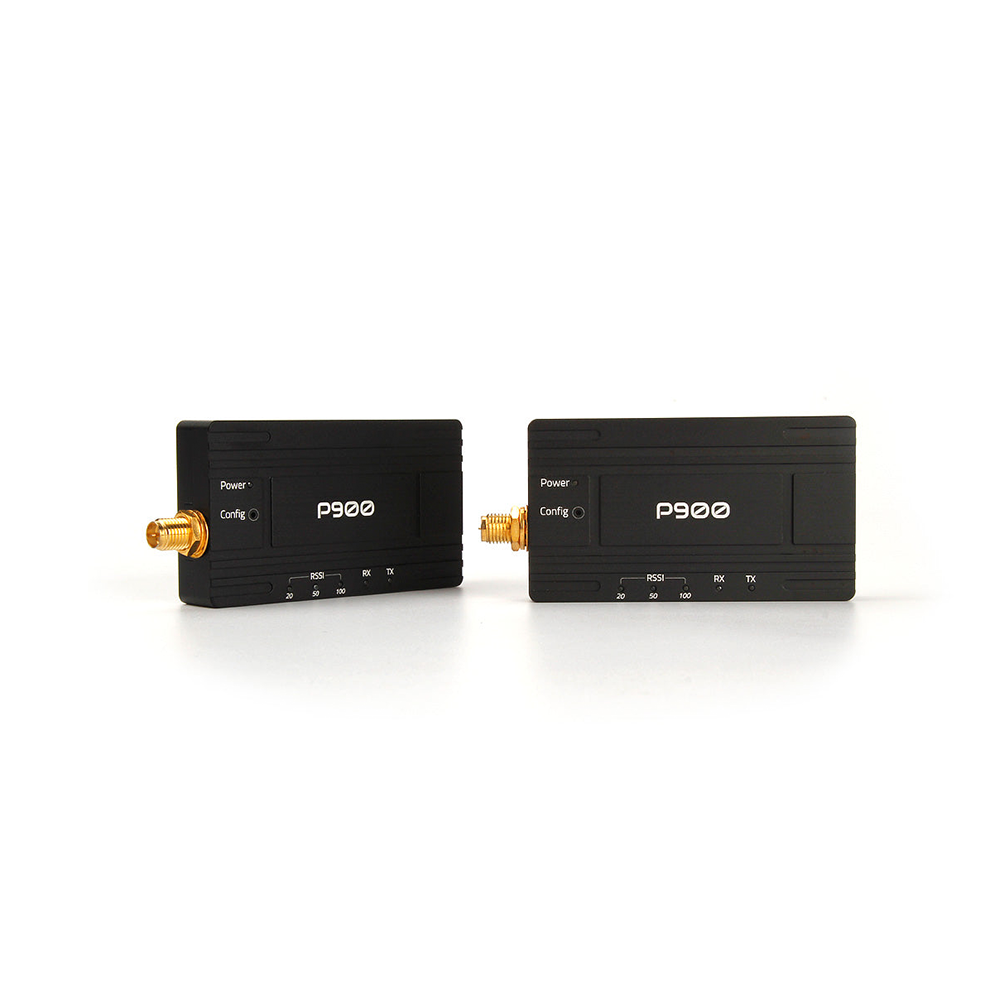

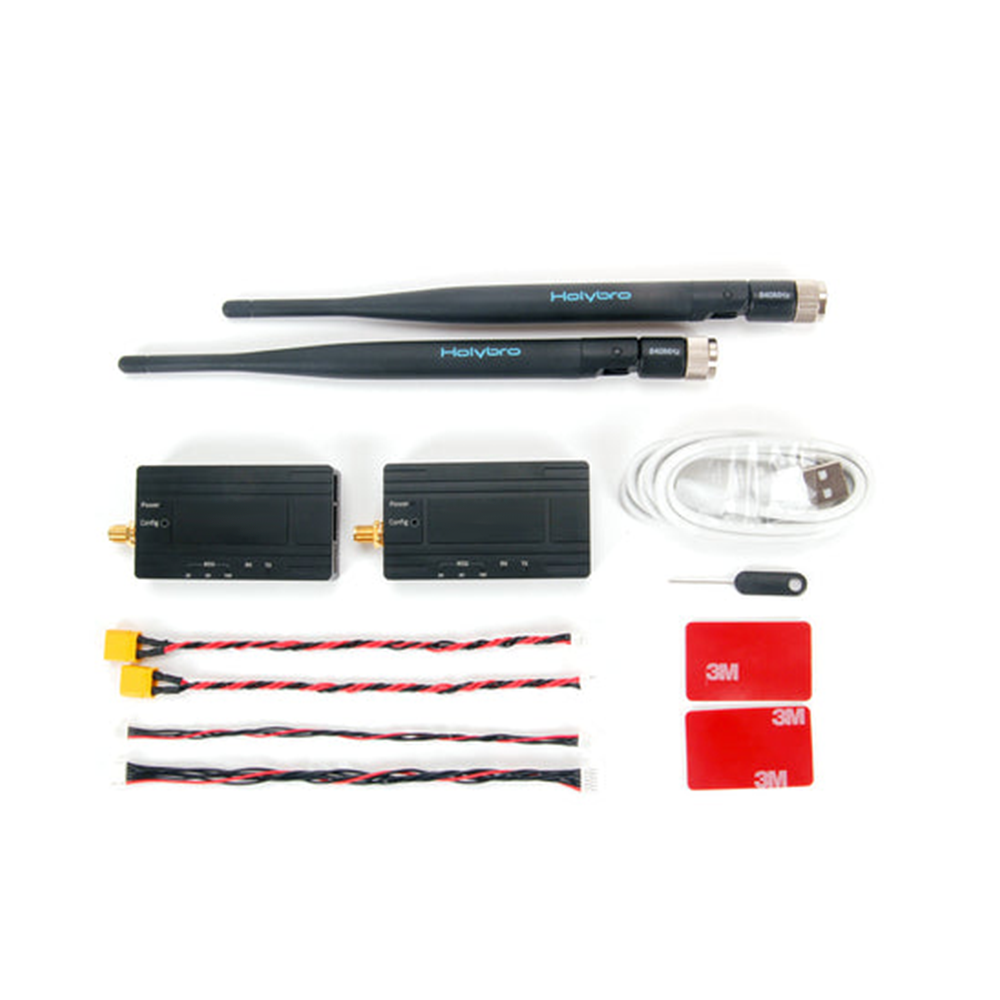

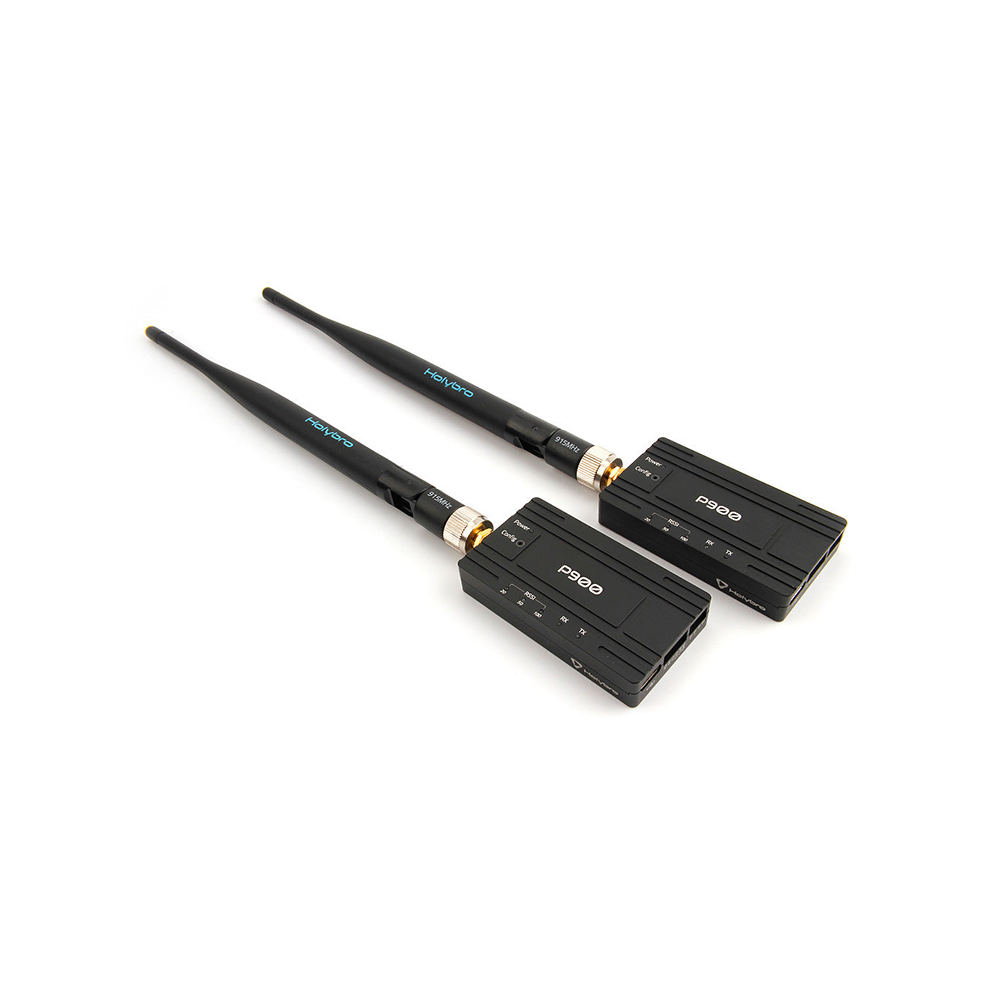

Holybro Microhard Telemetry Radio P900 - Two Radio Set
The Holybro Microhard Telemetry Radio P900 is a high-performance, long-range RF module pair designed for robust UAV telemetry and command links. Operating in the 902-928 MHz ISM band, it supports FHSS technology, mesh networking, and direct connection to flight controller TELEM ports via a 6-pin JST-GH connector, handling a wide 7-35V DC input.
Features
- Long-Range Telemetry: Provides reliable wireless serial communication with a range of up to 40 miles (60km) in the 902-928 MHz ISM band.
- Robust Connectivity: Features FHSS (Frequency Hopping Spread Spectrum) technology and supports Point-to-Point, Point-to-Multipoint, and secure Mesh network topologies.
- High-Voltage BEC: Integrated onboard BEC accepts a wide 7-35V DC input via a 4-pin JST-GH connector, compatible with common LiPo battery configurations.
- Direct Flight Controller Integration: Includes a 6-position JST-GH connector for plug-and-play connection to the TELEM port on Pixhawk, Cube, and other autopilot systems.
- Advanced Diagnostics: Separate diagnostic port and USB Type-C interface allow for configuration via AT commands or the PicoConfig application for network control and monitoring.
Out of stock
The Holybro Microhard Telemetry Radio integrates the industrial-grade Microhard Pico Series RF module, delivering high-performance, low-latency wireless serial communications for demanding UAV applications. It employs Frequency Hopping Spread Spectrum (FHSS) technology to ensure reliable data transfer in noisy RF environments, supporting transparent link rates up to 276 kbps. The system is designed for robust topologies including Point-to-Point, Point-to-Multipoint, and true Mesh networking with auto-routing capabilities.
Engineered for integration with professional flight control systems, the radio features a high-voltage BEC supporting 7-35V DC input, making it compatible with 2S to 6S LiPo setups without an external regulator. The unit includes clear LED indicators for UART transmission and three-stage RSSI strength, alongside comprehensive error detection with 32-bit CRC and selectable ARQ (Automatic Repeat reQuest) for data integrity. Its separate diagnostics port enables transparent remote configuration and real-time network health monitoring.
Additional Information
| Weight | 0.268 kg |
|---|---|
| Dimensions | 23 × 15 × 5 cm |
