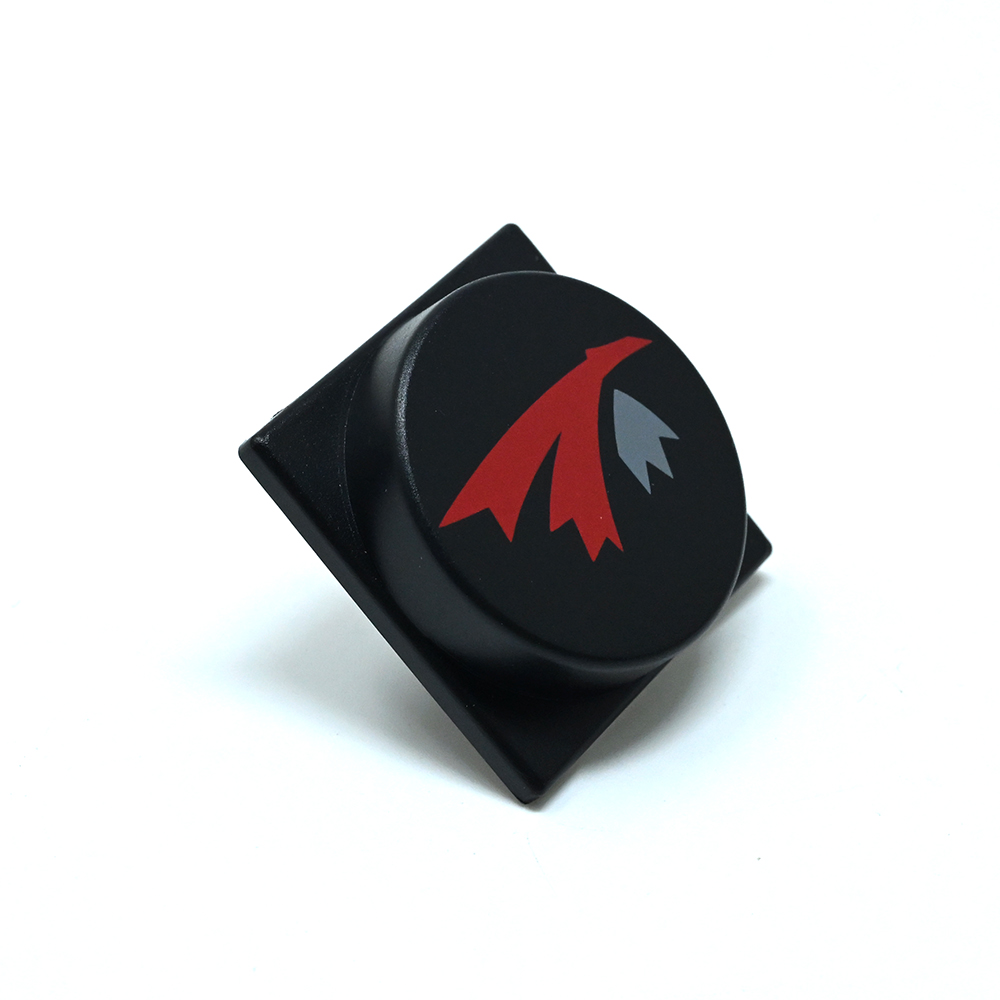

TrueRC X-AIR 5.8 Mk. II RHCP RP-SMA Antenna
The TrueRC X-AIR 5.8 Mk. II is a high-gain directional patch antenna designed for 5.1–6.7GHz FPV video systems, featuring RHCP polarization and an RP-SMA connector for stable, long-range signal reception on goggles and ground stations.
Features
- High-gain directional patch antenna with 9.5–10.5 dBic gain for extended range clarity.
- Wide 120° beam coverage ensures stable reception without constant repositioning.
- Optimized for 5.1–6.7GHz bandwidth, compatible with all common 5.8GHz analog and digital HD FPV systems.
- RHCP (Right-Hand Circular Polarization) reduces multi-path interference for cleaner video.
- Compact, lightweight design (32x32mm, 10g) with RP-SMA connector for direct goggle or module mounting.
Out of stock
The X-AIR 5.8 Mk. II represents a significant upgrade in compact directional antenna design. Engineered with aerospace-grade PCB materials, it delivers a wide 120° beam pattern and a high axial ratio, ensuring consistent signal purity and reduced video breakup during long-range flights. Its advanced computer-aided design achieves performance comparable to larger antennas in a package nearly a quarter of the size.

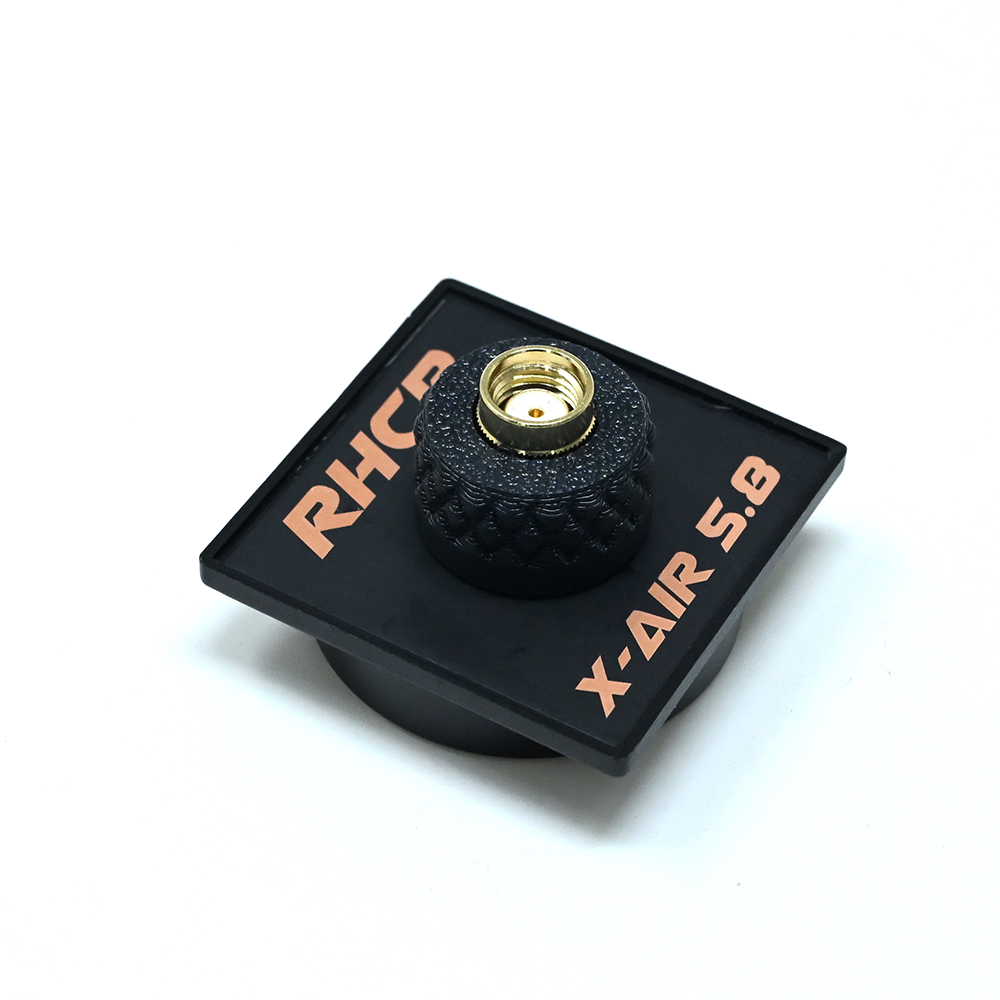

This antenna is built for durability and integration, featuring a robust RP-SMA connector suitable for direct attachment to FPV goggles or video receiver modules. The optimized beam pattern provides stable reception across a broad area, minimizing the need for precise antenna aiming and allowing pilots to focus on flight.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 3.2 × 3.2 cm |
