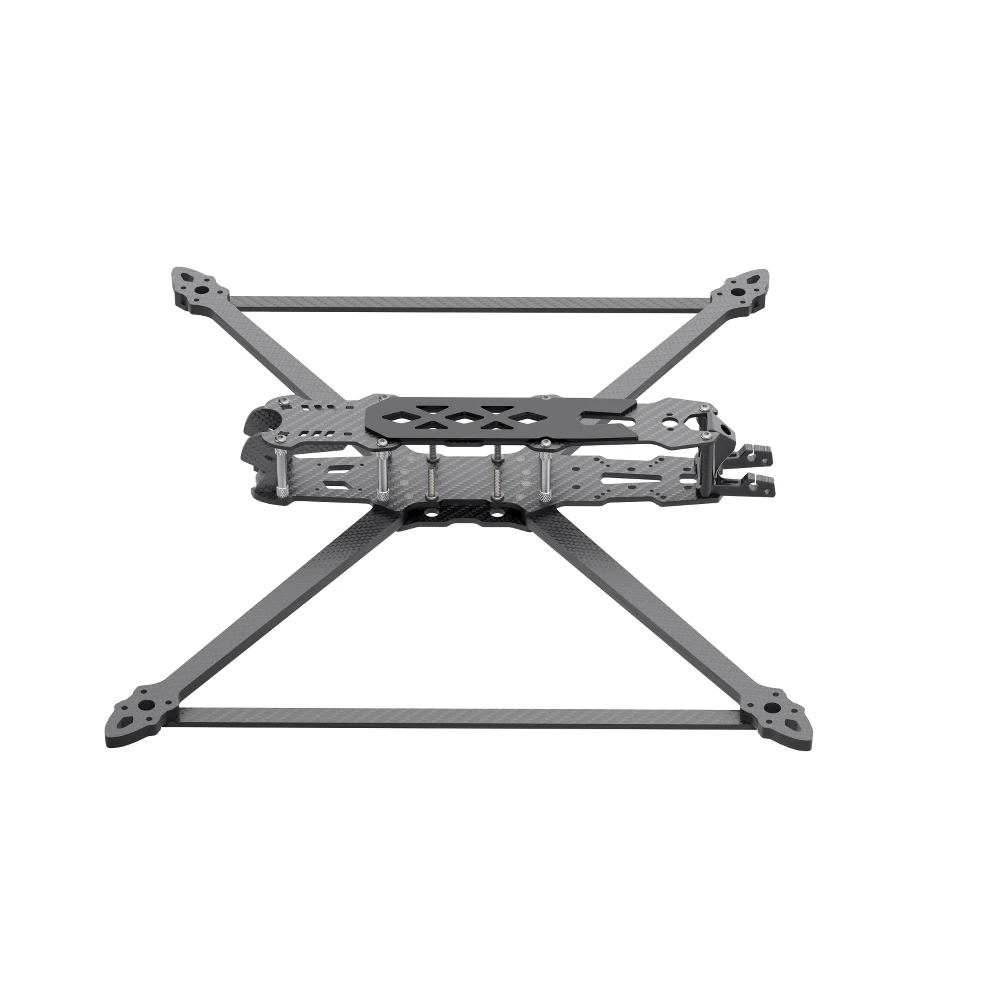

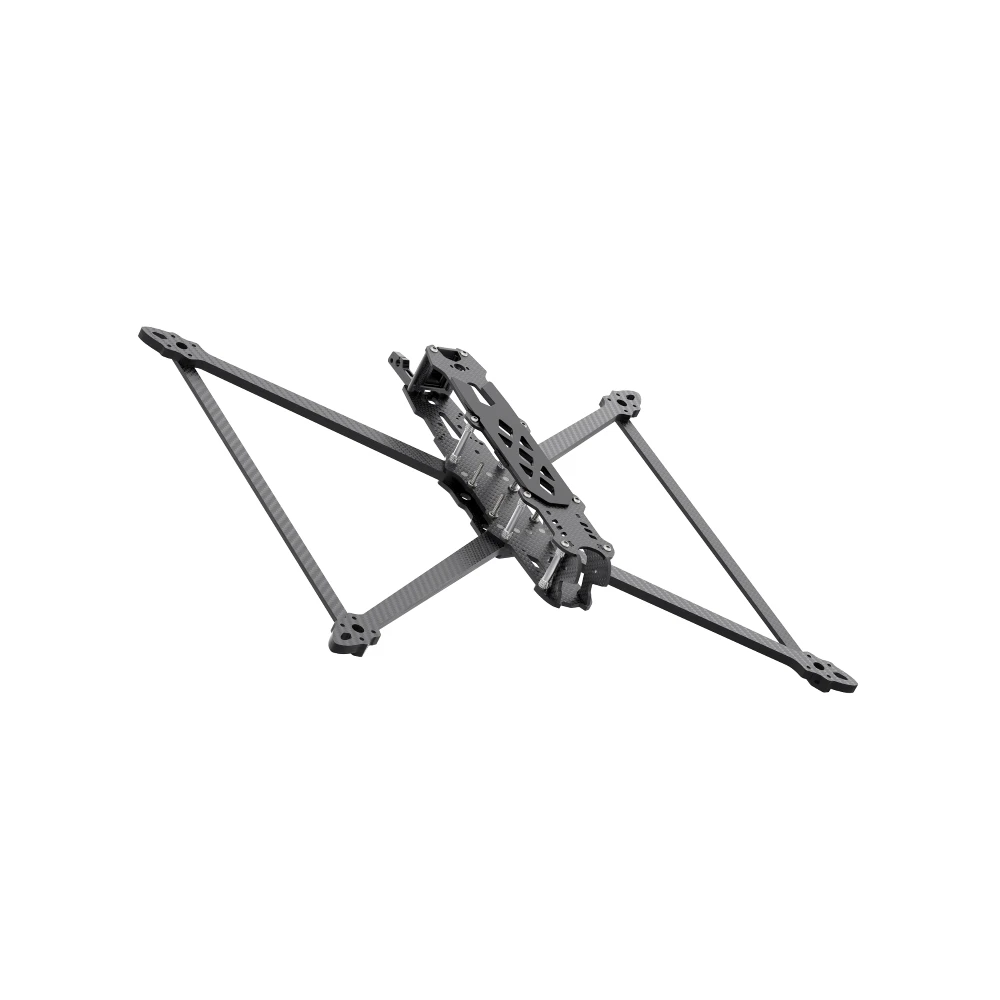

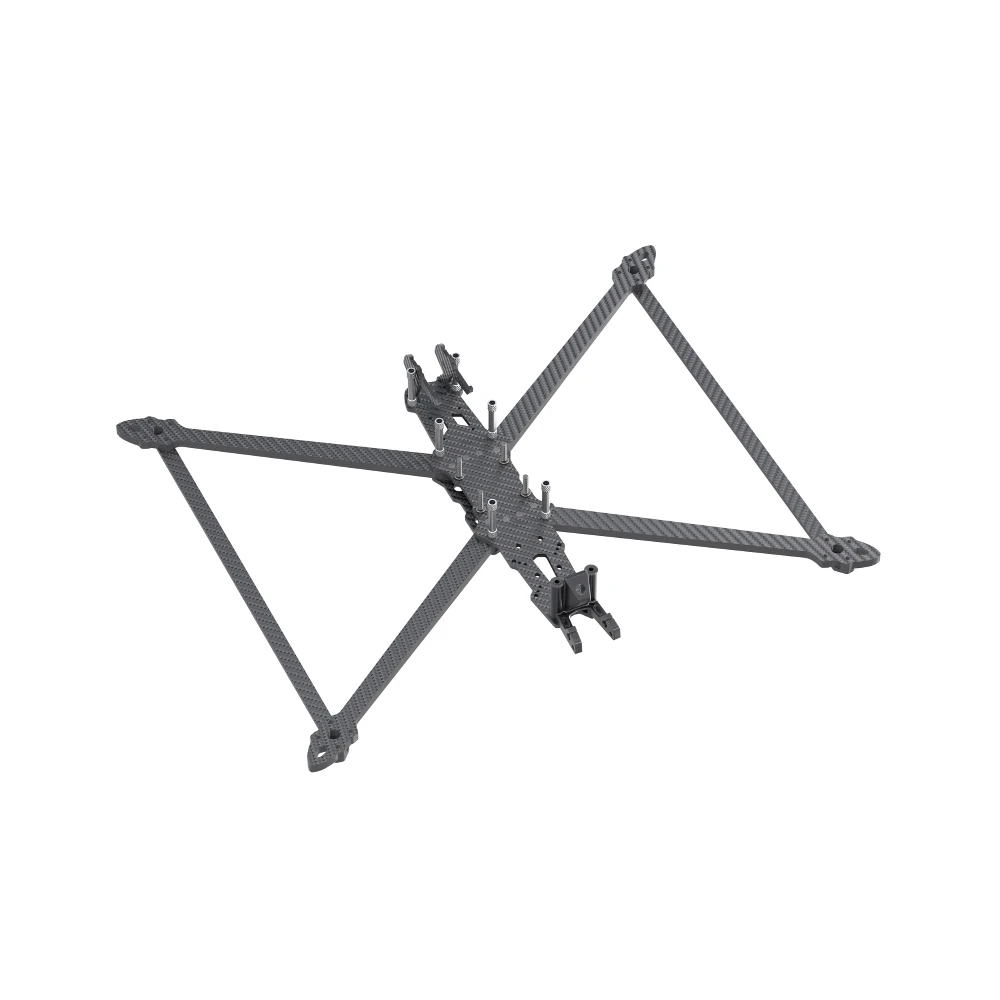

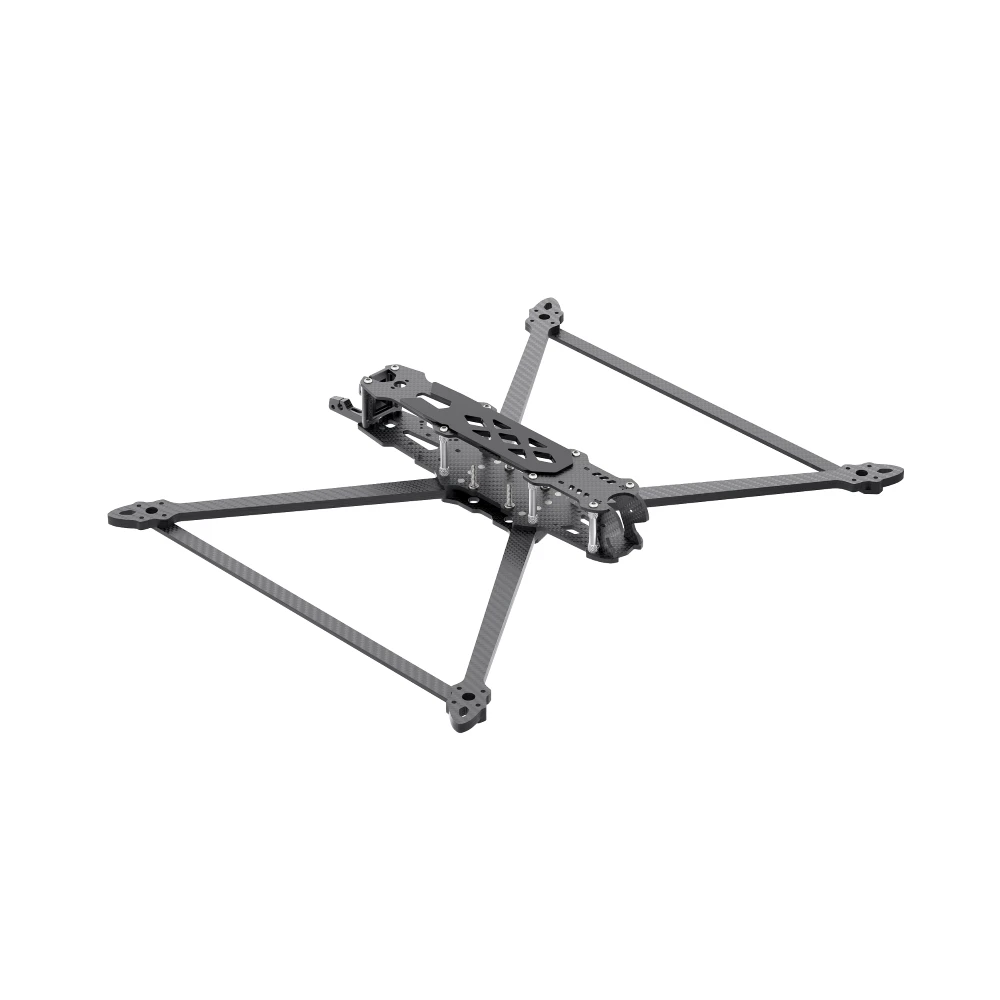

GEPRC GEP-Mark4-10 Long-Range 10-Inch Drone Frame
The GEPRC GEP-Mark4-10 is a robust 10-inch long-range drone frame engineered for heavy-load flight and extended endurance, accommodating large batteries and powerful propulsion systems. Its optimized structure ensures stability and reduced vibration for demanding cinematic or industrial UAV applications.
Features
- Robust 10-inch frame designed for heavy-load flight and long-range missions.
- 7mm thick carbon fiber arms provide exceptional rigidity and durability.
- Generous internal space for large FC stacks, VTX, and up to 6S 8000mAh LiPo.
- Supports 30.5×30.5mm, 25.5×25.5mm, and 20x20mm FC/VTX mounting patterns.
- Optimized for stability with reinforced arms to minimize gyroscope interference.
Out of stock
The GEPRC GEP-Mark4-10 frame is meticulously engineered for pilots and operators requiring a robust platform for heavy-load and extended-flight applications. Its design prioritizes both structural integrity and weight efficiency, enabling the integration of powerful propulsion systems like 3214 or 3115 900KV motors for payloads up to 3KG. This translates to prolonged flight times, making it ideal for cinematic, mapping, or industrial inspection drones where endurance is critical.
Featuring a meticulously designed structure, the GEP-Mark4-10 incorporates a lengthened fuselage, providing ample stacking space for flight controllers, video transmitters, and crucially, large-capacity batteries up to 6S 8000mAh. The frame’s two reinforced arms are strategically positioned to enhance longitudinal stability, effectively mitigating vibration transfer to the gyroscope, which is essential for smooth, stable footage and precise flight control. With a 7mm thick carbon fiber arm design and 30mm aluminum pillars, the frame ensures exceptional integral rigidity and toughness under demanding flight conditions.
Additional Information
| Dimensions | 21 × 11 × 6 cm |
|---|
