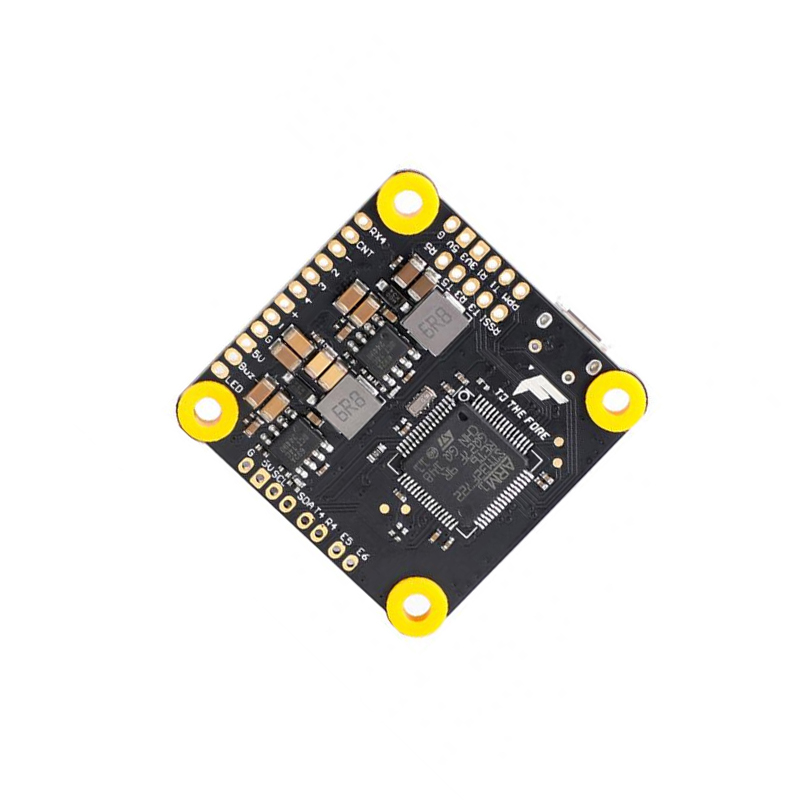

T-Motor F7 HD Flight Controller F7 HD

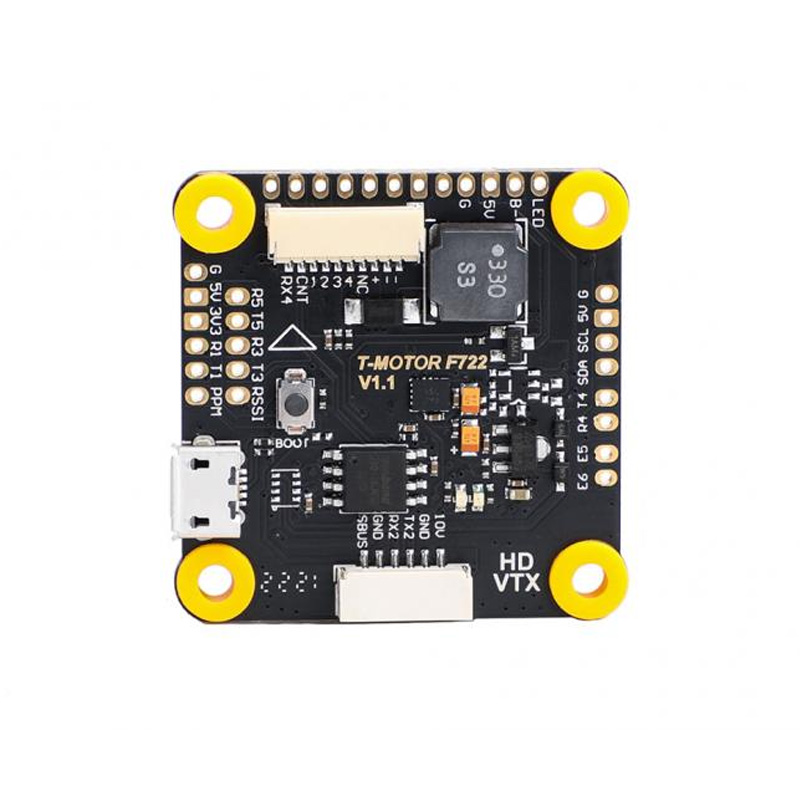

T-Motor F7 HD Flight Controller F7 HD - Image 2

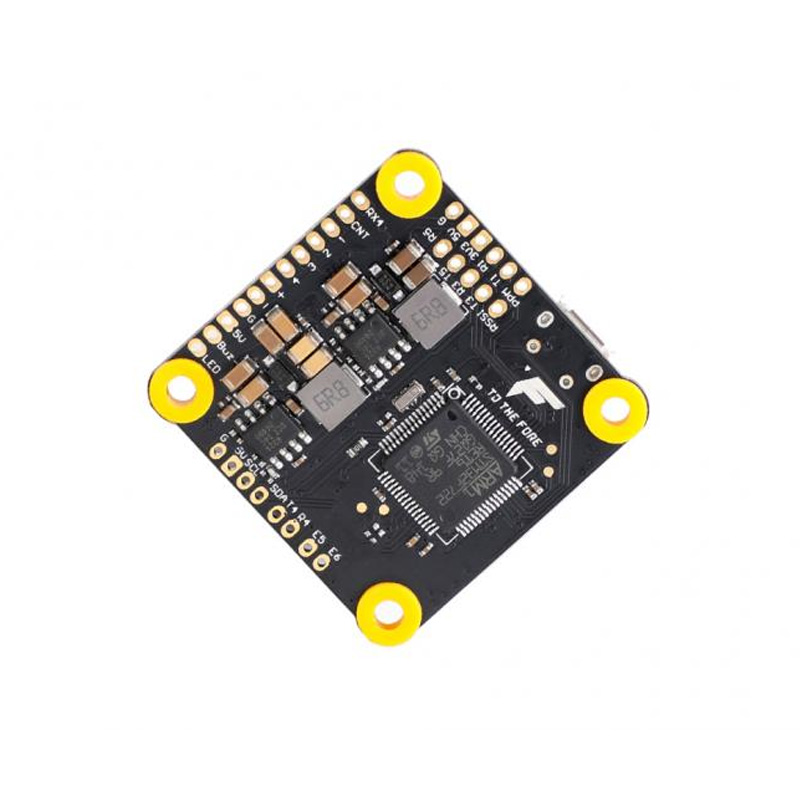

T-Motor F7 HD Flight Controller F7 HD - Image 3
SKU: DRFC-1964
📋 GST Invoice Available

T-Motor F7 HD Flight Controller F7 HD

₹9,019.00 (Inclusive of all taxes)
Out of Stock

The T-Motor F7 HD Flight Controller is engineered with an STM32F722 MCU for high-speed processing and features a dedicated plug-and-play connector and 10V 2A BEC for seamless integration with the DJI Digital FPV Air Unit, supporting up to 6S LiPo input.

Features

  • STM32F722 (F7) processor for high-speed flight calculations and responsive control.
  • Dedicated plug-and-play connector and 10V 2A BEC for DJI Digital FPV Air Unit.
  • 30.5×30.5mm mounting pattern compatible with standard FPV frames.
  • Designed for stack compatibility with T-Motor F55A ProII 4-in-1 ESCs.
  • Supports Betaflight firmware and 6S LiPo battery input voltage.

Out of stock

Description

The T-Motor F7 HD Flight Controller leverages the computational power of an STM32F722 microcontroller to deliver smooth, low-latency flight performance essential for FPV racing and freestyle. Its logical PCB layout simplifies wiring and integration into tight builds.

Engineered specifically for the DJI Digital FPV ecosystem, it includes a dedicated connector and a robust 10V 2A switching BEC to directly power the DJI Air Unit without external regulators, ensuring clean video transmission and reliable operation. The board’s 30.5×30.5mm mounting pattern ensures broad compatibility with modern FPV drone frames.

Key Features

  • DJI Air Unit Integration: Direct plug-and-play connector and onboard 10V 2A BEC eliminate the need for external wiring or voltage regulation for the DJI HD system.
  • High-Performance F7 Core: The STM32F722 MCU provides ample processing headroom for advanced Betaflight features, high PID loop rates, and complex flight modes.
  • Optimized Stack Design: Logical pinout and layout are designed for clean integration with the T-Motor F55A ProII 4-in-1 ESC, creating a compact and powerful propulsion stack.
  • Robust Power Delivery: Supports direct 2-6S LiPo input, with clean, filtered power rails for onboard sensors and peripherals.
  • Professional-Grade Construction: Features a multi-layer PCB with high-quality components for reliable operation in demanding flight conditions.

Applications

  • 5-inch and 6-inch FPV racing drones requiring high-performance flight control and DJI HD video.
  • Freestyle quadcopter builds where low-latency processing and reliable DJI Air Unit integration are critical.
  • Custom builds utilizing the T-Motor F55A ProII ESC stack for a streamlined, high-power propulsion system.

Technical Specifications

ProcessorSTM32F722
Mounting Pattern30.5 x 30.5 mm
Input Voltage2-6S LiPo
DJI Air Unit BEC10V @ 2A
Weight11 g
FirmwareBetaflight

Frequently Asked Questions

Is this flight controller compatible with the DJI FPV Air Unit and Vista?

Yes, it is specifically designed for the DJI Digital FPV System. It includes a dedicated plug-and-play connector and an integrated 10V 2A BEC to power a DJI Air Unit directly. It is also compatible with the DJI FPV Vista unit, though the Vista's power requirements are lower.

What is the maximum input voltage (LiPo cell count) supported?

The T-Motor F7 HD Flight Controller supports a direct input voltage range from 2S to 6S LiPo batteries. Always ensure your power wiring and connectors are rated for the maximum current and voltage of your chosen battery pack.

Can this FC be stacked with a T-Motor F55A ESC?

Yes, the board's layout and pinout are optimized for seamless stacking with the T-Motor F55A ProII 4-in-1 Electronic Speed Controller. This creates a compact, integrated flight controller and ESC stack, simplifying wiring and saving space in your build.

What firmware does this flight controller run?

This controller is pre-flashed with Betaflight firmware, which is the standard for FPV drone flight control. It supports the full feature set of Betaflight, including advanced tuning, Blackbox logging, and integration with various peripherals via its UART and I2C ports.

Package Includes

  • 1 x T-Motor F7 HD Flight Controller

Additional Information

Weight 0.026 kg
Dimensions 7 × 7 × 3 cm
