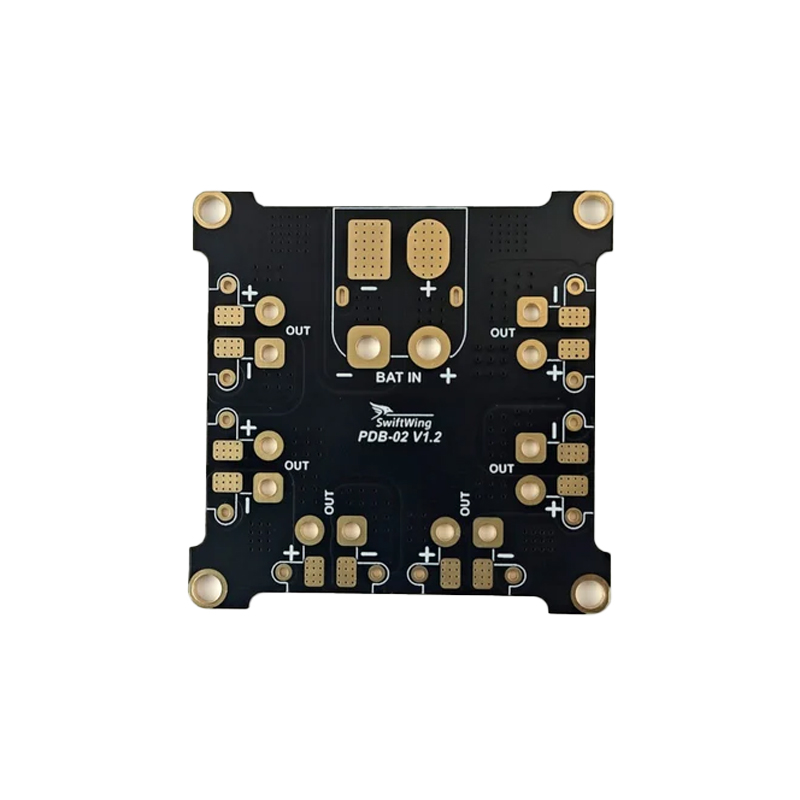

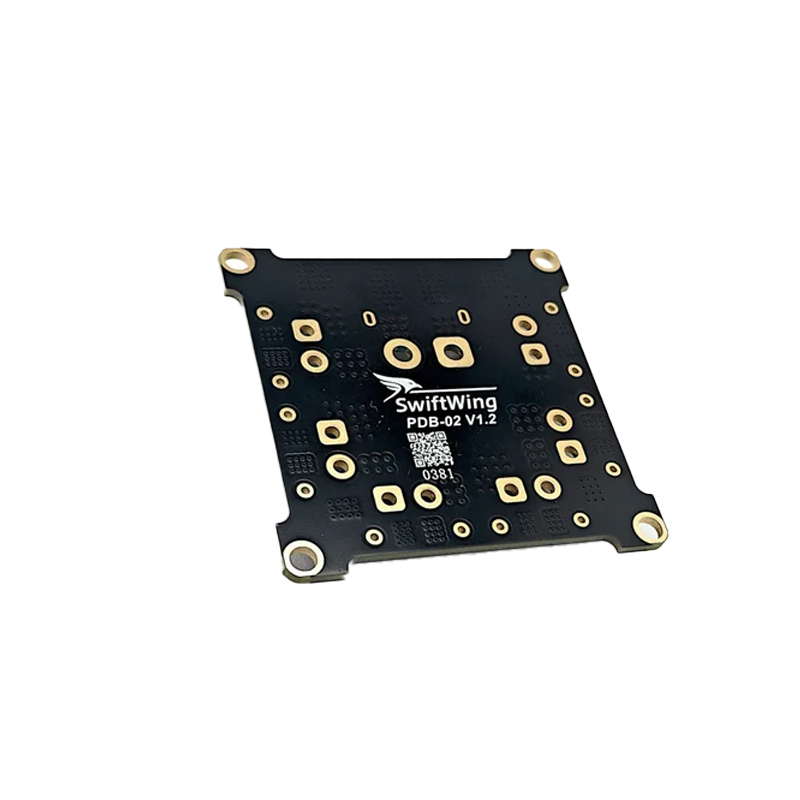

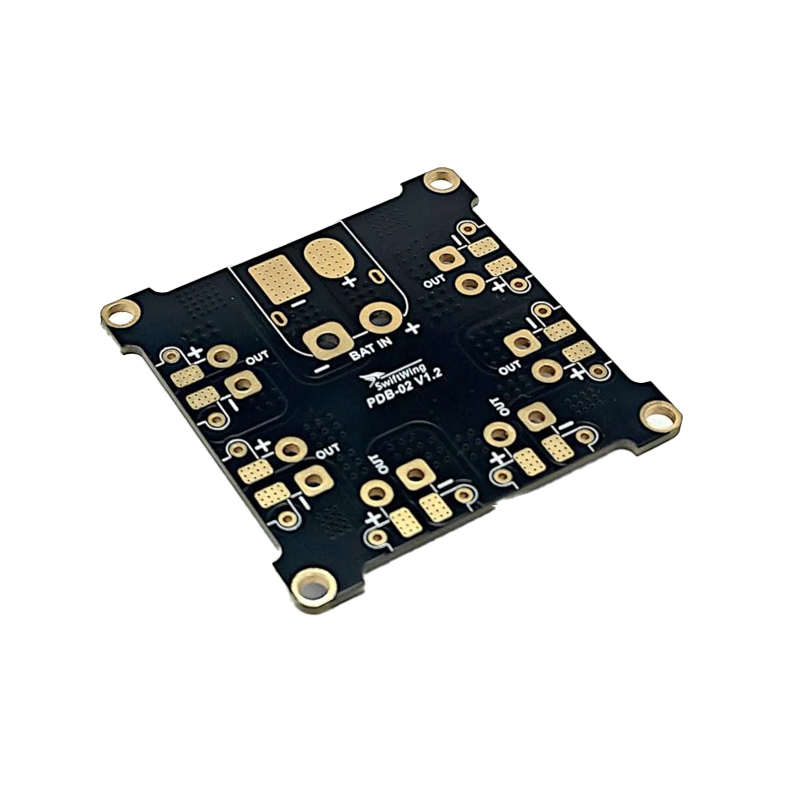

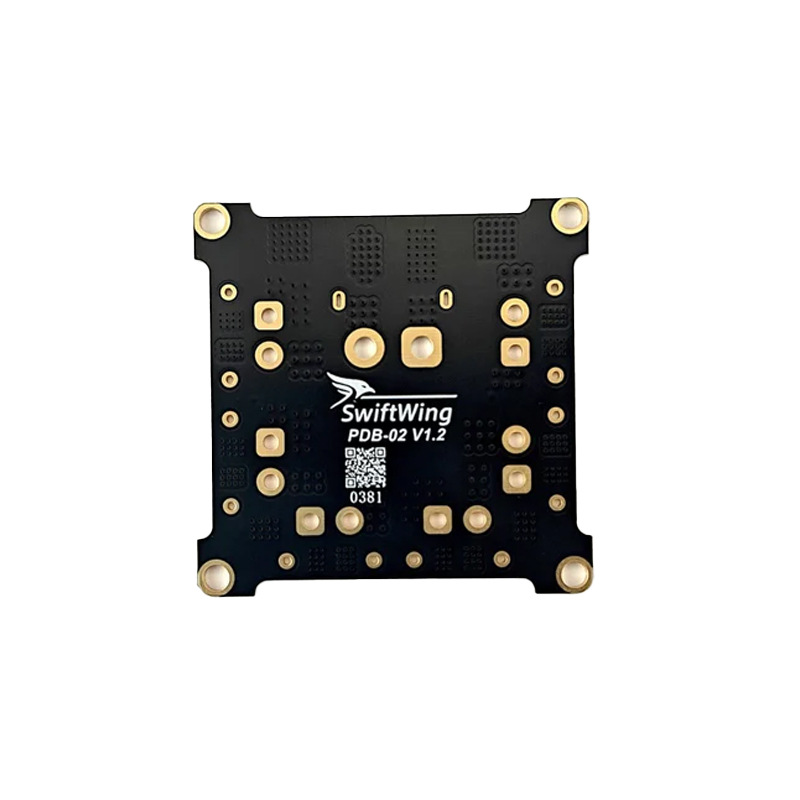

SwiftWing PDB02 Direct Power Distribution Board 3-6S
The SwiftWing PDB02 is a robust direct power distribution board designed for high-current UAV and multirotor applications, supporting 3S to 6S LiPo input. It efficiently distributes up to 200A continuous current to ESCs and components without voltage regulation, ensuring reliable performance for demanding flight systems.
Features
- Supports 3S-6S LiPo input for versatile power integration (11.1V–25.2V).
- Handles up to 200A continuous current for high-performance setups.
- Features a durable 4-layer, 2 oz copper PCB for superior thermal management and reliability.
- Compact 50x50mm form factor with M3 mounting holes (45mm spacing).
Out of stock
The SwiftWing PDB02 is engineered as a robust power distribution board for high-current UAV and multirotor systems, providing direct power distribution without integrated voltage regulation. It is compatible with 3S to 6S LiPo battery inputs, making it suitable for a wide array of FPV and industrial drone platforms. Its design emphasizes efficient power delivery and reliability for demanding applications.
Constructed with a 4-layer PCB featuring 2 oz copper, the PDB02 is capable of handling up to 200A continuous current. This robust construction ensures excellent thermal dissipation and structural integrity under high loads, critical for performance and longevity. The board includes versatile solder pad footprints for XT30 and XT60 connectors, offering builders flexibility in configuring their power system according to specific component requirements.
Measuring 50x50x1.6mm and weighing approximately 9g, this PDB integrates seamlessly into various drone frames. It is an ideal solution for racing drones requiring direct power, long-range UAVs needing robust current handling, and industrial multirotor systems where dependable power distribution is paramount.
Additional Information
| Dimensions | 5 × 5 × 0.16 cm |
|---|
