Vector Technics BEC 5V 2A DC-DC Converter (6S-12S)
Vector Technics BEC 5V 2A DC-DC Converter (6S-12S) - Image 2
SKU: DRFC-0276
📋 GST Invoice Available

Vector Technics BEC 5V 2A DC-DC Converter (6S-12S)

₹1,449.00 (Inclusive of all taxes)
Out of Stock

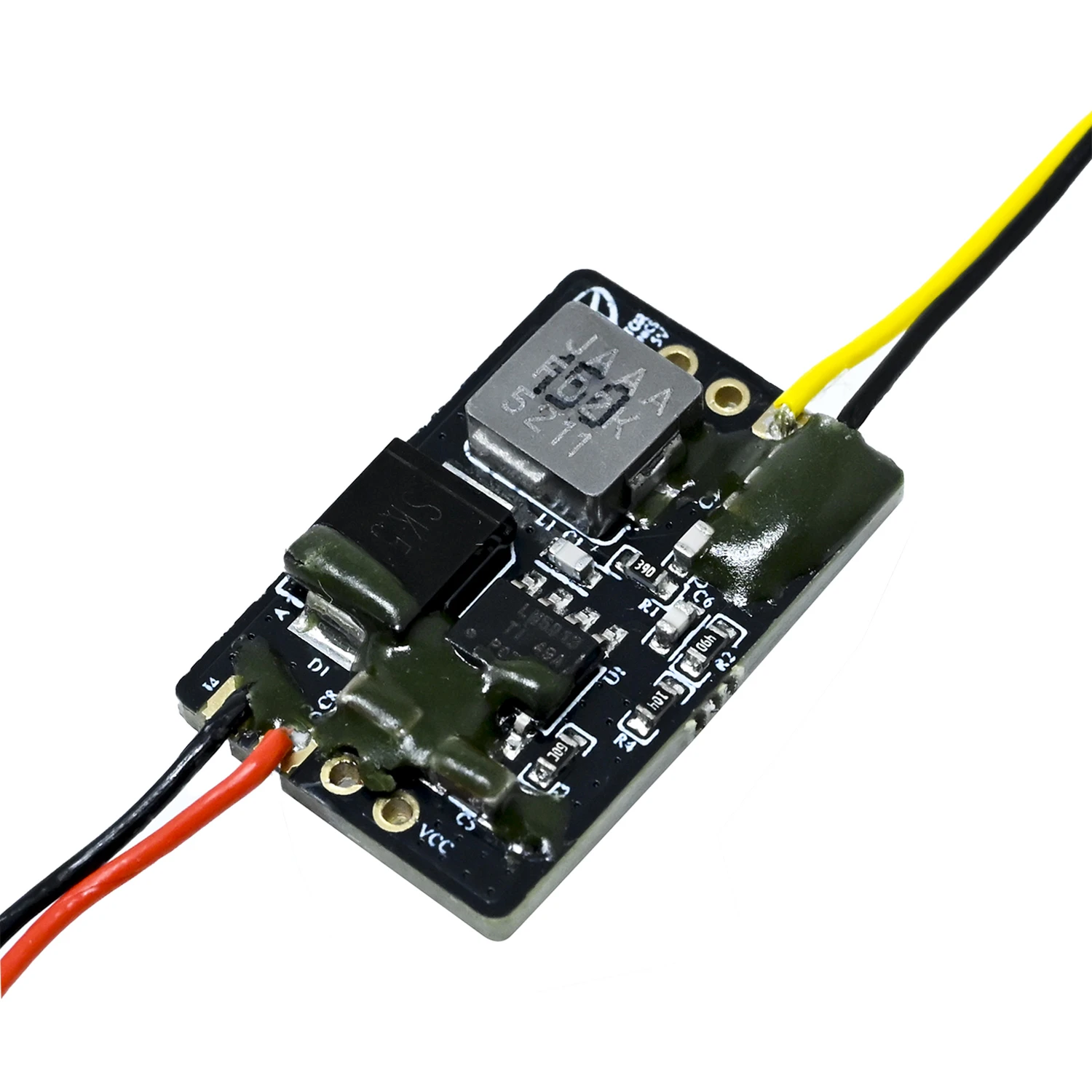

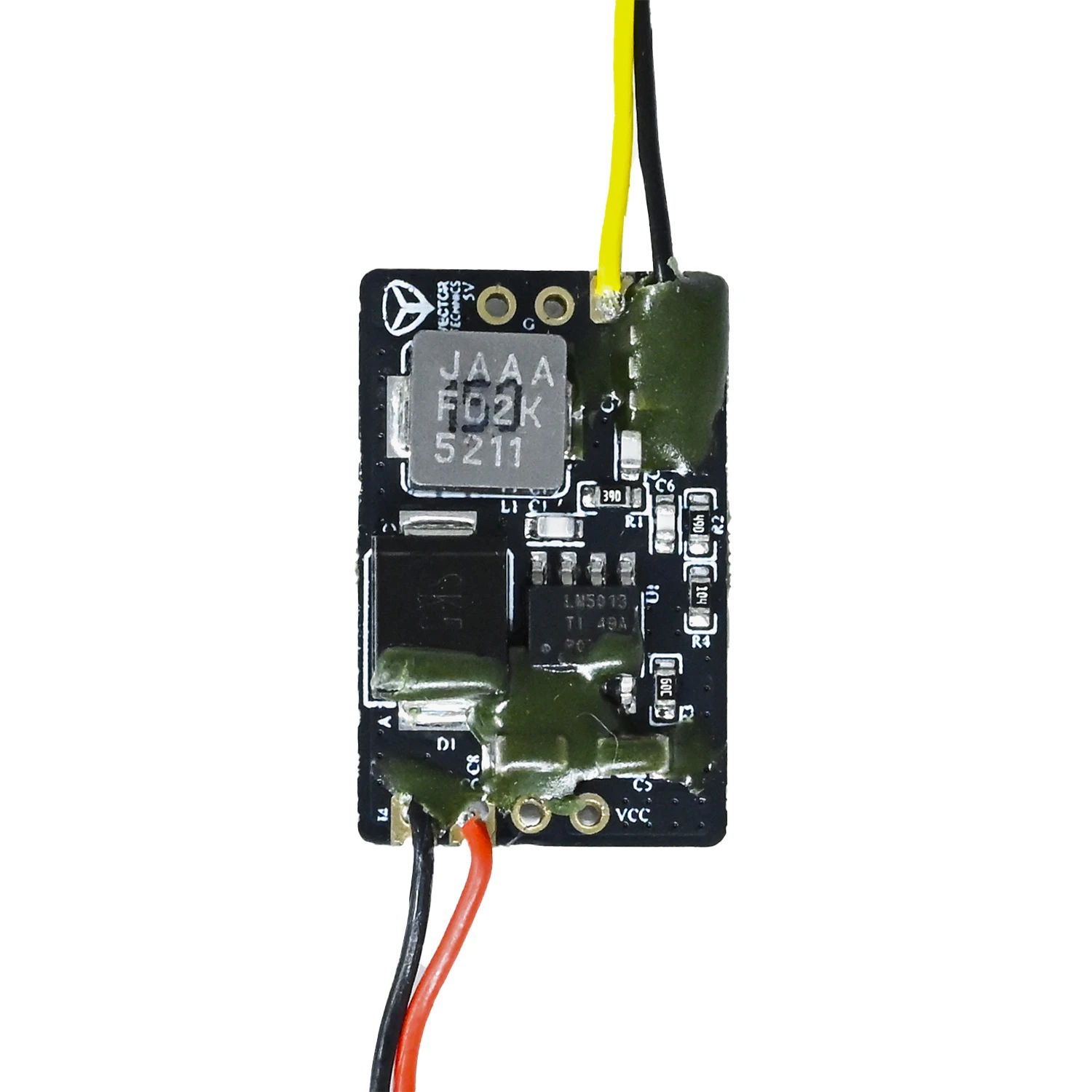

This Vector Technics BEC module provides a stable 5V at 2A output from a wide 15-100V input, ideal for powering sensitive electronics on 6S to 12S drone systems. Its high efficiency and compact design ensure reliable power conversion for demanding UAV applications.

Features

  • Wide 15-100V (6S-12S) input voltage range for high-voltage setups.
  • Delivers stable 5V output at 2A for critical flight components.
  • High 88% efficiency with robust under-voltage and short-circuit protection.
  • Ultra-compact 25x16x1.67mm footprint for easy integration into tight spaces.

Out of stock

Description

This power module features an input voltage range of 15-100V and delivers a stable 5V output at 2A. With an efficiency of 88%, it ensures reliable performance with a full load current of 0.47A at 48V. Its compact size of 25x16x1.67 mm allows easy integration into various systems.

The module includes input under voltage protection at <13.2V to safeguard connected devices from power fluctuations, alongside short circuit protection for enhanced operational security. Designed for high-voltage drone applications, this BEC ensures consistent and clean power delivery to flight controllers, GPS units, or FPV systems.

Key Features

  • Wide Input Voltage Range: Operates from 15V to 100V (equivalent to 6S-12S LiPo).
  • Stable 5V Output: Provides a consistent 2A current for sensitive electronics.
  • High Conversion Efficiency: Achieves 88% efficiency, minimizing heat and power loss.
  • Integrated Protections: Features input under-voltage (<13.2V) and short-circuit protection.
  • Compact & Lightweight Design: Measures only 25x16x1.67 mm for easy integration.
  • Low Full Load Current: Efficient operation with only 0.47A current draw at 48V.

Applications

  • Powering Flight Controllers & GPS Modules in industrial UAVs.
  • Regulating voltage for FPV systems and accessories on 6S-12S platforms.
  • Providing stable 5V power for auxiliary sensors or payload electronics.
  • Integration into fixed-wing aircraft requiring high-voltage power conversion.

Technical Specifications

Input Voltage Range15-100V DC (6S-12S LiPo)
Output Voltage5V
Output Current2A
Efficiency88%
Input Under Voltage Protection<13.2V
Short Circuit Current110 mA
Full Load Current (@48V)0.47A
Dimensions (LxBxH)25 x 16 x 1.67 mm

Frequently Asked Questions

What is the input voltage range of the Vector Technics BEC and what types of batteries does it support?

The Vector Technics BEC supports a wide input voltage range from 15V to 100V DC. This translates to compatibility with high-voltage battery configurations, specifically 6S up to 12S LiPo packs, making it suitable for larger, industrial, or long-range UAV platforms requiring robust power solutions.

What are the key output specifications and what devices can it power?

This BEC provides a stable 5V output at a continuous current of 2A. This is sufficient to reliably power critical low-voltage drone components such as flight controllers, GPS modules, FPV cameras, video transmitters, and various auxiliary sensors, ensuring consistent performance during flight.

How does the Vector Technics BEC protect connected electronics from power issues?

The Vector Technics BEC integrates essential protection mechanisms including input under-voltage protection, which activates below 13.2V, preventing damage from critically low battery levels. It also features short-circuit protection with a limit of 110mA, safeguarding against wiring faults and ensuring system stability.

What are the physical dimensions and considerations for mounting this BEC?

The Vector Technics BEC boasts an ultra-compact form factor, measuring just 25mm in length, 16mm in width, and 1.67mm in height. Its small footprint allows for flexible integration into tight spaces within drone frames, making it ideal for custom builds where space and weight are at a premium.

Package Includes

  • 1 x Vector Technics BEC 5V 2A DC-DC Converter

Additional Information

Dimensions 2.5 × 1.6 × 0.167 cm
