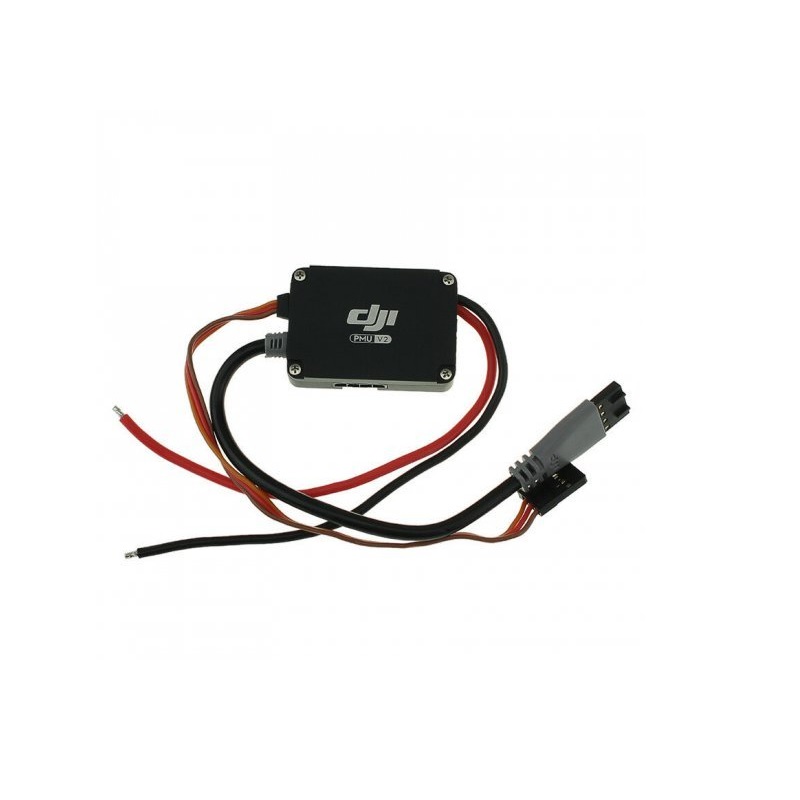

DJI NAZA V2 Power Module | 2-6S BEC & Voltage Monitor

The primary function is to provide clean, regulated 5V/3A power to the DJI NAZA V2 flight controller from a LiPo battery. It also integrates critical battery voltage and current consumption monitoring capabilities, allowing the flight controller to accurately track remaining power and estimate flight time for enhanced operational safety and awareness.

This power module is designed to be compatible with 2-cell to 6-cell (2S-6S) LiPo batteries. This means it can accept an input voltage range from 7.4V up to 25.2V DC. This broad compatibility allows for its use in various multirotor setups, ensuring flexible power solutions for different drone configurations.

The module continuously measures both the battery's voltage and current consumption in real-time. These signals are transmitted to the NAZA V2 flight controller, which then processes this data to calculate the remaining battery capacity and provide accurate estimates of the drone's remaining flight time. This real-time feedback is crucial for mission planning and safe landings.

While this module provides a standard 5V BEC output, its primary design and connector pinout are specifically tailored for seamless integration with the DJI NAZA V2 flight controller. Although it might provide power, full telemetry functionality and plug-and-play compatibility with other flight control systems are not guaranteed and would require custom wiring and configuration.
