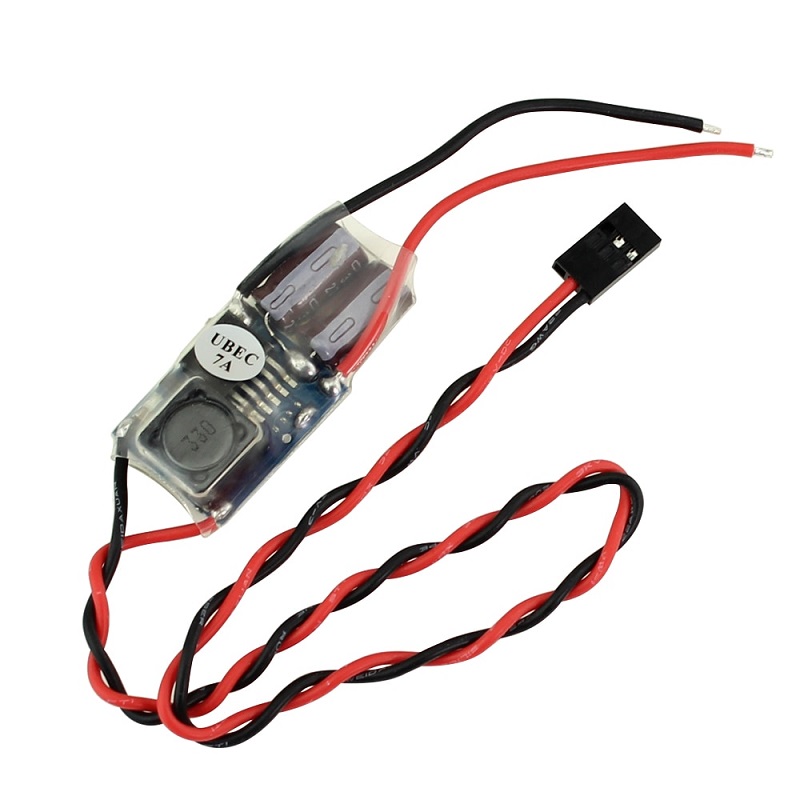

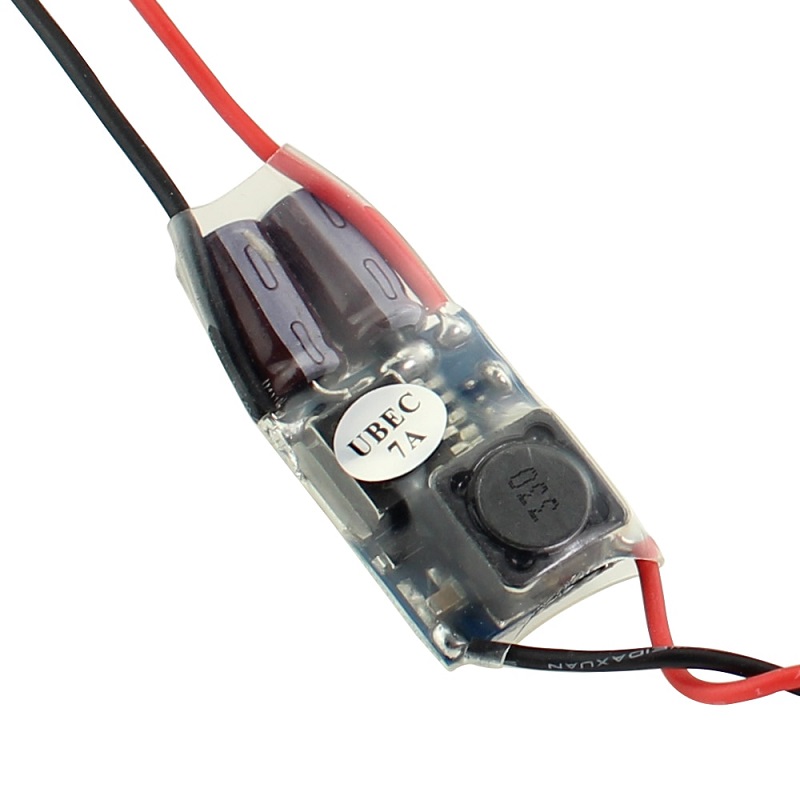

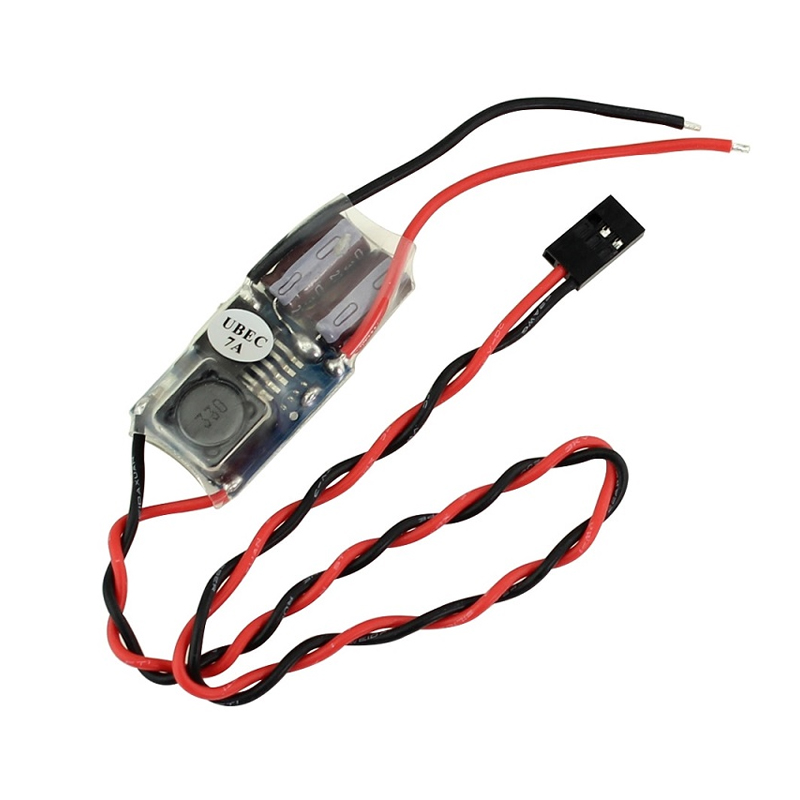

UBEC-5V/7A 2-8S 7A DC-DC Voltage Regulator
This UBEC-5V/7A switching regulator efficiently provides a stable 5.25V output at 7A continuous current from a wide 2-8S LiPo input, ensuring reliable power for receivers, servos, and FPV systems.
Features
- Wide input voltage compatibility: 5.5V-35V (2S-8S LiPo).
- Delivers continuous 7A output current at a stable 5.25V.
- Handles instantaneous current peaks up to 7.5A for 20 seconds.
- High-efficiency switching regulator design minimizes heat generation.
- Ideal for powering flight controllers, FPV gear, and multiple servos in RC aircraft.
Out of stock
The UBEC is an essential external switching power supply regulator, designed to operate independently from the brushless ESC. It efficiently converts high input voltages ranging from 5.5V to 35V (compatible with 2S to 8S LiPo batteries) into a stable 5.25V DC output, providing reliable power for various onboard electronics. This dedicated power solution safeguards sensitive components from voltage fluctuations and high current demands, ensuring consistent performance.
With a robust 7A continuous output current, this UBEC can easily power critical systems such as receivers, gyroscopes, and four or more standard servos simultaneously. Its high current capability makes it particularly suitable for demanding applications in remote model helicopters, FPV cameras, GoPro brushless gimbals, and large fixed-wing aircraft that utilize high voltage power systems and multiple high-drain servos. It is also specially optimized for FPV image transmission, helping to ensure a clean and stable video signal.
Additional Information
| Dimensions | 5 × 3 cm |
|---|
