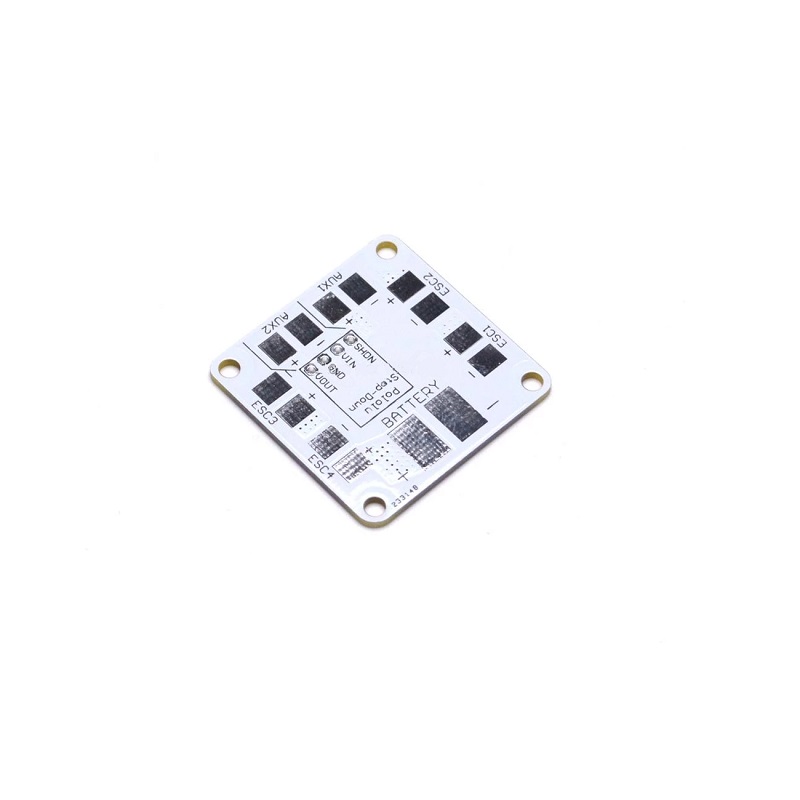

QAV-XS 222 FPV Racing Quadcopter PDB

This PDB centralizes power from your LiPo battery to all four ESCs and other components on the QAV-XS 222mm FPV racing quadcopter. It ensures a stable, dedicated power source for each ESC, optimizing current flow. This simplifies wiring, improving reliability and performance during high-stress FPV flights.

Mount the PDB onto your QAV-XS 222 frame using standoffs, usually between the bottom plates. Solder the main battery lead to its designated pads. Next, solder each ESC's positive and negative power wires individually to their respective pads on the PDB. This creates a clean, centralized power system for efficient, reliable operation.

This PDB acts as a basic power distribution board, primarily splitting the main battery voltage to the ESCs. It does not appear to include integrated voltage regulation or BEC outputs. For regulated 5V or 12V power for your flight controller, FPV camera, or VTX, a separate BEC module or ESC with a built-in BEC would be required.
