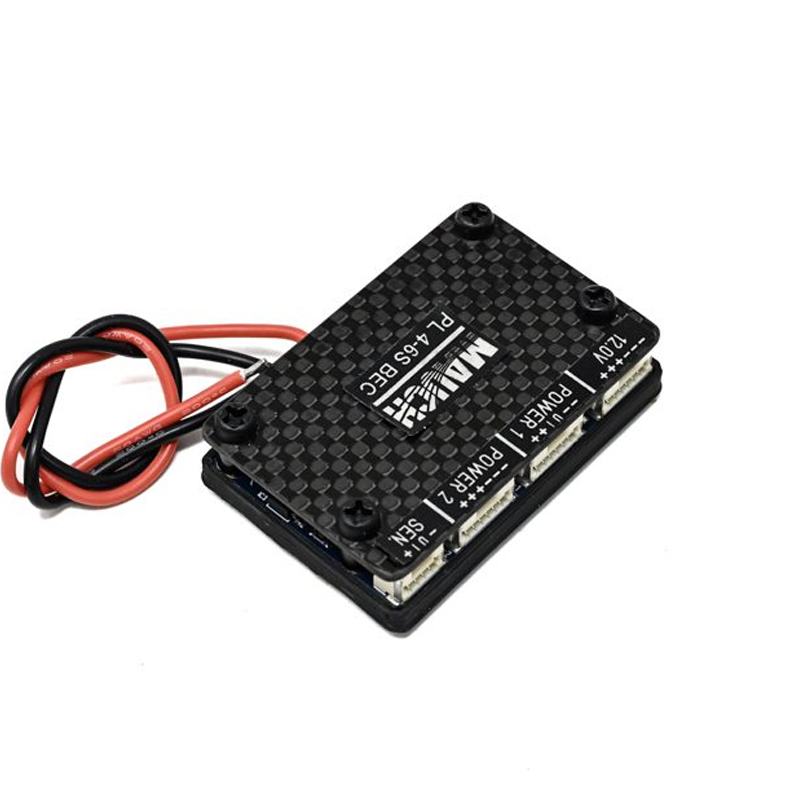

Mauch 017 PL 4-6S BEC 2x5.35V 1x12.0V Regulator
Mauch 017 PL 4-6S BEC 2x5.35V 1x12.0V Regulator - Image 2
SKU: DRFC-0293
📋 GST Invoice Available

Mauch 017 PL 4-6S BEC 2x5.35V 1x12.0V Regulator

₹9,189.00 (Inclusive of all taxes)
Out of Stock

The Mauch 017 PL 4-6S BEC provides stable multi-voltage regulation, offering two 5.35V/3A and one 12.0V/3A output from a 4-6S LiPo, ensuring clean power for flight controllers and critical avionics. It includes an additional 5.00V LDO for sensors and features robust polarity protection against voltage spikes.

Features

  • Optimized for 4-6S LiPo input, providing reliable power up to 28V.
  • Delivers dual 5.35V/3A and a dedicated 12.0V/3A output for diverse UAV component powering.
  • Features an ultra-stable 5.00V ±0.03V LDO specifically for sensitive sensor boards and monitoring modules.
  • Built-in reverse polarity protection and TDK capacitors safeguard against voltage spikes and ensure operational longevity.

Out of stock

Description

The Mauch 017 PL 4-6S BEC is a highly efficient, multi-output Battery Elimination Circuit designed for advanced UAVs, robotics, and high-reliability embedded systems. Engineered to operate flawlessly from a 4-6S LiPo power source, it maintains stable voltage delivery across its three independent, tightly regulated outputs: two 5.35V rails and one 12.0V rail, each capable of supplying a continuous 3A load. This robust power management solution ensures exceptional voltage stability with minimal ripple, crucial for noise-sensitive flight controllers and sophisticated avionics.

Beyond its primary outputs, the unit incorporates an additional precision 5.00V ±0.03V LDO rail. This dedicated output is ideal for powering sensor hubs or PL-series monitoring modules, providing isolated and exceptionally clean power to critical low-power components. Constructed with high-grade TDK capacitors for superior surge suppression and featuring comprehensive reverse-polarity protection, the Mauch 017 utilizes secure Molex Clik-Mate connectors for reliable integration within complex systems. Its compact and lightweight design, complemented by onboard status LEDs, makes it an essential component for dependable power delivery.

Key Features

  • Supports wide 4-6S LiPo input voltage range, up to 28V maximum.
  • Provides two independent 5.35V/3A regulated outputs for main avionics.
  • Offers one independent 12.0V/3A regulated output for specific peripherals.
  • Integrated LDO power supply delivers a precise 5.00V ±0.03V for sensitive sensor modules.
  • Features robust input polarity protection to prevent damage from incorrect wiring.
  • Utilizes high-quality TDK capacitors for effective voltage spike suppression, enhancing system reliability.
  • Equipped with 3 blue "ON" LEDs for clear visual power status indication.
  • Employs reliable Molex Clik-Mate connectors for secure and vibration-resistant electrical connections.

Applications

  • Advanced FPV and cinematic drones requiring multiple stable voltage rails.
  • Autonomous UAV platforms and industrial drones for precise sensor power.
  • Robotics and embedded systems demanding high-reliability power regulation.
  • Fixed-wing aircraft and VTOL setups needing efficient BEC functionality.
  • Custom drone builds integrating various peripherals and flight controllers.

Technical Specifications

ModelMauch 017 PL
Input Voltage4-6S LiPo (14.8V - 25.2V nominal), max 28V
Output 1 & 22x 5.35V @ 3A continuous
Output 31x 12.0V @ 3A continuous
LDO Output5.00V ±0.03V
Voltage Ripple~10mV (0.2%)
Operating Temperature-20°C to 60°C
ConnectorsMolex Clik-Mate
Dimensions (L x W)110mm x 55mm
Weight20g

Frequently Asked Questions

What is the primary function of the Mauch 017 PL 4-6S BEC?

The Mauch 017 PL 4-6S BEC acts as a high-efficiency power regulator, converting a 4-6S LiPo input into multiple stable outputs. It provides two 5.35V rails and one 12.0V rail, along with a dedicated 5.00V LDO, ensuring clean and reliable power for flight controllers, sensors, and various UAV components.

What protection features does this BEC offer for drone applications?

This BEC includes robust input polarity protection, safeguarding against accidental reverse voltage connections during wiring. Additionally, it incorporates high-grade TDK capacitors to effectively suppress voltage spikes and electrical noise, which is critical for maintaining stable power delivery to sensitive avionics and ensuring the longevity of connected drone components.

Can the 5.00V LDO output power a flight controller directly?

The 5.00V LDO output is specifically designed for sensitive sensor boards like Mauch PL-series modules or sensor hubs, providing isolated and ultra-clean power. While it can power low-current devices, it is not intended for high-current applications like main flight controller power. Flight controllers should typically be powered by one of the 5.35V outputs for optimal performance.

What type of connectors are used for the outputs and how are they managed?

The Mauch 017 PL BEC uses Molex Clik-Mate connectors for its output rails. These connectors are known for their secure locking mechanism and resistance to vibration, ensuring reliable electrical connections crucial in dynamic drone environments. The package includes a sensor cable with a 4-pin Molex Clik-Mate for direct integration.

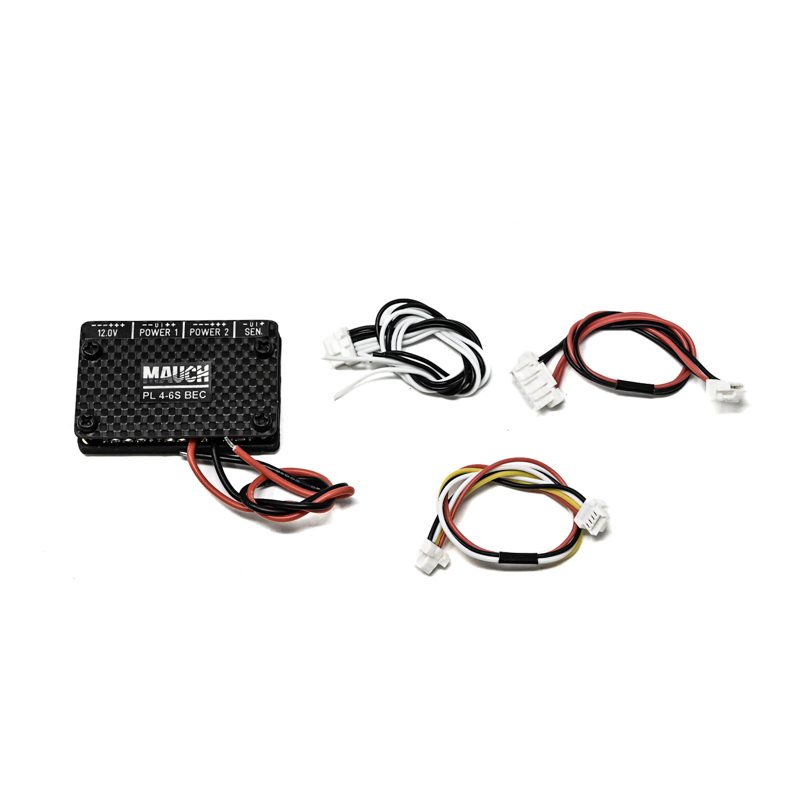

Package Includes

  • 1x Mauch 017 PL 4-6S BEC (2x 5.35V, 1x 12.0V)
  • 1x Sensor cable (040) Molex Clik-Mate 4-pin, 150mm length

Additional Information

Dimensions 11 × 5.5 cm
