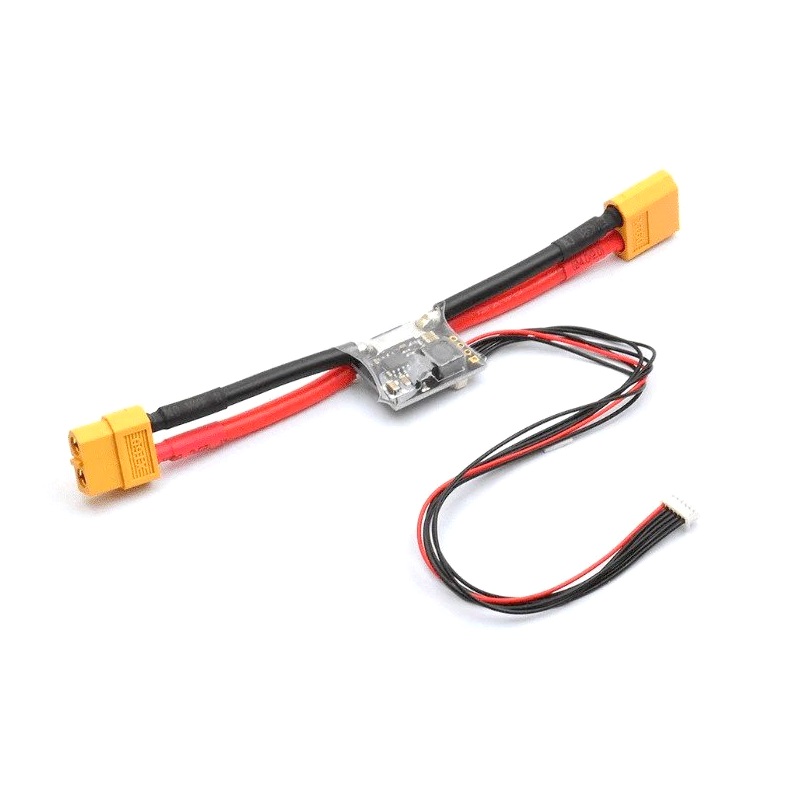

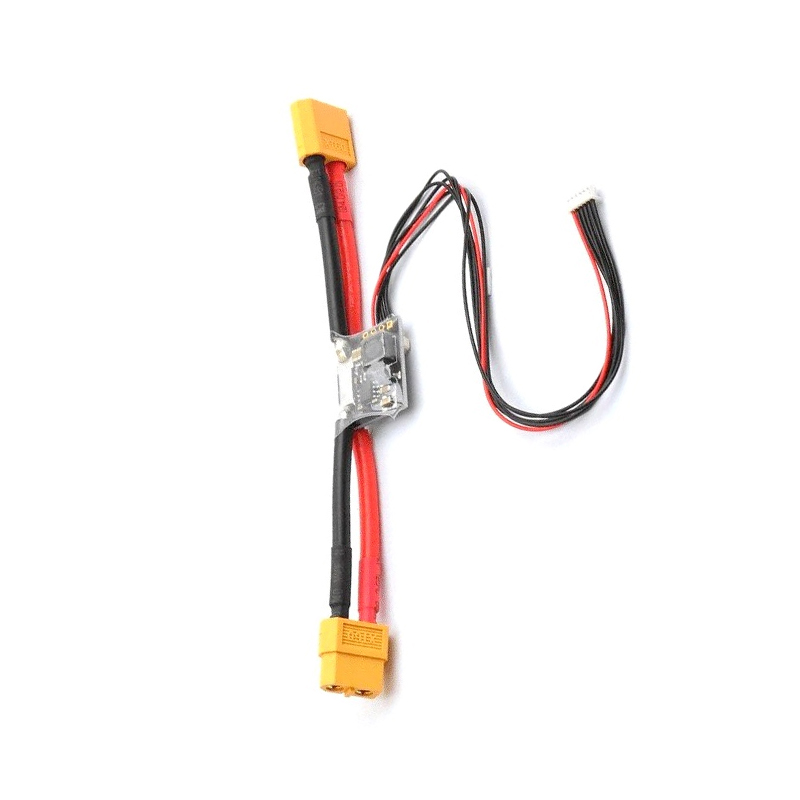

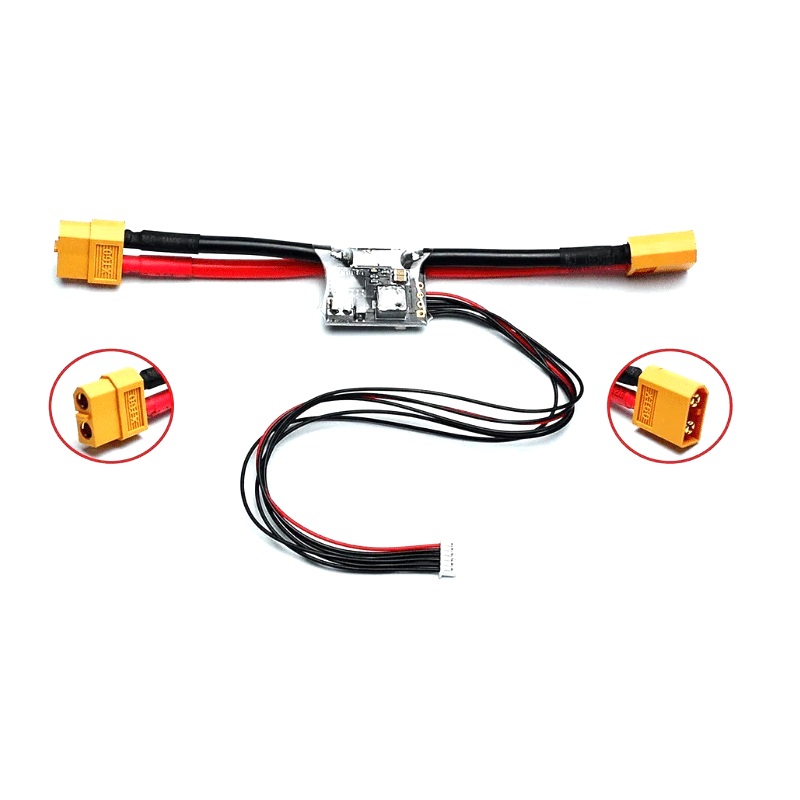

APM/Pixhawk Power Module w/ BEC 3A XT60 28V 90A
This APM/Pixhawk Power Module provides a clean 5.3V @ 3A output via its integrated BEC, capable of handling 2-6S LiPo input up to 28V and sensing currents up to 90A. It ensures stable power for your flight controller and essential peripherals with an XT60 connector.
Features
- Integrated BEC outputs 5.3V at 3A for stable FC power.
- Supports 2S-6S LiPo input with a maximum voltage of 28V.
- Accurate current sensing up to 90 Amperes.
- Equipped with a reliable XT60 connector for battery input.
- Specifically designed for APM 2.5/2.6/2.8 and Pixhawk flight controllers.
Out of stock
The APM/Pixhawk Power Module is an essential component for delivering clean, regulated power to your autonomous flight controller setup. It integrates a robust Battery Eliminator Circuit (BEC) that steps down the main LiPo battery voltage to a steady 5.3V at 3A, effectively powering the flight controller, RC receiver, and low-power accessories like GPS modules and telemetry radios.
This module also features precise current and voltage sensing capabilities, providing real-time data to your APM 2.5, 2.6, 2.8, or Pixhawk system. With support for 2S to 6S LiPo batteries, it can handle input voltages up to 28V and accurately measure current consumption up to 90A, making it suitable for a wide range of multirotor and fixed-wing UAV applications. Its XT60 connector ensures a secure and high-current connection to your flight battery, while the 6-position cable simplifies direct integration with the FC’s ‘PM’ port.
It’s important to note that while this power module provides critical power and data for the flight controller ecosystem, it is not designed to power high-current components such as servos. For servo power, it is recommended to utilize a dedicated BEC from your Electronic Speed Controller (ESC) or a separate, more powerful BEC solution to prevent overloading the module.
