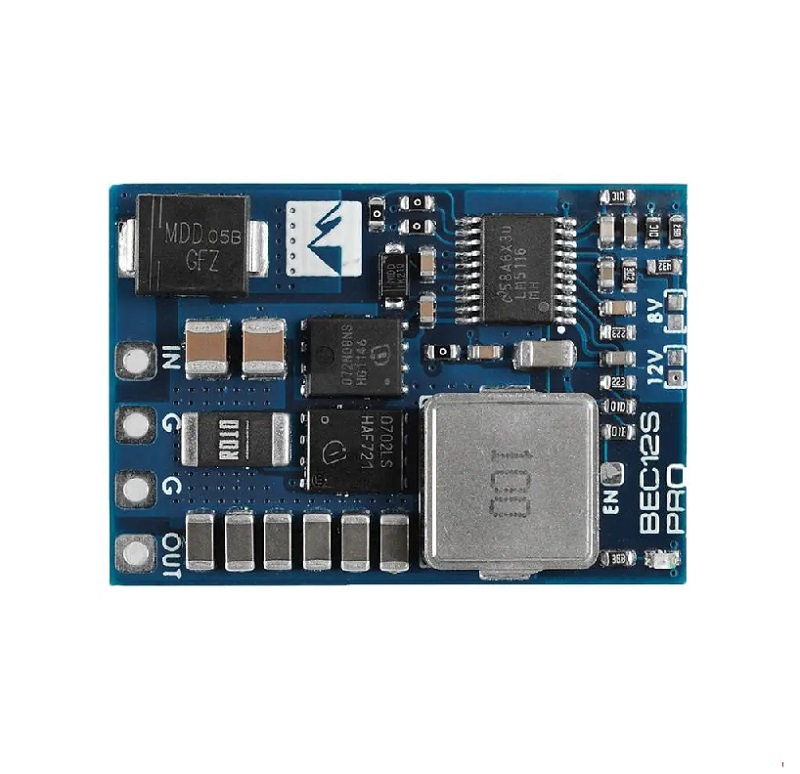

Matek Systems 12S Pro BEC - 9-55V Input, 5A Output
The Matek Systems 12S Pro BEC is a robust voltage regulator designed for high-voltage drone systems, accepting a wide 9-55V input to deliver a stable 5.2V, 8V, or 12V output at up to 5A. Ideal for powering flight controllers, FPV gear, and other peripherals on 3S-12S LiPo setups, ensuring reliable power delivery and system stability.
Features
- Wide 9-55V (3-12S LiPo) input range with TVS protection for high-voltage applications.
- Selectable 5.2V, 8V, or 12V regulated output for versatile component power.
- Delivers a continuous 5A output current, with 9A peak for demanding loads.
- Synchronous buck regulator design ensures high efficiency (88-96%) and minimal heat.

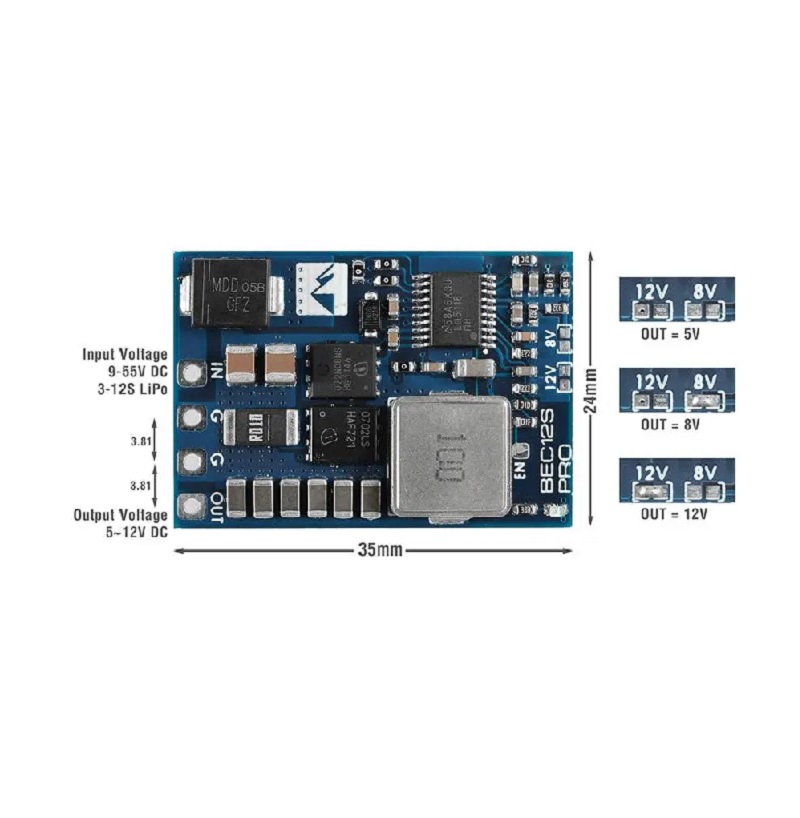

- Compact 35x24x5.5mm footprint and lightweight 5g design for easy integration.
Out of stock
The Matek Systems 12S Pro BEC (Battery Eliminator Circuit) is engineered to provide reliable and stable power conversion for advanced drone and UAV platforms operating on high-voltage systems. With a broad input voltage range of 9V to 55V, it directly supports up to 12S LiPo batteries, making it suitable for industrial drones, long-range FPV setups, and heavy-lift applications. Its robust design incorporates TVS protection against voltage spikes, ensuring the longevity and safety of your onboard electronics.
Utilizing a synchronous switching step-down (buck) regulator, the 12S Pro BEC achieves high power conversion efficiency, typically ranging from 88% to 96%. This efficiency minimizes heat generation, allowing the unit to deliver a continuous output current of up to 5A, with peak capabilities reaching 9A for sudden power demands. Pilots can select between three regulated output voltages—5.2V, 8V, or 12V—to precisely match the requirements of flight controllers, FPV cameras, video transmitters, and other auxiliary components. Integrated thermal shutdown, overcurrent protection with self-recovery, and short-circuit tolerance (for 2 seconds) further enhance its operational resilience and safeguard connected devices during unexpected events.
Additional Information
| Dimensions | 3.5 × 2.4 × 0.55 cm |
|---|
