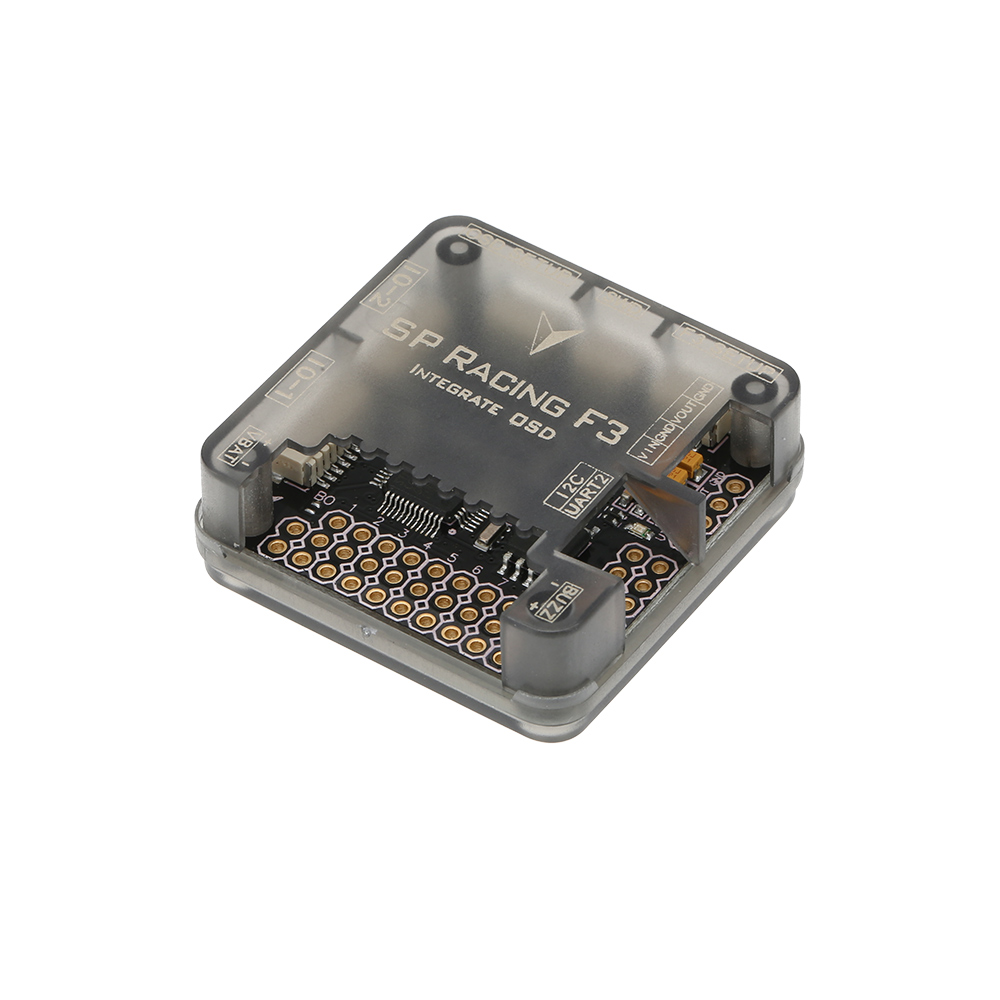

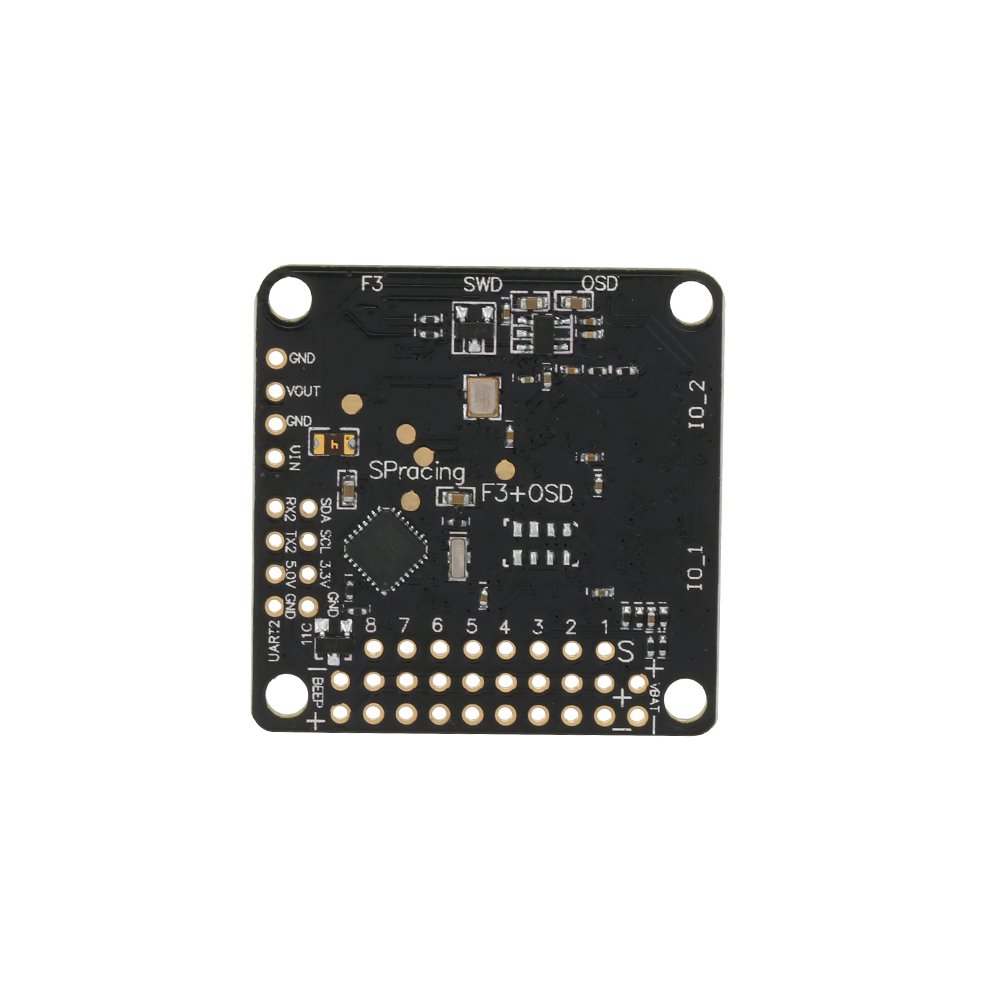

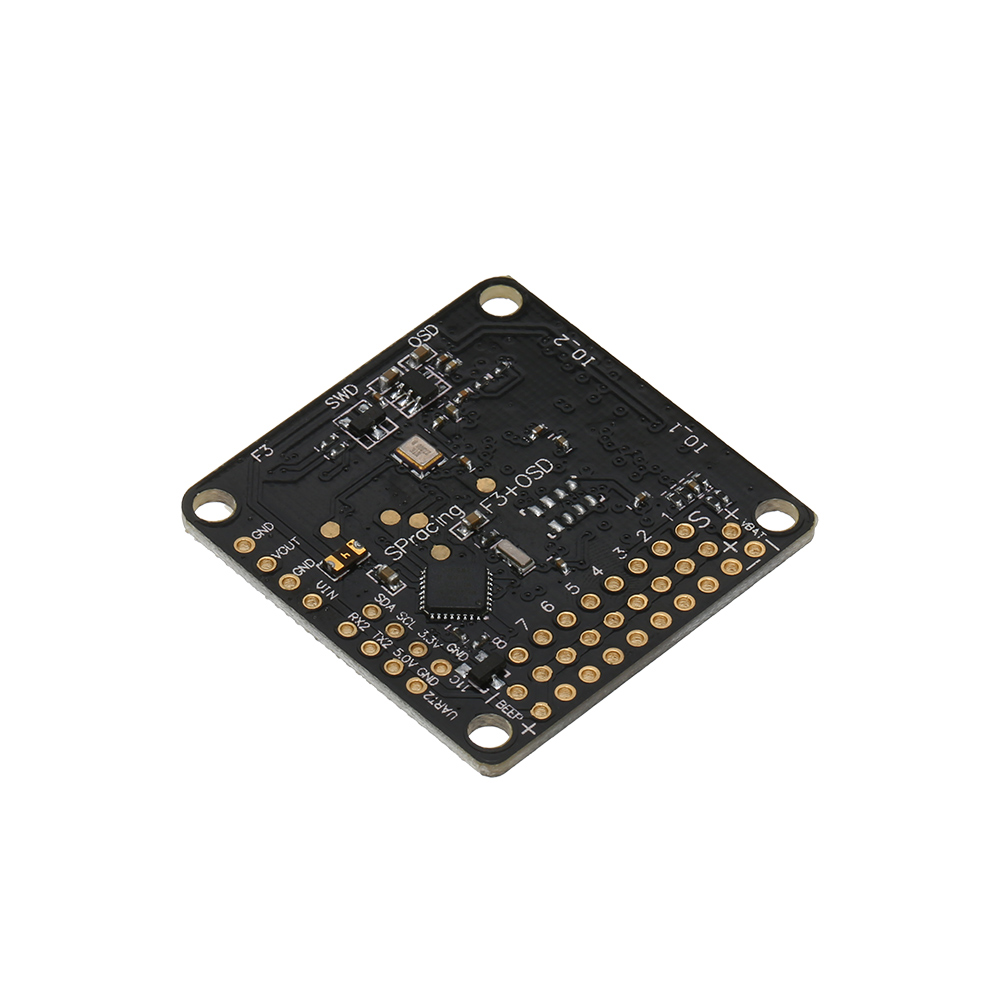

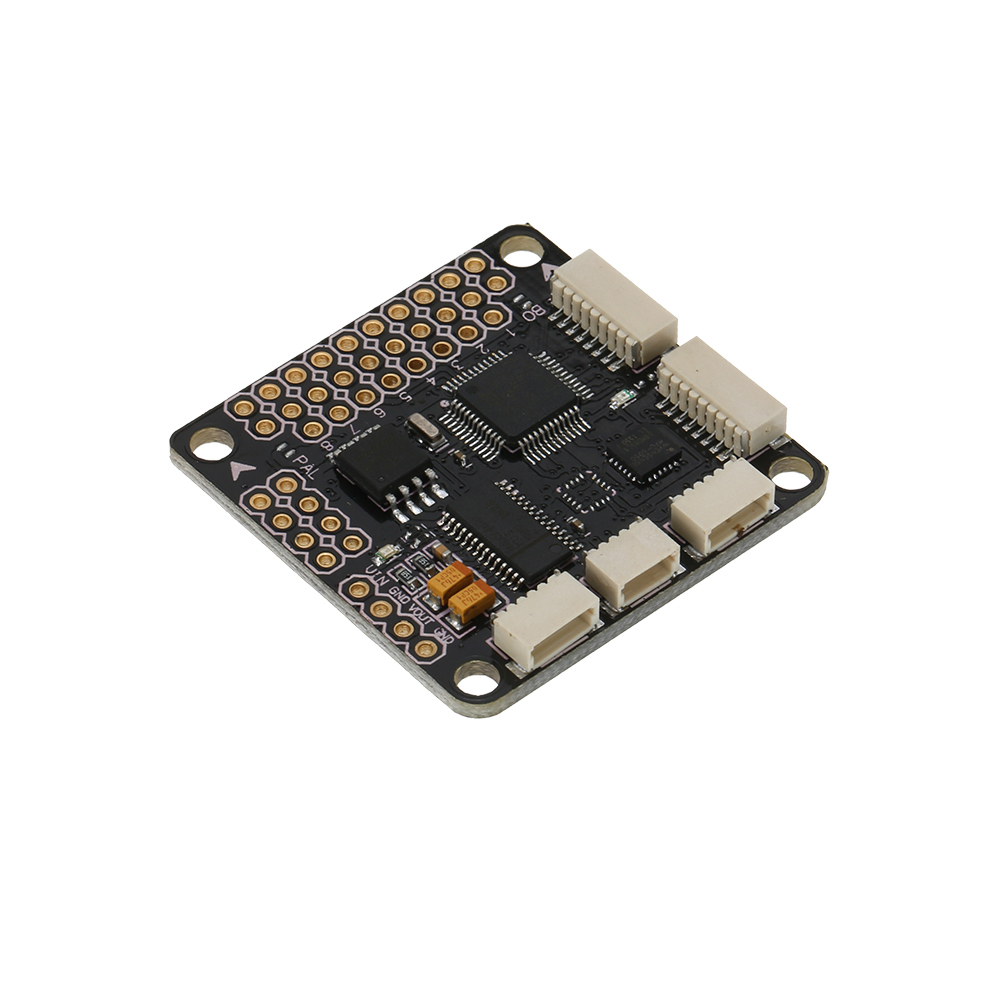

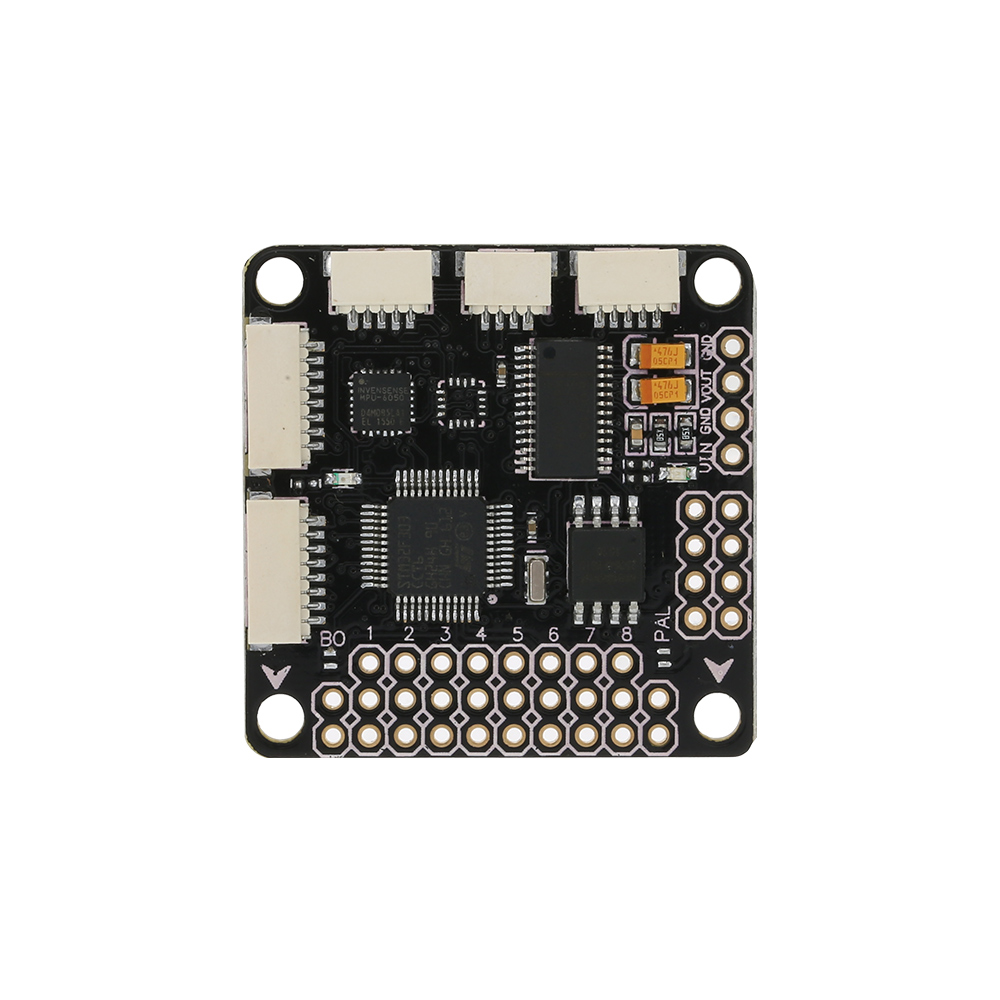

SP Racing F3 Flight Controller Integrate OSD ACRO Version
The SP Racing F3 ACRO Flight Controller integrates an OSD and is built around the STM32F303 CPU and MPU6050 IMU, designed for high-performance FPV racing drones running Cleanflight firmware.
Features
- STM32F303 ARM Cortex-M4 CPU with FPU for high-speed flight calculations.
- Integrated On-Screen Display (OSD) for real-time telemetry overlay.
- MPU6050 6-axis accelerometer/gyroscope for precise flight stabilization.
- Extensive I/O support for OSD, SmartPort, SBus, GPS, LED strips, and battery monitoring.
- Supports OneShot ESC protocol for responsive motor control and PID tuning.
Out of stock
The SP Racing F3 ACRO Flight Controller is a compact, feature-rich board engineered for competitive FPV racing. Its STM32F303 processor, operating at 72MHz with a floating-point unit (FPU), enables faster loop times and more efficient flight calculations compared to previous-generation F1 boards. This allows pilots to run advanced features simultaneously without performance degradation.

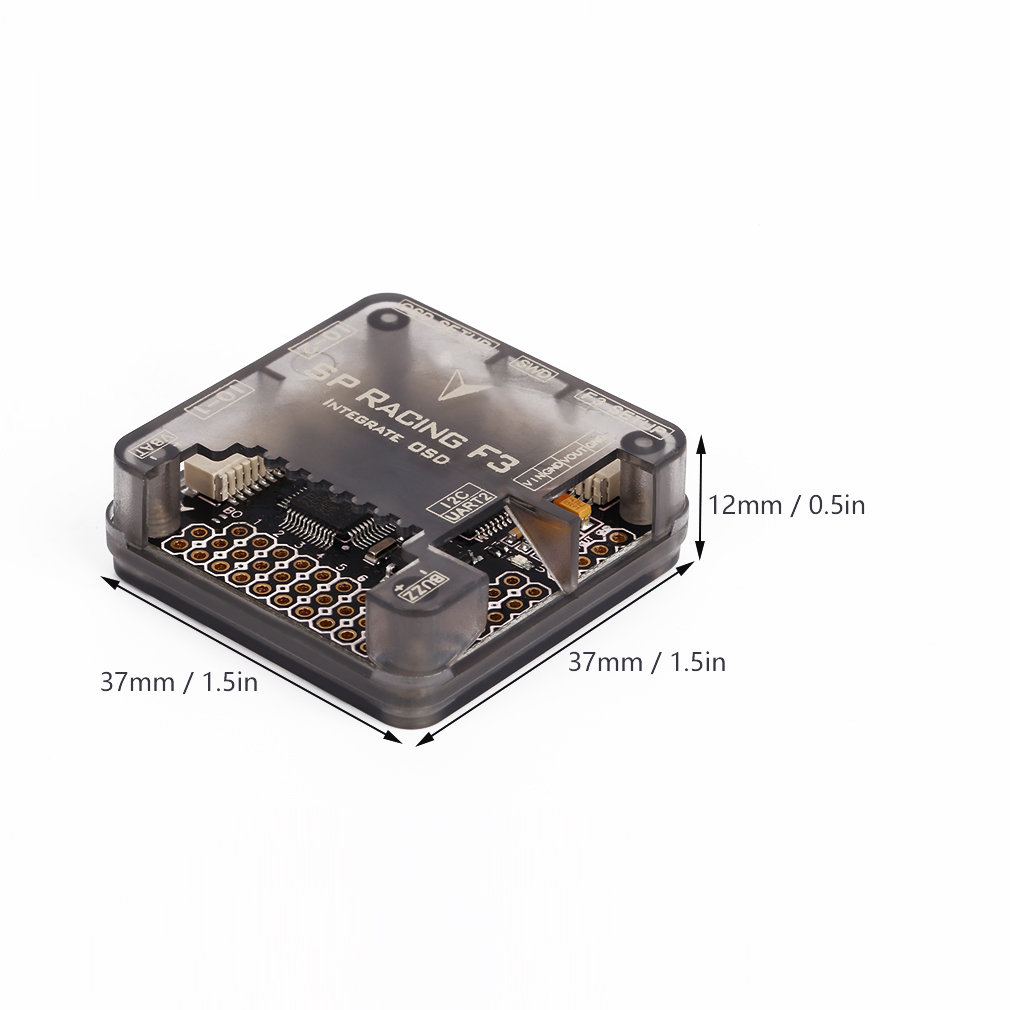

Built on the proven Cleanflight ecosystem, the controller offers extensive connectivity including a dedicated I2C port, buzzer output, sonar input, and programmable LED strip support. Its integrated OSD eliminates the need for an external module, saving weight and simplifying builds. The board’s 36x36mm mounting pattern makes it compatible with a wide range of mini quadcopter frames.
Additional Information
| Weight | 0.04 kg |
|---|---|
| Dimensions | 6 × 4 × 1 cm |
