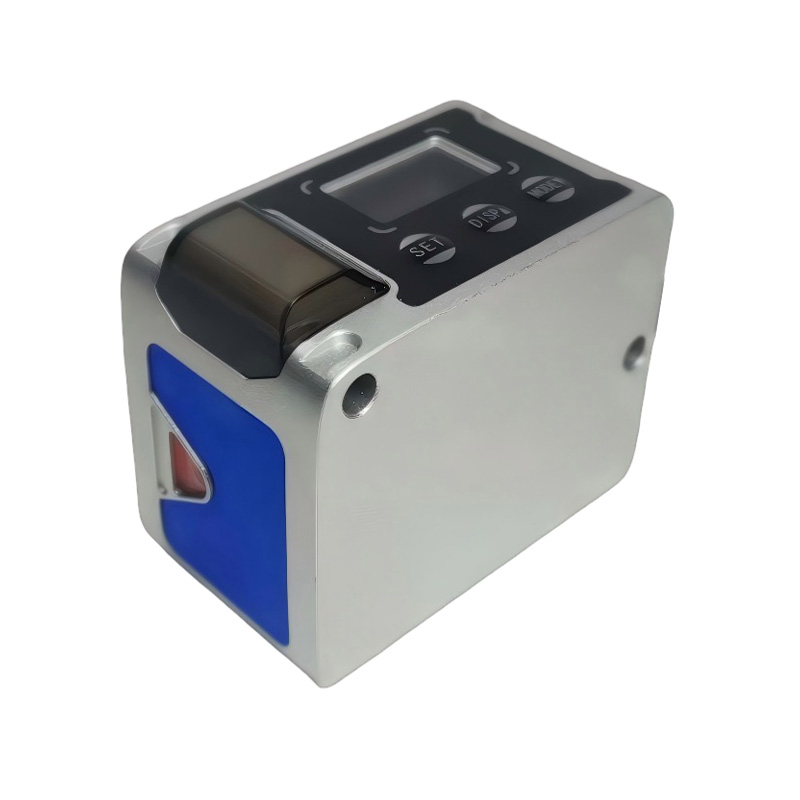

PONO WTA20-20M Laser Distance Sensor, RS485, 12-30VDC, 100Klux, 905nm, 2000Hz, 1.5W, Range: 0.05-20m
The PONO WTA20-20M is an industrial-grade laser distance sensor featuring a 905nm Class 1 laser for safe, precise measurement from 0.05 to 20 meters. With RS485 communication and a 12-30VDC supply, it integrates seamlessly into automation, robotics, and PLC systems, delivering high-speed, real-time data.
Features
- High-speed 2000Hz measurement frequency for real-time dynamic tracking.
- ±10cm accuracy and 5cm repeatability for reliable industrial positioning.
- Robust 100Klux ambient light immunity ensures stable performance in bright environments.
- Industrial RS485 interface supports daisy-chaining and long-distance communication.
- IP65-rated compact housing provides durability for harsh industrial applications.
Out of stock
The PONO WTA20-20M utilizes time-of-flight (ToF) laser ranging technology with a 905nm wavelength to deliver precise, non-contact distance measurements. Its high 2000Hz sampling rate enables rapid feedback for fast-moving targets in automation and robotics. The sensor’s advanced optical design provides exceptional immunity to ambient light up to 100,000 lux, ensuring reliable operation in both indoor and outdoor settings.
Engineered for industrial environments, the sensor features a sealed IP65 housing that protects against dust and water jets. The low 1.5W power consumption and wide 12-30VDC operating voltage range make it suitable for integration into a variety of control systems, from mobile robots to fixed automation lines. The RS485 interface allows for robust, noise-immune communication over extended distances, supporting standard industrial protocols.
Additional Information
| Weight | 0.072 kg |
|---|---|
| Dimensions | 5.2 × 4.4 cm |
