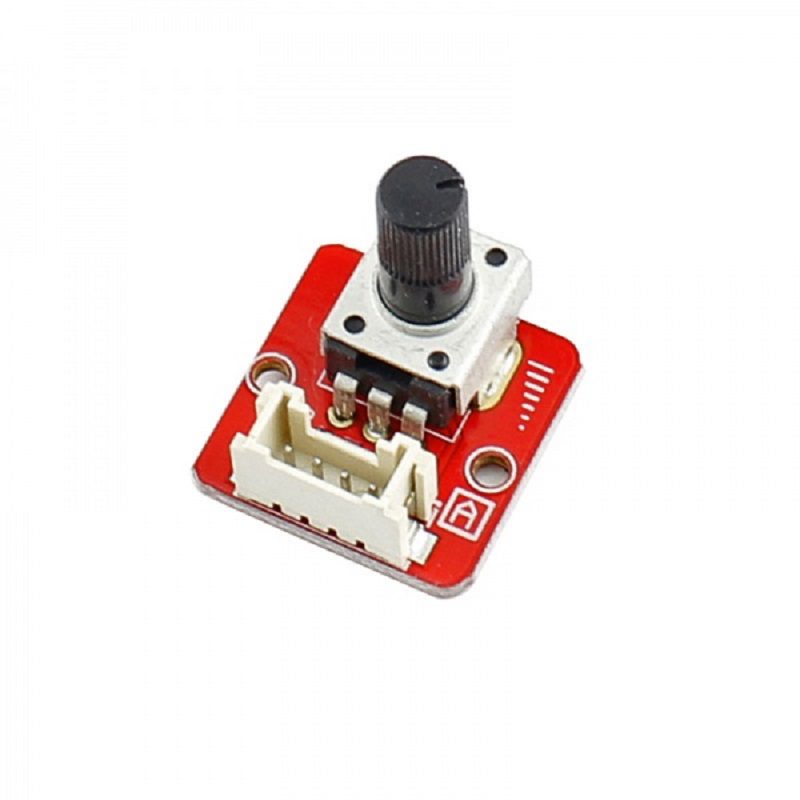

Elecrow CROWTAIL Rotary Angle Sensor 2.0 - 10k Ohm Potentiometer w/ 4-Pin Cable
The Elecrow CROWTAIL Rotary Angle Sensor 2.0 is a 10k ohm potentiometer-based module designed for angular position measurement with Crowduino and other 3.3V/5V microcontroller platforms, offering a 300-degree rotational range and linear analog output.
Features
- 10k Ohm Rotary Potentiometer with 300-degree mechanical rotation range.
- Linear analog output voltage proportional to shaft angle for precise position sensing.
- CROWTAIL form-factor with 4-pin connector for plug-and-play compatibility with Elecrow Crowduino boards.
- Compact PCB module measuring 21.3mm x 20mm with a lightweight 6g construction.
- Standard 3-pin interface (VCC, GND, SIG) for easy integration with Arduino, ESP32, and other MCU ADCs.
Out of stock
The Elecrow CROWTAIL Rotary Angle Sensor 2.0 is a precision rotary potentiometer module designed for embedded systems and educational robotics. It translates a 300-degree mechanical rotation into a linear analog voltage signal, providing a straightforward method for measuring angular position, dial input, or control knob movement.
The module features a standard 10k ohm resistive element, ensuring compatibility with the analog input ranges of most 3.3V or 5V microcontrollers like Arduino, ESP32, and Raspberry Pi (with ADC). Its CROWTAIL connector system simplifies wiring to Elecrow base shields, while the breakout pins allow for direct soldering or breadboard use in custom projects requiring manual control input or feedback.
Additional Information
| Weight | 0.006 kg |
|---|---|
| Dimensions | 2.13 × 2 cm |
