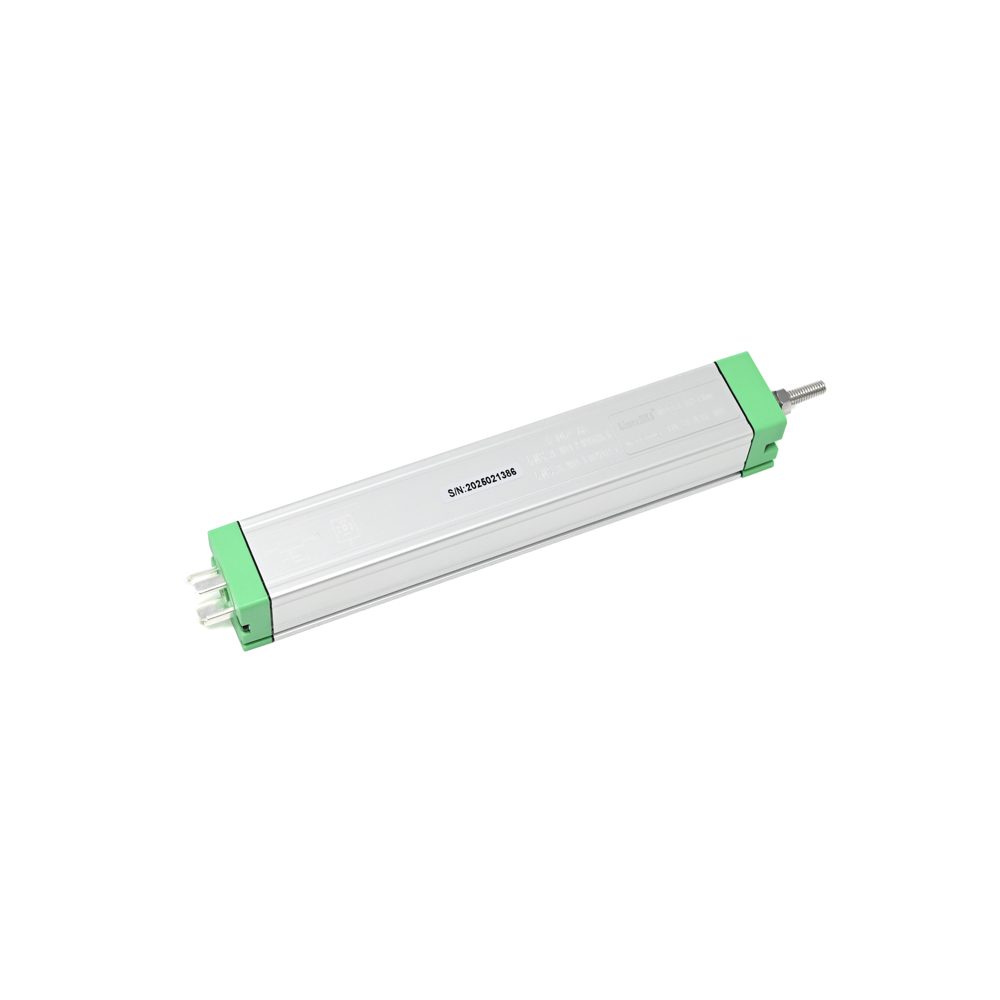

MIRAN LS2-50MM Linear Displacement Sensor - 0-50mm Range, Flange Mount, Hirschmann Plug

The sensor provides an analog resistance output of 5 kΩ (±10%) that varies linearly with the rod position. To interface, connect the sensor's three wires (typically wiper and two ends) to a resistance-measuring circuit or a PLC's analog input module configured for resistance or potentiometer input. Ensure your measurement circuit operates within the sensor's 28 VDC maximum supply limit.

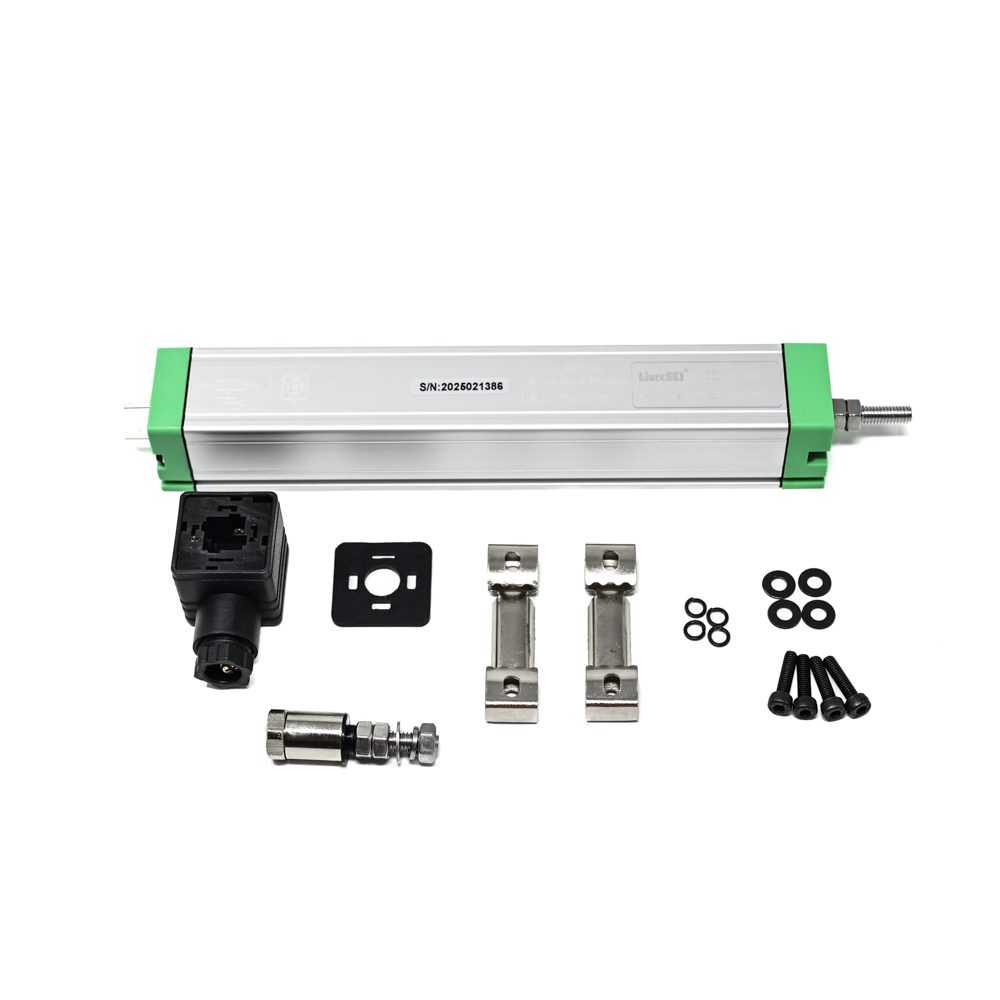

The sensor is designed for flange mounting using the included slide-in brackets and M4 hardware. The push-pull rod must be aligned axially with the moving part to avoid side loads, and the universal joint helps accommodate minor misalignment. Use the provided sealing gasket to maintain environmental protection. Ensure the mounting surface is rigid to prevent vibration-induced measurement errors.

The LS2-50MM operates across an extensive temperature range from -60°C to +150°C, making it suitable for harsh industrial environments. While a specific IP rating isn't listed in the provided specs, the inclusion of a sealing gasket and robust construction indicates design for durability against dust and contaminants typical in machinery applications.

Yes, the sensor supports a maximum linear speed of 10 meters per second. This high-speed capability, combined with its robust mechanical design, makes it suitable for dynamic applications such as fast-acting pneumatic cylinders, high-cycle injection molding machines, and rapid robotic actuators without sacrificing measurement accuracy or sensor lifespan.
