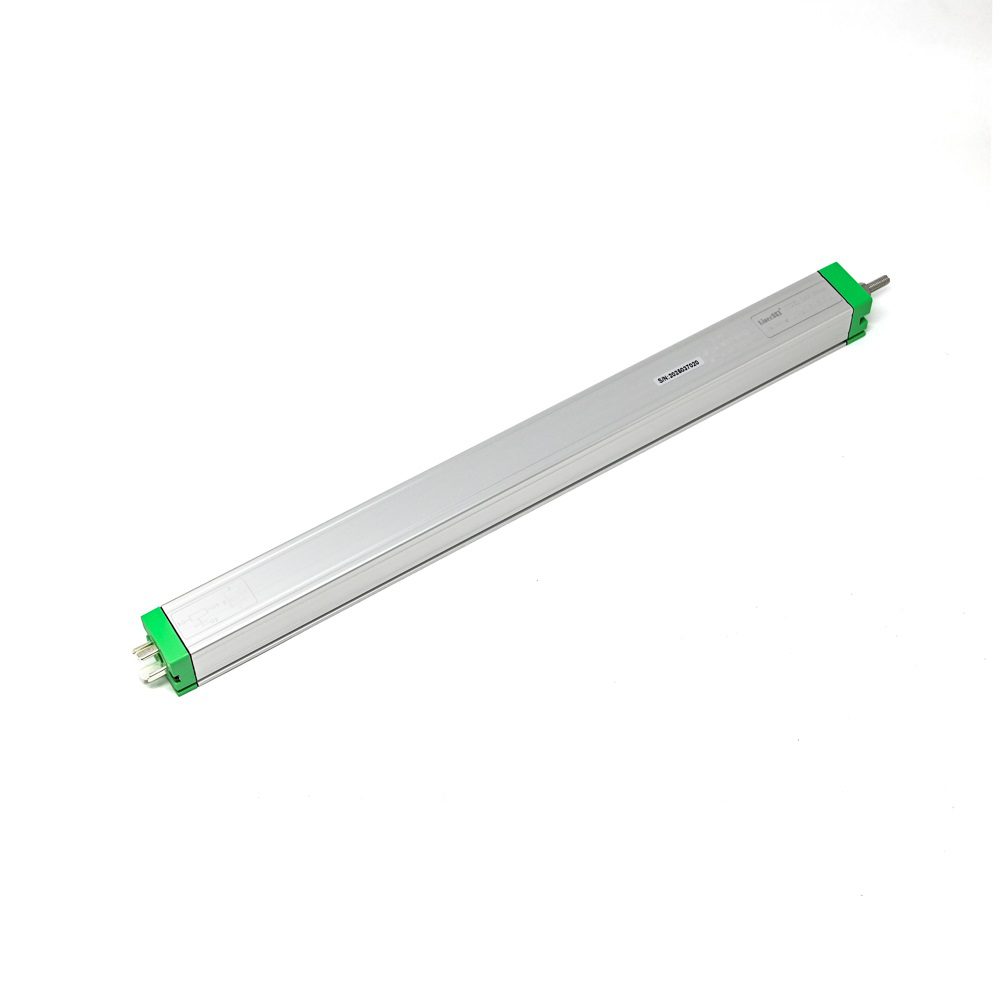

MIRAN LS2-350MM Linear Displacement Sensor - 350mm Stroke, Flange Mount, Pull-Rod Potentiometer
The MIRAN LS2-350MM is a high-precision linear displacement sensor utilizing a conductive plastic resistive potentiometer to provide analog resistance output over a 0-350mm stroke. Its robust flange-mount, pull-rod design is engineered for demanding industrial environments, offering reliable position feedback for automation, machine tools, and injection molding systems.
Features
- 350mm stroke length with high-precision conductive plastic resistive potentiometer.
- Analog resistance output for direct integration with PLCs, DAQs, and control systems.
- Industrial-grade durability rated for over 100 million reciprocating cycles.
- Enhanced sealing design protects against dust and moisture in harsh environments.
- Flange mount with pull-rod mechanical structure for stable, repeatable position feedback.
Out of stock
The LS2-350MM sensor operates on the principle of a conductive plastic resistive potentiometer, where a wiper moves along a precision resistive element as the pull-rod extends or retracts. This movement produces a proportional analog resistance change, providing a direct and linear measurement of displacement. The sensor is engineered for high-speed applications, supporting movement up to 10 m/s.
Constructed with high-quality imported components and an upgraded sealing structure, the sensor is designed to withstand operating temperatures from -60°C to +150°C. Its robust mechanical design ensures stable output and long-term reliability even in high-vibration industrial settings such as machine tools and automated production lines.
Additional Information
| Weight | 0.528 kg |
|---|---|
| Dimensions | 47 × 3.41 cm |
