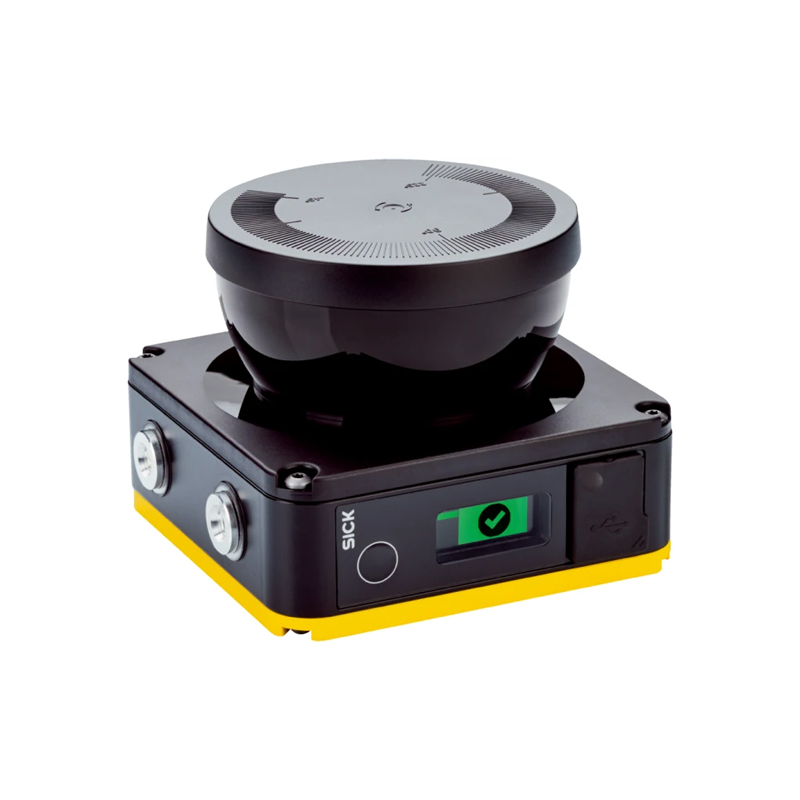

SICK NANS3-CAAZ30IZ1 Safety Laser Scanner, 275° Beam Angle, 128 Field Pairs, Type 3, SIL2, IP65, Sensing Range: 40m
The SICK NANS3-CAAZ30IZ1 is a high-performance safety laser scanner designed for industrial automation, offering a 275° scanning angle and a protective range up to 40 meters. It integrates with AGVs, AMRs, robotics, and smart factory control systems via configurable field sets and a USB 2.0 interface for flexible safety zoning and diagnostics.
Features
- Wide 275° scanning angle for comprehensive area monitoring and intrusion detection.
- Long protective sensing range up to 40 meters, suitable for large-scale industrial safety zones.
- Configurable with up to 128 field pairs for dynamic and flexible safety area definition.
- Certified to Type 3 safety level and SIL2, ensuring reliable protection for personnel and machinery.
- Robust IP65-rated housing for reliable operation in dusty, humid, or vibration-prone industrial environments.
Out of stock
The SICK NANS3-CAAZ30IZ1 Safety Laser Scanner utilizes advanced safeHDDM® scanning technology to provide precise and reliable object detection, even in challenging conditions with dust, ambient light interference, or vibrations. Its high-resolution scanning allows for configurable protective field resolutions, enabling precise definition of warning and stop zones for automated guided vehicles (AGVs), autonomous mobile robots (AMRs), and robotic workcells.
Engineered for industrial durability, the scanner operates within a temperature range of -10°C to 50°C and is housed in an IP65-protected enclosure, making it suitable for harsh factory floors. The integrated micro USB port provides a direct interface for configuration, diagnostics, and field set programming, streamlining integration into broader safety automation and machine protection systems.
Additional Information
| Weight | 0.67 kg |
|---|---|
| Dimensions | 11.75 × 1.1 cm |
