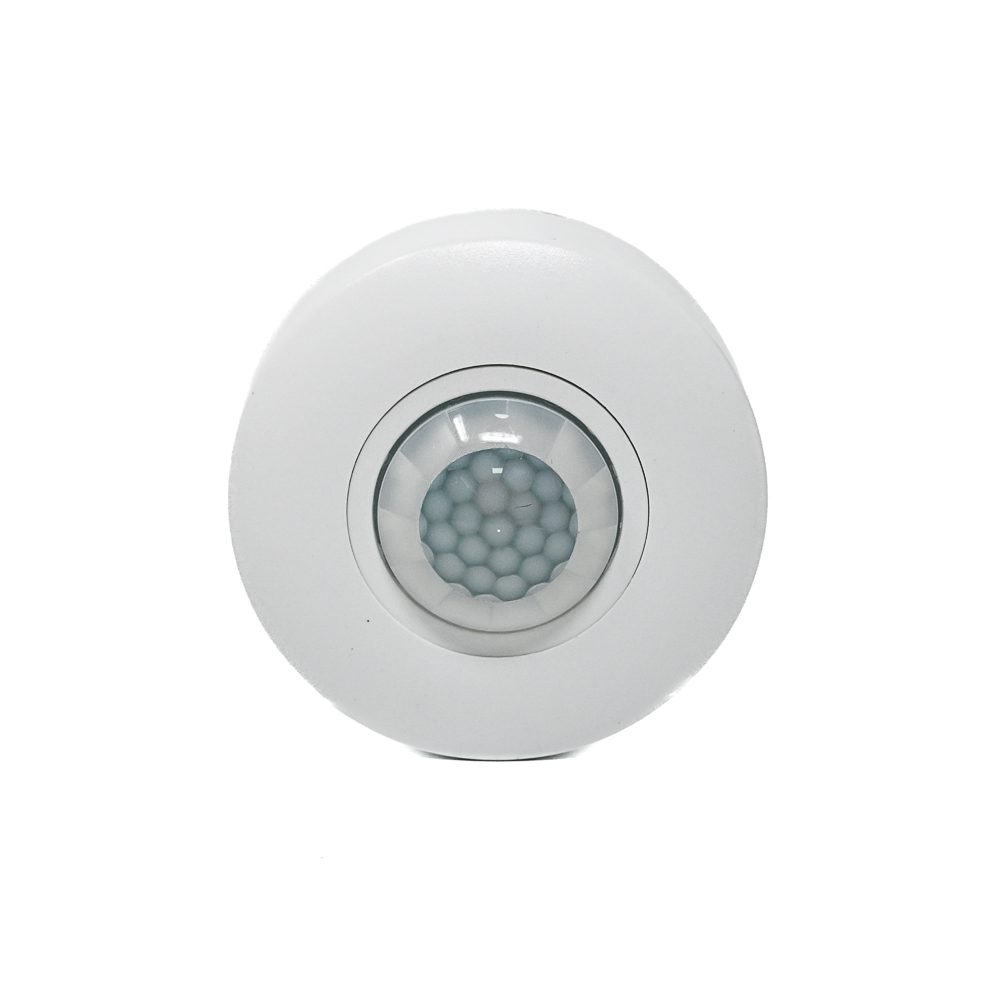

PX08 Human Infrared Sensor AC220-240V - 360° Detection, 6m Range
The PX08 is a mains-powered (AC220-240V) passive infrared (PIR) motion sensor module designed for automatic lighting control and energy management in residential and commercial spaces. It features a wide 360° detection field, adjustable time delay, and automatic day/night sensing for reliable, hands-free automation.
Features
- Mains-Powered Operation: Direct AC220-240V input eliminates the need for a separate DC power supply.
- 360° Wide-Angle Detection: Covers a full circular area with a range of up to 6 meters for comprehensive motion sensing.
- Automatic Day/Night Mode: Built-in ambient light sensor (SUN/MOON modes) prevents activation during daylight hours.
- Adjustable Time Delay: User-configurable relay hold time from 10 seconds to 30 minutes after motion ceases.
- High-Capacity Load Support: Controls loads up to 1200W (incandescent) or 500W (other load types).
Out of stock
The PX08 Human Infrared Sensor utilizes a passive infrared (PIR) sensing element to detect the thermal radiation emitted by moving human bodies. Its integrated signal processing circuit filters out environmental noise, triggering a built-in relay to switch connected AC loads such as lights, fans, or alarms. The module is engineered for direct integration into standard AC lighting circuits.
Designed for reliable performance in varied indoor and sheltered outdoor environments, it operates within a temperature range of -10°C to +40°C and tolerates humidity levels up to 93% RH. The adjustable time delay resets with continued motion, while the low power consumption (0.45W active, 0.1W standby) ensures efficient operation. Its compact, self-contained housing facilitates straightforward ceiling or wall mounting.
Additional Information
| Weight | 0.078 kg |
|---|---|
| Dimensions | 7.9 × 7.9 cm |
