Generic AC110-240V 360 Degree PIR Infrared Motion Sensor Switch
This AC110-240V 360-degree PIR motion sensor switch provides automatic lighting control for indoor environments. It features a wide detection radius, adjustable sensitivity, and configurable time-delay settings, making it suitable for residential and commercial lighting systems.
Features
- 360-degree wide-angle passive infrared (PIR) motion detection.
- Universal AC110-240V power supply for global compatibility.
- Configurable via 8-bit DIP switch for light threshold, sensitivity, and time-delay (5s to 8min).
- Rated for up to 800W resistive load (180-240VAC) or 500W (110-130VAC).
- Compact design with an 18mm sensor diameter and 8m detection range at 22°C.
Out of stock
This passive infrared (PIR) motion sensor switch is engineered for automatic lighting control in indoor spaces such as hallways, offices, and storage areas. It operates on a universal AC110-240V input, eliminating the need for a separate DC power supply. The sensor utilizes a pyroelectric element to detect infrared radiation changes caused by human movement within its 360-degree field of view.

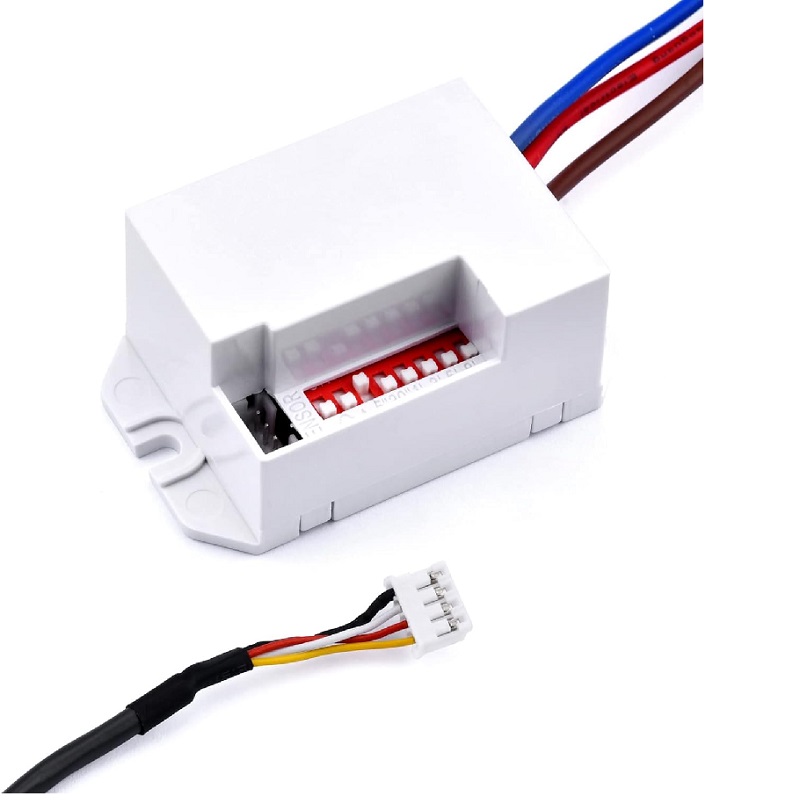

The unit incorporates an 8-bit DIP switch for precise configuration, allowing users to set the ambient light threshold (below 10 lux or any light condition), adjust motion sensitivity, and select the load time-delay from 5 seconds to 8 minutes. Its construction is designed for reliable operation within a temperature range of 10 to 32°C and up to 93% relative humidity, ensuring stable performance in typical indoor climates.
Additional Information
| Weight | 0.046 kg |
|---|---|
| Dimensions | 5 × 6 × 4.5 cm |
