SKU: SENS-1816
📋 GST Invoice Available

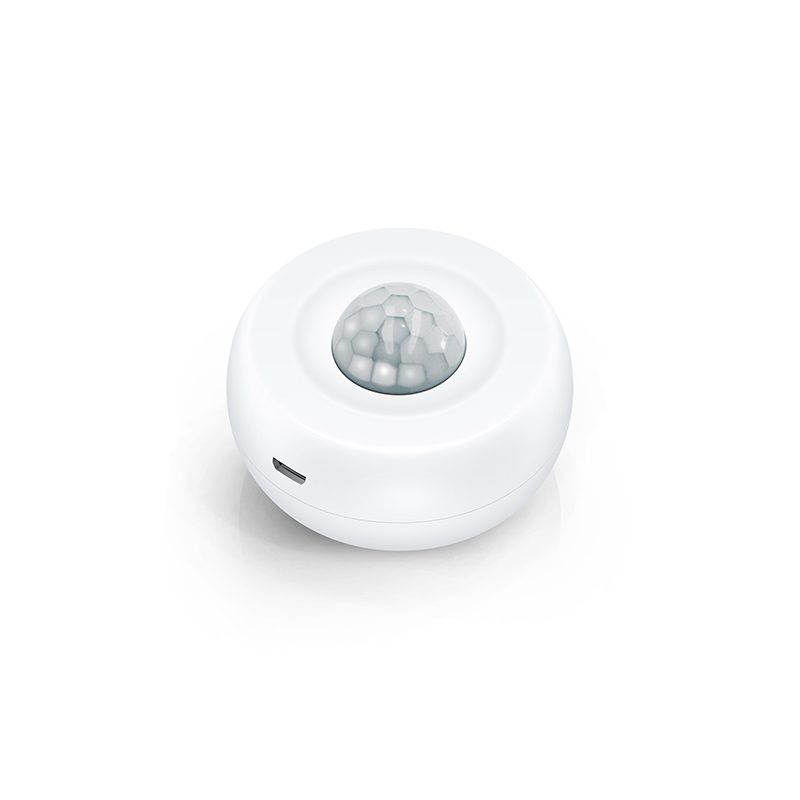

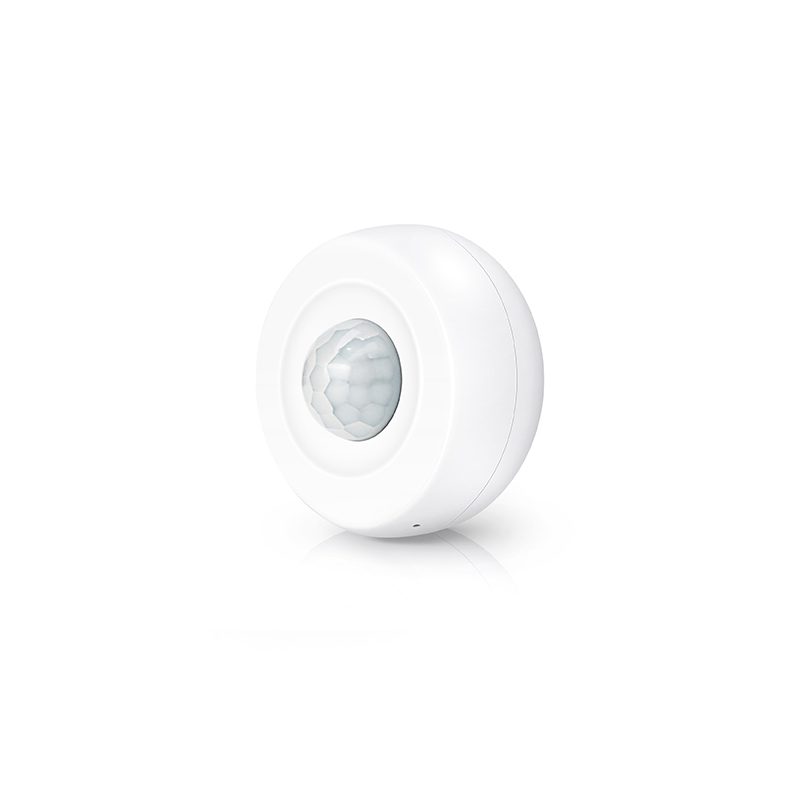

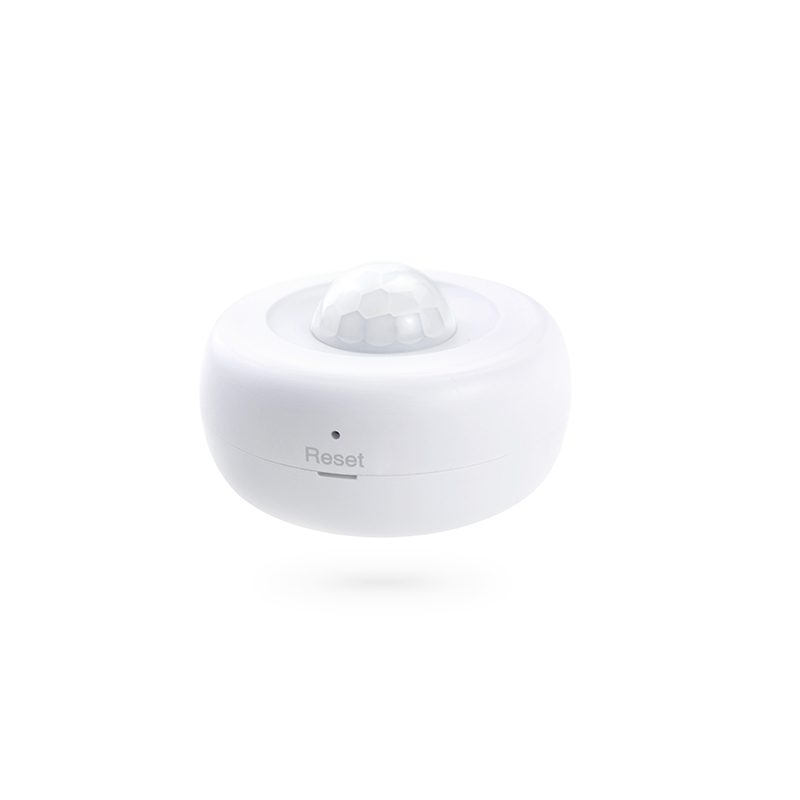

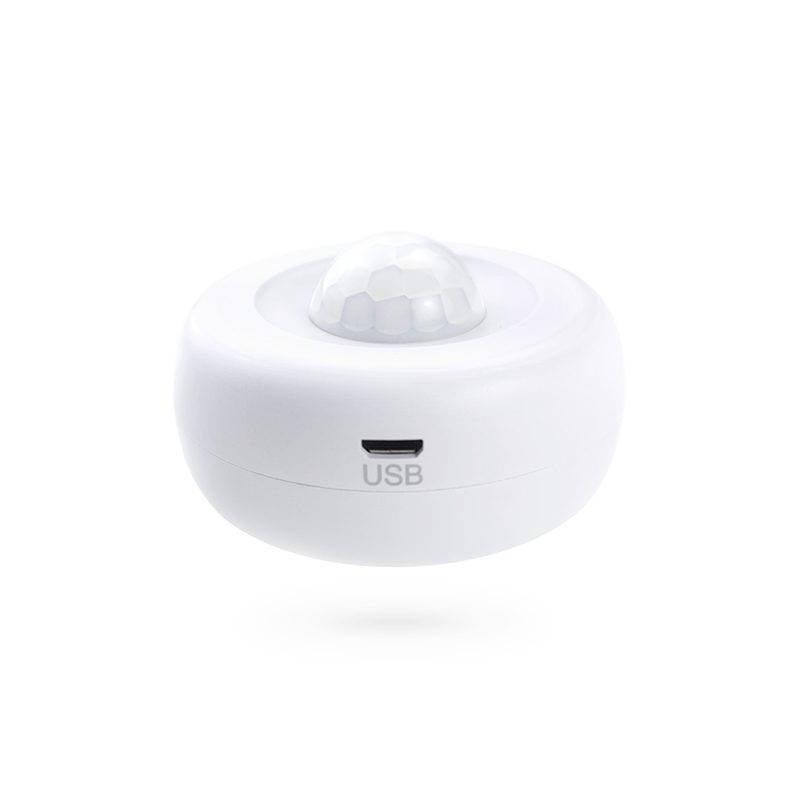

Tuya PST-HW400B Smart WiFi PIR Motion Sensor 360° 6m Range - Ceiling Mount

₹999.00 (Inclusive of all taxes)
Out of Stock

The Tuya PST-HW400B is a smart WiFi PIR motion sensor designed for ceiling installation, offering 360° detection up to 6 meters. It integrates directly with the Tuya Smart app for remote monitoring, real-time alerts, and automation of lights and alarms, powered by two LR03 batteries.

Features

  • 360° Ceiling-Mount PIR Detection with a 6-meter sensing radius.
  • Direct WiFi (2.4GHz) connectivity for remote control and monitoring via the Tuya Smart app.
  • Features strong anti-interference algorithms to minimize false alarms.
  • Enables smart automation rules, such as triggering lights or sirens upon motion detection.
  • Easy stick-on installation with included bracket and 3M adhesive.

Out of stock

Description

The PST-HW400B utilizes passive infrared (PIR) technology to detect human body heat signatures within a full 360° field of view from a ceiling-mounted position. Its integrated WiFi module (IEEE 802.11 b/g/n 2.4GHz) connects directly to your home network, enabling seamless integration with the Tuya Smart ecosystem for real-time push notifications and automated scene control without the need for a separate hub.

Engineered with advanced signal processing, the sensor features strong anti-interference capabilities to distinguish between genuine motion and environmental noise, ensuring reliable performance and fewer false triggers. The compact, white ABS housing is designed for discreet installation, and the device includes built-in low-battery detection to alert users via the app when the two LR03 batteries require replacement.

Key Features

  • Integrated 2.4GHz WiFi module for direct cloud connectivity and app control.
  • Wide-area 360° PIR detection optimized for ceiling mounting.
  • Advanced algorithms for reliable sensing with minimal false alarms.
  • Supports smart scene automation (light control, alarm triggering) via Tuya app.
  • Low-battery detection and alert system for maintenance planning.
  • Tool-free installation with included mounting bracket and 3M adhesive pad.
  • Compact and discreet ABS plastic housing in white finish.

Applications

  • Smart home security systems for occupancy detection and intrusion alerts.
  • Automated lighting control in hallways, stairwells, and rooms based on presence.
  • Energy management in commercial or residential spaces by triggering HVAC or lighting only when occupied.
  • Elderly care monitoring to detect activity patterns or lack of movement in specific areas.
  • Retail or office space automation to activate displays or signage when customers enter.

Technical Specifications

Model NumberHW400B
Sensor TypePassive Infrared (PIR)
Detection RangeUp to 6 meters
Detection Angle360°
Wireless ProtocolWiFi (IEEE 802.11 b/g/n 2.4GHz)
Power Supply2 x LR03 (AAA) Batteries (Built-in)
Housing MaterialABS Plastic
ColorWhite
Dimensions (L x W)60 mm x 60 mm
Weight80 g (Sensor), 49 g (Shipping)
Mounting MethodCeiling (Bracket & Adhesive)
Smart PlatformTuya Smart

Frequently Asked Questions

What is the wireless range and protocol of the PST-HW400B sensor?

The sensor connects directly to your 2.4GHz WiFi network (IEEE 802.11 b/g/n) using the built-in module. Its operational range is limited by your WiFi router's signal strength, not a proprietary radio. For optimal performance, ensure the installation location has adequate WiFi coverage.

How do I power the sensor and how long do the batteries last?

The sensor is powered by two included LR03 (AAA) batteries. Battery life depends heavily on detection activity, signal strength, and notification frequency, typically lasting several months. The Tuya app will send a low-battery alert when replacement is needed.

Can I use this sensor to trigger other smart devices automatically?

Yes. Through the Tuya Smart app, you can create automation scenes. For example, you can set the sensor to turn on smart lights or plug sockets when motion is detected, or trigger an alarm siren, providing fully automated smart home control.

What is the recommended installation height and method?

This sensor is designed for ceiling mounting to maximize its 360° detection field. Use the included bracket and 3M adhesive pad for easy, tool-free installation. Ensure it is mounted on a flat surface, clear of obstructions, and within range of your WiFi network.

Package Includes

  • 1 x PST-HW400B WiFi PIR Sensor
  • 2 x LR03 (AAA) Batteries
  • 1 x Mounting Bracket
  • 1 x User Manual

Additional Information

Weight 0.049 kg
Dimensions 6 × 6 × 5 cm
