PT13 Human Infrared Sensor AC100-240V - 100° Detection Angle, 8m Range

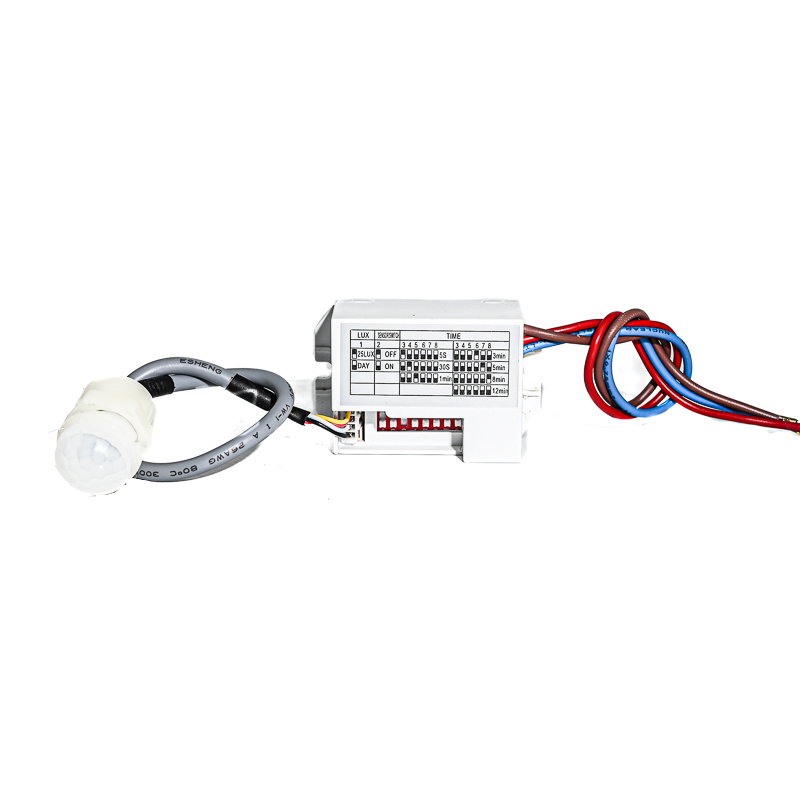

PT13 Human Infrared Sensor AC100-240V - 100° Detection Angle, 8m Range - Image 2
SKU: SENS-1821
📋 GST Invoice Available

PT13 Human Infrared Sensor AC100-240V - 100° Detection Angle, 8m Range

₹289.00 (Inclusive of all taxes)
Out of Stock

The PT13 is a passive infrared (PIR) motion sensor module designed for automatic lighting control, operating on a wide AC input range of 100-240V. It features a 100° detection angle, an 8-meter range, and adjustable light sensitivity (2-2000 LUX) for day/night operation, making it suitable for indoor energy-saving applications.

Features

  • Wide AC Input Range: Operates from 100V to 240V AC at 50/60Hz for global compatibility.
  • Broad Detection Coverage: 100° detection angle with an 8-meter range for effective area monitoring.
  • Adjustable Light Sensitivity: Configurable activation threshold from 2 to 2000 LUX for day/night mode selection.
  • Flexible Timing Control: Adjustable delay time from 6 seconds to 6 minutes after motion detection.
  • Flame-Retardant Housing: Constructed with durable, flame-retardant material for enhanced safety and longevity.

Out of stock

Description

The PT13 Human Infrared Sensor utilizes passive infrared (PIR) detection technology with a Fresnel lens to sense changes in thermal radiation caused by moving objects. This triggers a relay output to control lighting fixtures automatically. The module integrates ambient light sensing, allowing it to operate only when illumination falls below a user-defined threshold, preventing unnecessary activation during daylight hours.

Designed for ceiling installation with a quick-connect bracket, it is built for reliability in indoor environments such as corridors, stairwells, and public buildings. Its construction from flame-retardant materials ensures compliance with safety standards for electrical installations, providing a durable solution for automated, energy-efficient lighting control.

Key Features

  • Passive Infrared (PIR) Detection: Sensitive to human body heat movement for reliable occupancy sensing.
  • Integrated Ambient Light Sensor: Features a 2-2000 LUX adjustable threshold for automatic day/night operation.
  • Wide Operating Voltage: Compatible with 100-240V AC mains power, suitable for international installations.

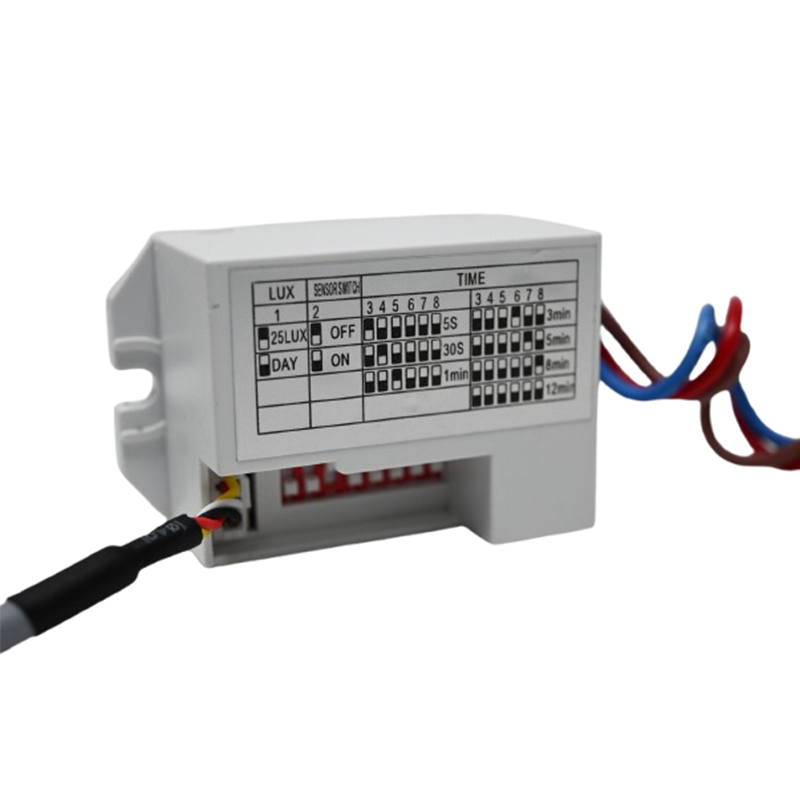

  • User-Configurable Parameters: Adjustable detection delay (6s to 6min) and light sensitivity via internal switches.
  • Ceiling-Mount Design: Includes a mounting bracket for straightforward installation and wiring.
  • Flame-Retardant & Durable Housing: Engineered for long-term indoor use with resistance to deformation and oxidation.
  • Energy Saving Automation: Automatically controls lighting to reduce power consumption in unoccupied spaces.

Applications

  • Indoor Lighting Automation: For energy-saving control in corridors, staircases, and storage rooms.
  • Public Building Occupancy Sensing: To manage lighting in restrooms, lobbies, and conference rooms.
  • Residential Security Lighting: Automating porch, garage, or hallway lights upon detecting movement.
  • Commercial Energy Management: Integrating into building management systems for reduced operational costs.

Technical Specifications

Model NumberPX05 (PT13)
Detection TechnologyPassive Infrared (PIR)
Detection Angle100°
Maximum Detection Range8 meters
Rated Operating VoltageAC 100-240V, 50/60Hz
Light Sensitivity Range2 - 2000 LUX (adjustable)
Delay Time Adjustment6 seconds to 6 minutes
Operating Humidity<93% RH (non-condensing)
Housing MaterialFlame-Retardant Plastic
Dimensions (L x W)59mm x 39mm (excluding bracket)
Weight43 grams

Frequently Asked Questions

What is the operating voltage range for the PT13 sensor?

The PT13 sensor is designed for direct AC mains operation, supporting a wide input range from 100V to 240V AC at 50/60Hz. This makes it suitable for global installation without requiring an external power adapter or transformer.

How do I adjust the sensor for day or night-only operation?

The module features an adjustable light sensitivity control, typically via a rotary potentiometer or DIP switch inside the housing. You can set the activation threshold anywhere between 2 LUX (night mode) and 2000 LUX (daylight mode) to determine when motion detection should trigger the output.

Can the delay time after motion detection be changed?

Yes, the delay time is user-configurable. Using an adjustment dial, you can set the duration the connected light remains on after the last detected motion from a minimum of approximately 6 seconds up to a maximum of 6 minutes, as specified.

Is this sensor suitable for outdoor use?

No, the PT13 is designed for indoor installation. Its housing provides basic protection but is not rated for waterproof (IP) conditions. It is intended for use in dry indoor environments like hallways, closets, and commercial building interiors.

Package Includes

  • 1 x PT13 Human Infrared Sensor Module

Additional Information

Weight 0.043 kg
Dimensions 5.9 × 3.9 cm
