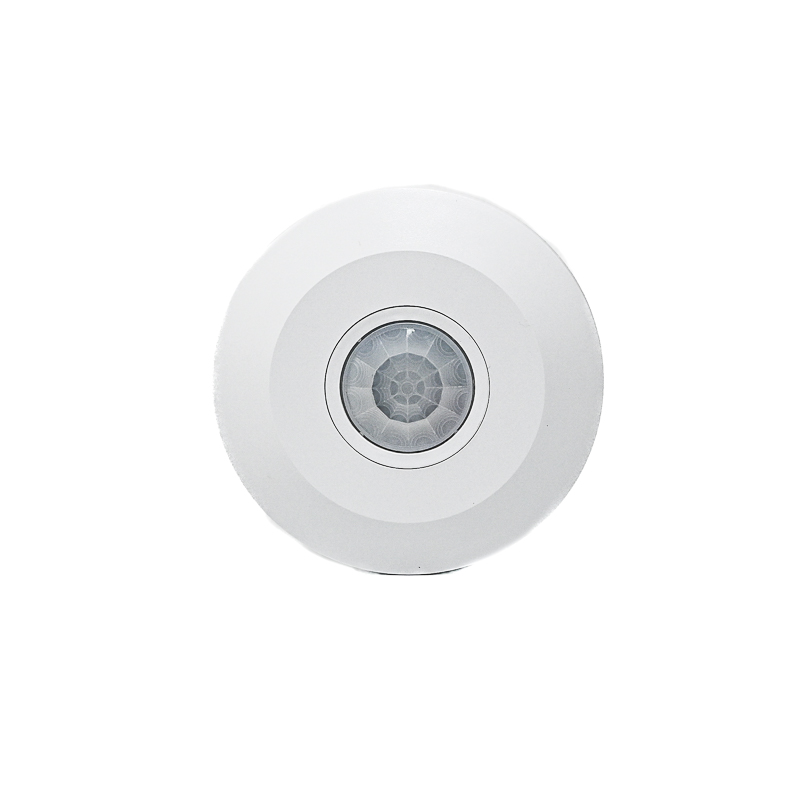

PX06 Human Infrared Sensor AC220-240V - 360° Ceiling Mount, Adjustable Delay & Light Sensitivity
The PX06 is a ceiling-mount passive infrared (PIR) motion sensor designed for direct integration into 220-240V AC lighting circuits. It features a 360° detection field, adjustable time delay (6s to 6m), and configurable light sensitivity (2-2000 LUX) for automated lighting control in residential and commercial spaces.
Features
- Direct 220-240V AC operation for seamless integration into mains-powered lighting systems.
- 360° panoramic detection with a 6-meter range via a high-sensitivity Fresnel lens.
- Fully adjustable time delay (6 seconds to 6 minutes) and ambient light sensitivity (2-2000 LUX).
- Flame-retardant housing ensures safe, durable operation in indoor ceiling installations.
- Simple two-wire connection and pre-drilled mounting holes for quick, tool-free setup.
Out of stock
The PX06 Human Infrared Sensor operates on the passive infrared (PIR) principle, detecting changes in thermal radiation patterns caused by moving human bodies. It is engineered for direct series connection with 220-240V AC loads, such as incandescent, LED, or fluorescent lighting fixtures, eliminating the need for separate low-voltage power supplies or relay modules.

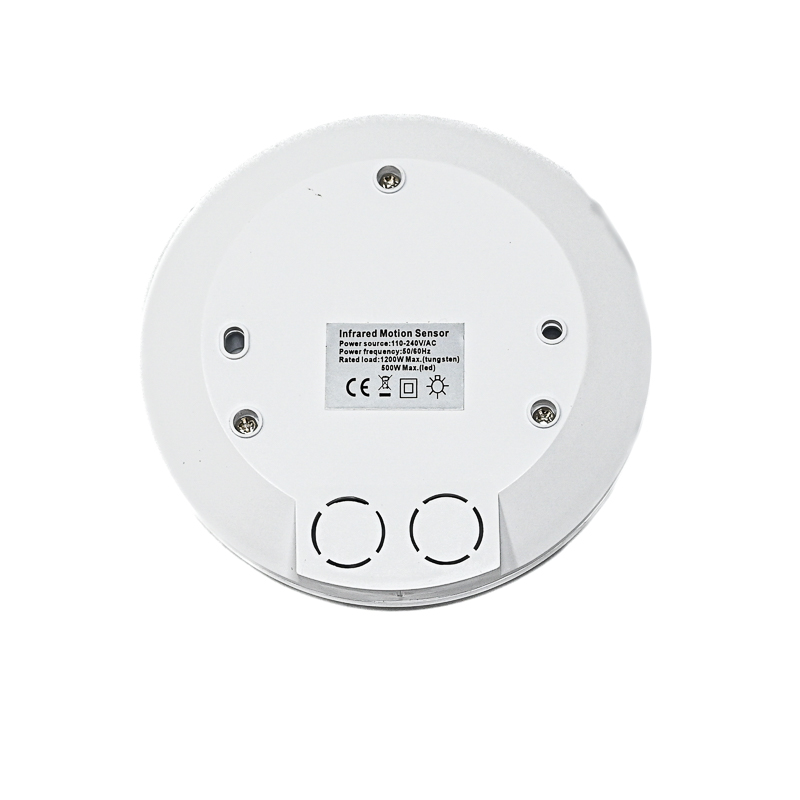

Its integrated circuitry provides stable signal conditioning, with user-adjustable potentiometers for setting the activation delay after motion ceases and the ambient light threshold at which the sensor becomes active. The flame-retardant plastic housing and 360° rotational mount allow for flexible, secure ceiling installation in corridors, stairwells, warehouses, and storage areas.
Additional Information
| Weight | 0.088 kg |
|---|---|
| Dimensions | 10.5 × 8.5 × 4.5 cm |
