PB01W Human Infrared Sensor AC100-240V - 180° Motion Detection, 12m Range
The PB01W is a passive infrared (PIR) motion sensor module operating on AC100-240V, designed for automatic lighting and security control in residential and commercial environments. It features a 180° detection angle, a 12-meter range, and is compatible with standard AC lighting circuits.
Features
- Passive Infrared (PIR) motion detection with 180° wide-angle coverage.
- 12-meter maximum detection range for reliable presence sensing.
- Wide AC voltage input range (100-240V AC, 50/60Hz) for global compatibility.
- Low standby power consumption of 0.5W for energy-efficient operation.
- Robust operating temperature range from -20°C to +40°C.
Out of stock

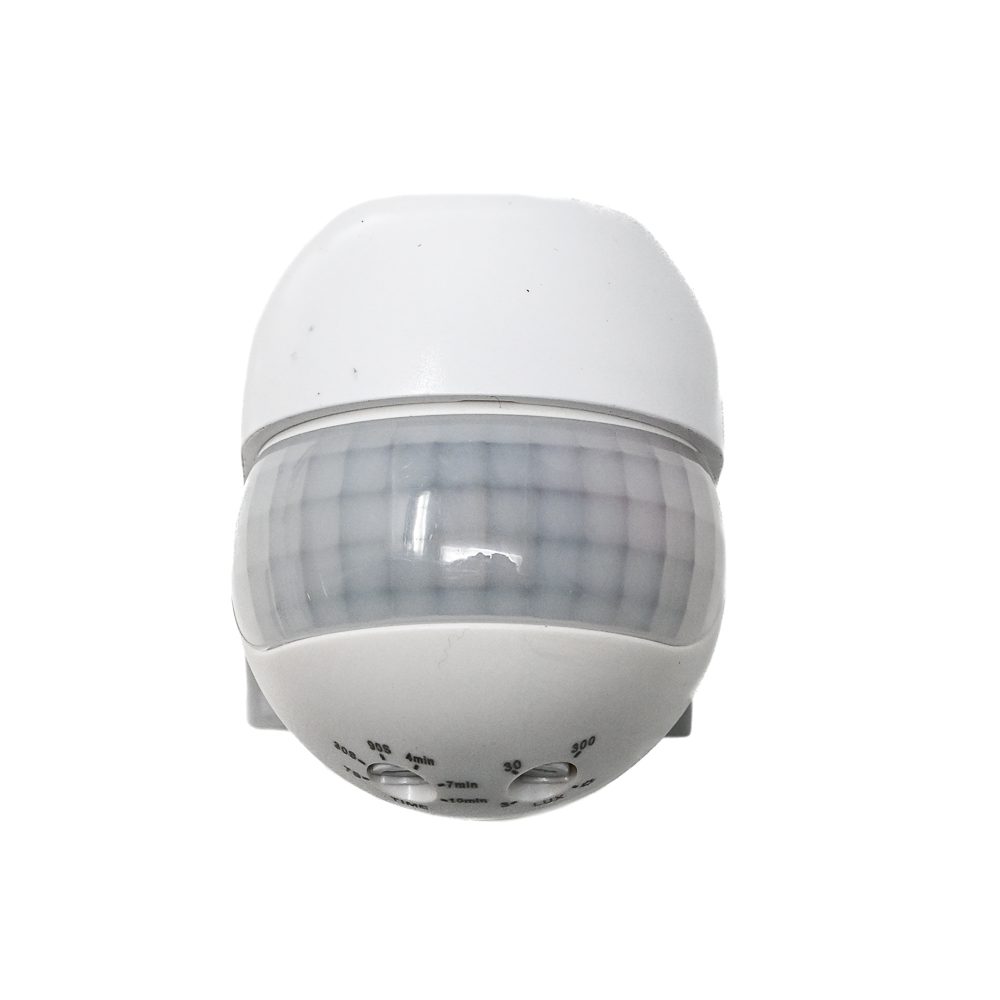

The PB01W Human Infrared Sensor utilizes a high-sensitivity pyroelectric PIR element to detect infrared radiation emitted by moving human bodies. The integrated Fresnel lens focuses IR signals onto the sensing element, and the onboard signal processing circuitry filters out environmental noise to trigger a relay output for load control. This design ensures reliable activation of connected lights, alarms, or other AC devices only when motion is present.

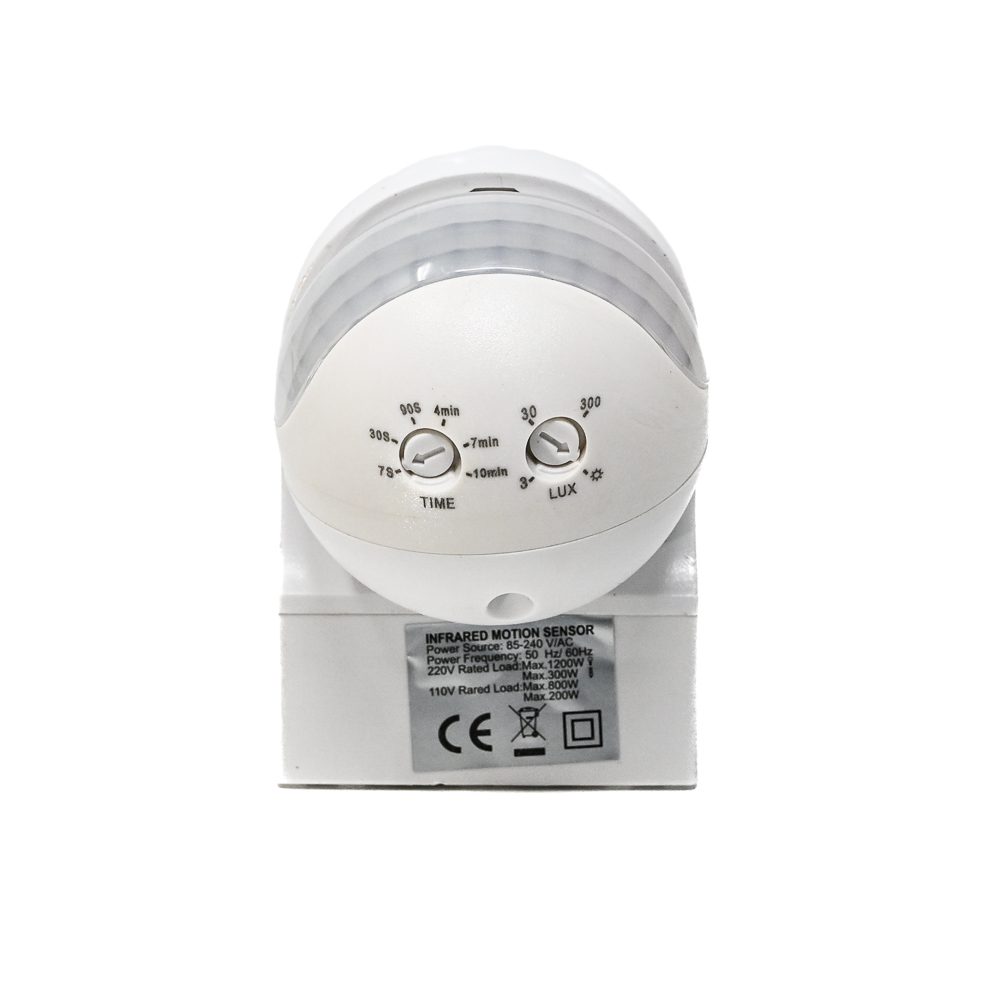

Built for durability, the sensor operates effectively in environments with up to 93% relative humidity. Its compact form factor and standard electrical box mounting make it straightforward to install at the recommended height of 1.8 to 2.5 meters for optimal coverage. The module includes configurable time-delay and day/night mode settings to tailor its operation to specific application needs.
Additional Information
| Weight | 0.089 kg |
|---|---|
| Dimensions | 8 × 6.6 cm |
