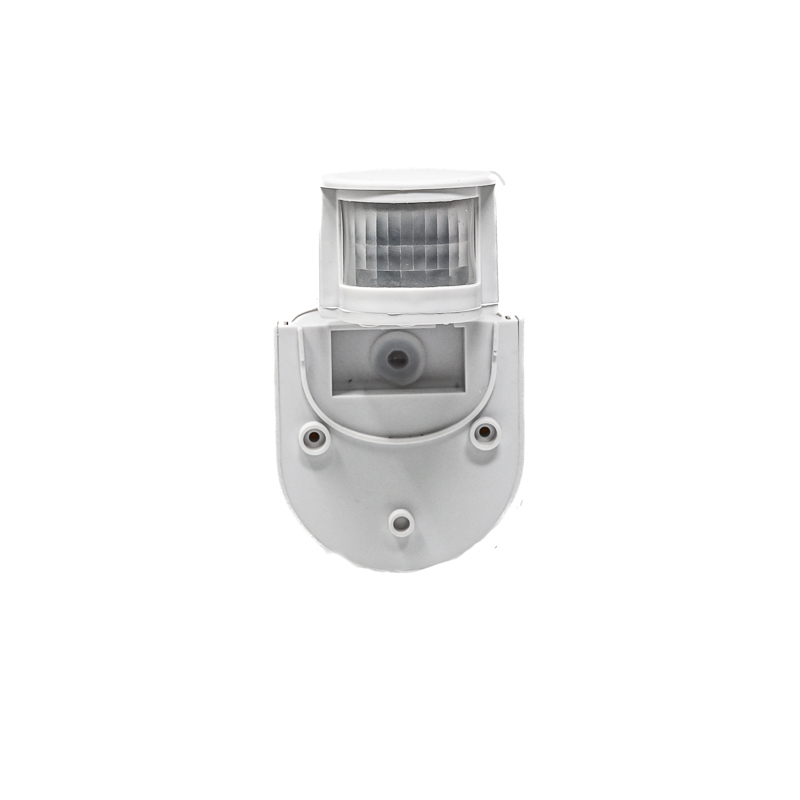

P806W Human Infrared Sensor AC100-240V - 180° Detection, Wall Mount
The P806W is a passive infrared (PIR) motion sensor module designed for direct AC line voltage operation (100-240V AC), enabling automated lighting and security control in residential and commercial installations. It features a 180° detection angle, adjustable sensitivity, and time delay for flexible integration into automation systems.
Features
- Wide AC Input Range: Operates directly from 100-240V AC, 50/60Hz, eliminating the need for an external DC power supply.
- Broad 180° Detection Field: Utilizes a Fresnel lens for wide-area coverage with a maximum detection range of up to 11 meters.
- Fully Adjustable Operation: Onboard potentiometers for sensitivity (SENS), time delay (5 sec to 8 min), and ambient light threshold (LUX).
- Flame-Retardant Housing: Constructed with safety-rated materials for reliable operation in electrical installations.

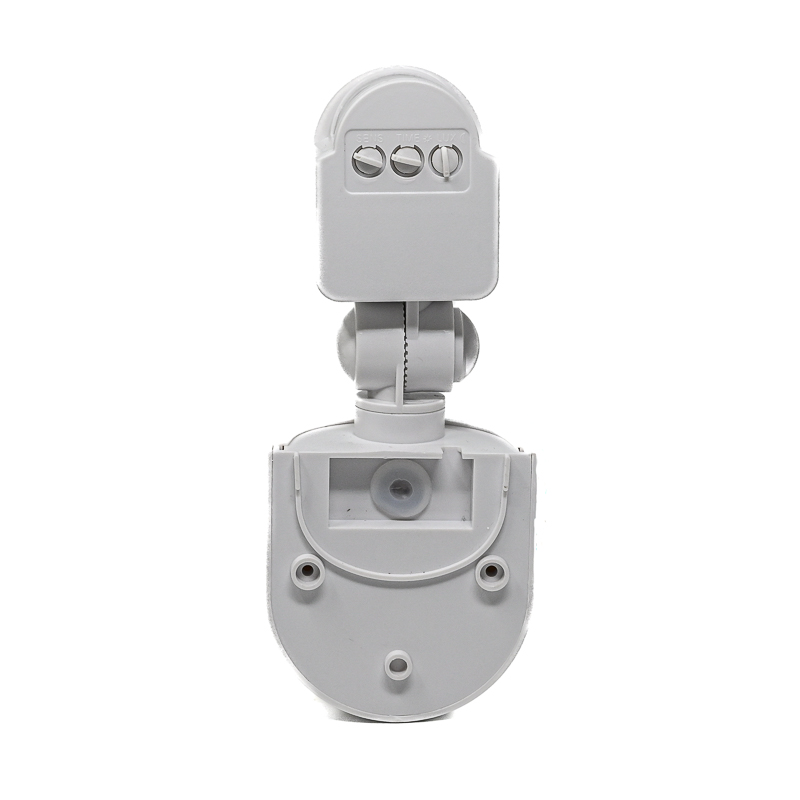

- Wall-Mount Design: Compact form factor (210 x 80 mm) with a 180° rotatable base for flexible positioning.
Out of stock
The P806W Human Infrared Sensor employs passive infrared (PIR) technology to detect motion by sensing changes in infrared radiation emitted by warm bodies. Its integrated circuitry conditions the signal and directly controls an AC load relay, making it a self-contained automation module suitable for lighting, ventilation, and security applications.
Engineered for durability, the sensor’s flame-retardant housing and wide operating voltage range ensure stable performance across various electrical environments and installation conditions. The adjustable parameters allow for fine-tuning to minimize false triggers and optimize energy savings based on specific site requirements.
Additional Information
| Weight | 0.188 kg |
|---|---|
| Dimensions | 21 × 8 cm |
