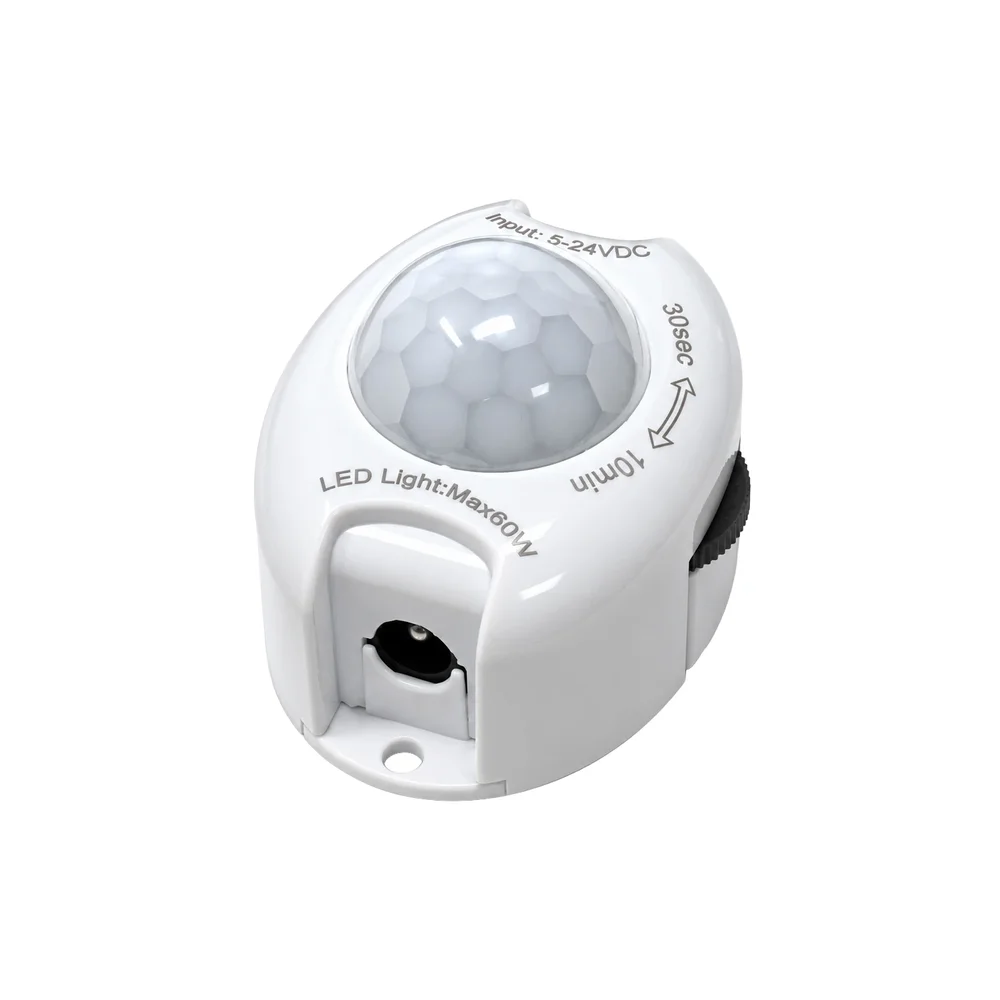

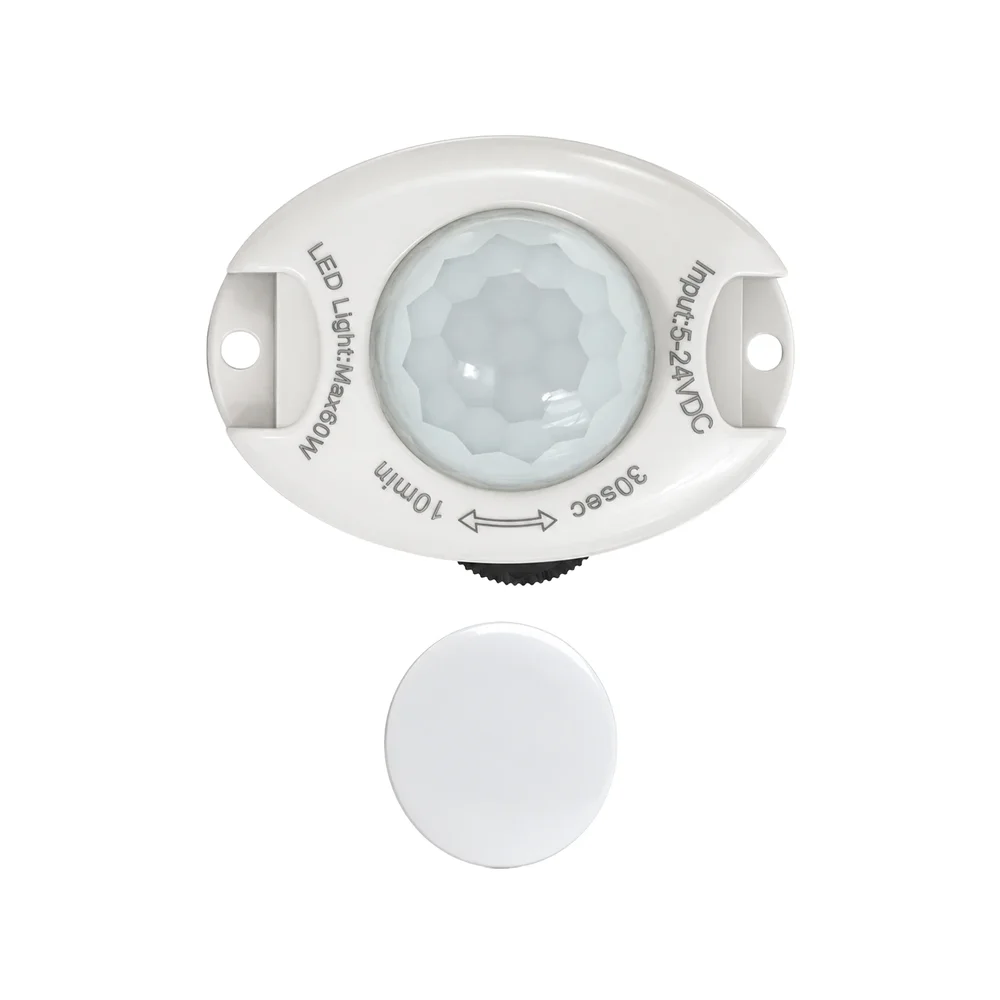

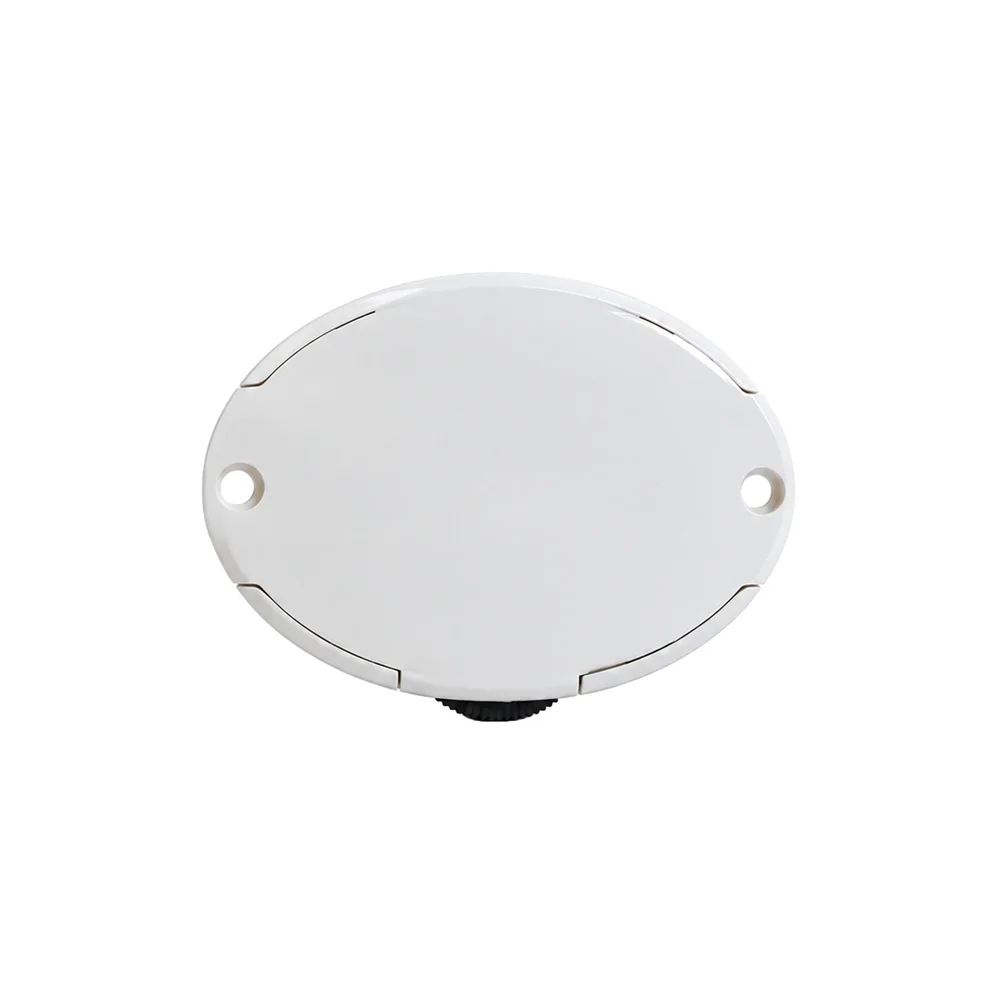

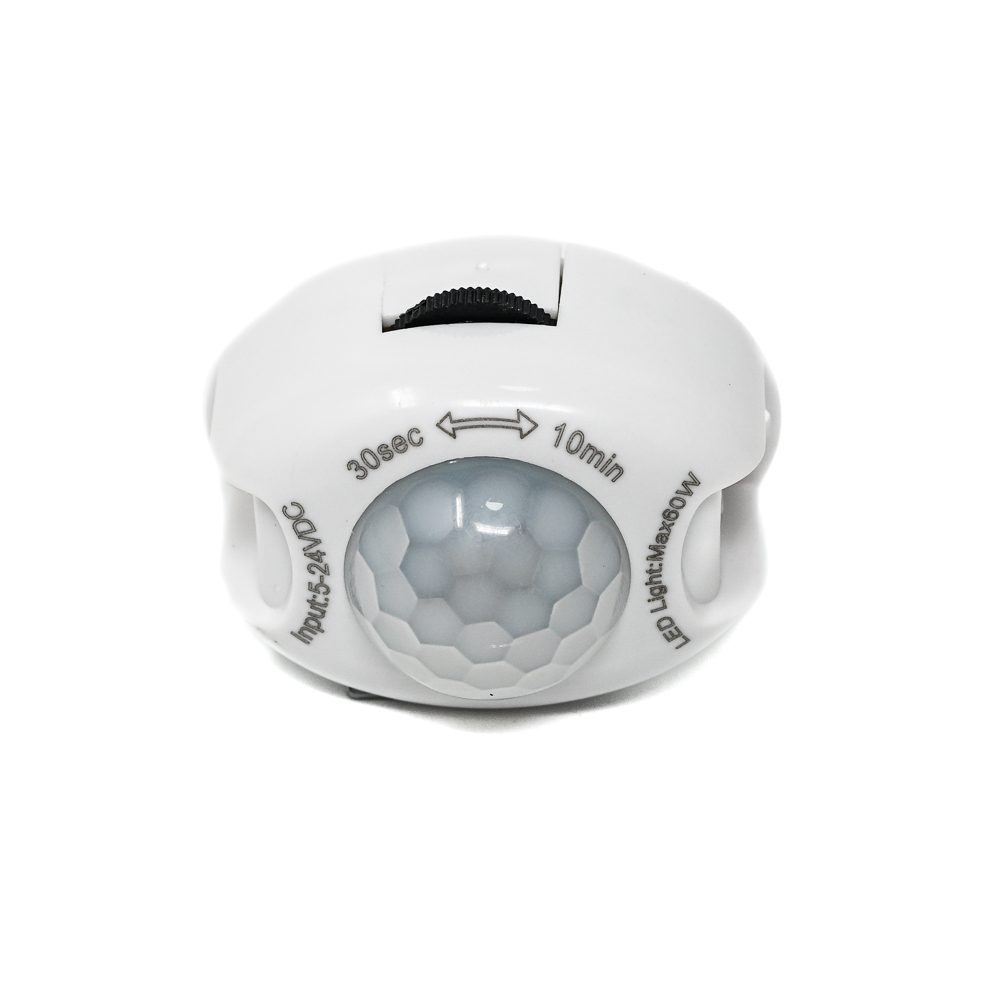

PIR9 Light Band Sensor DC5-24V - 120° Fresnel Lens, Screw Socket
The PIR9 Light Band Sensor is a DC 5-24V powered passive infrared (PIR) motion detector with a 120° Fresnel lens, designed for automatic lighting control in residential and commercial energy-saving systems. It features adjustable delay (1-10 minutes) and ambient light threshold settings for seamless integration into low-voltage automation setups.
Features
- Wide-Angle PIR Detection: 120° Fresnel lens provides broad coverage for reliable motion sensing.
- Wide Voltage Input: Operates from 5V to 24V DC, compatible with various low-voltage power supplies and control systems.
- Dual-Control Logic: Automatically triggers based on detected motion AND ambient light levels falling below a user-set threshold.
- Adjustable Timing: On-delay timer can be configured from 1 to 10 minutes after the last detected motion.
- Screw Terminal Interface: Simplifies wiring and installation for permanent fixture integration.
Out of stock
The PIR9 Light Band Sensor utilizes a passive infrared (PIR) sensing element paired with a 120° Fresnel lens to detect the thermal radiation emitted by moving objects, such as people. This detection triggers a relay output to control connected lighting fixtures. The module incorporates a built-in ambient light sensor (LDR) to prevent activation during daylight hours, with a manually adjustable threshold.
Designed for reliable, maintenance-free operation, the sensor is housed in a compact casing suitable for indoor installation. Its wide 5-24V DC input range ensures compatibility with common 12V or 24V security/automation systems, as well as 5V microcontroller-based projects, making it a versatile component for energy management and basic presence detection applications.
Additional Information
| Weight | 0.014 kg |
|---|
