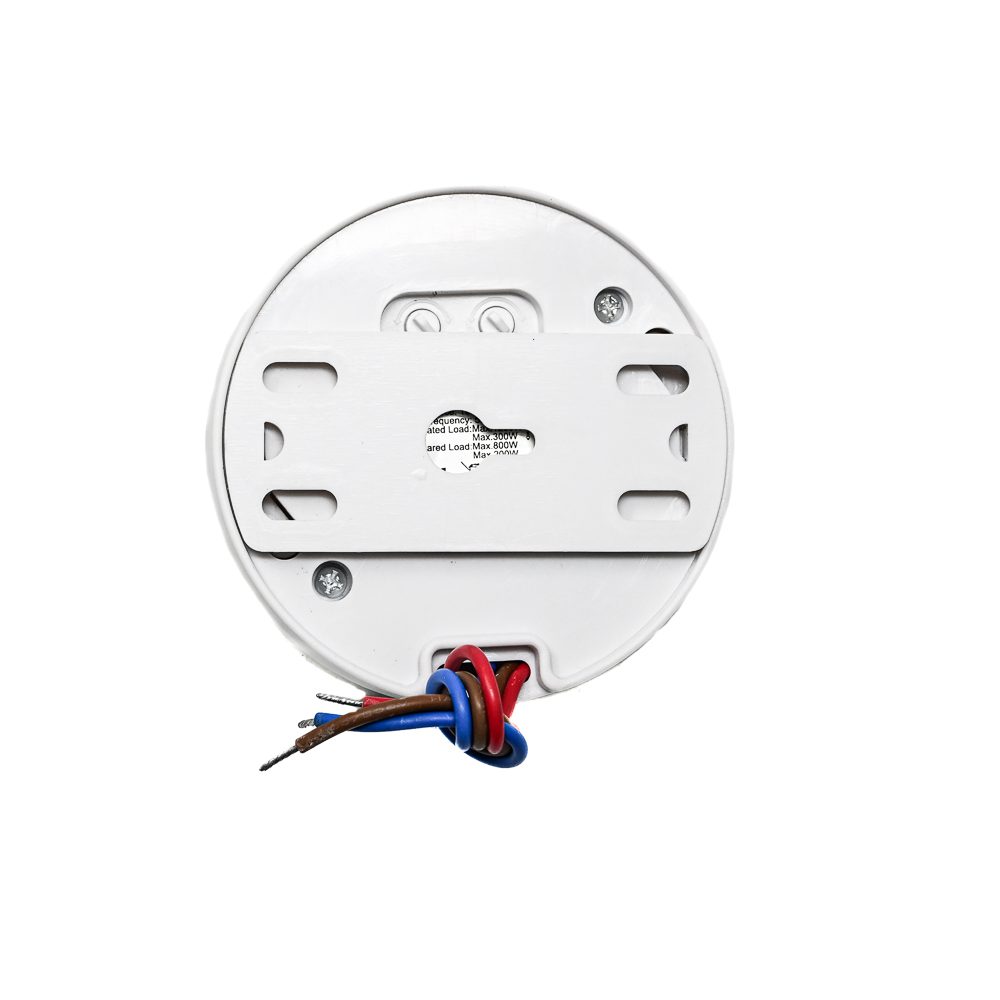

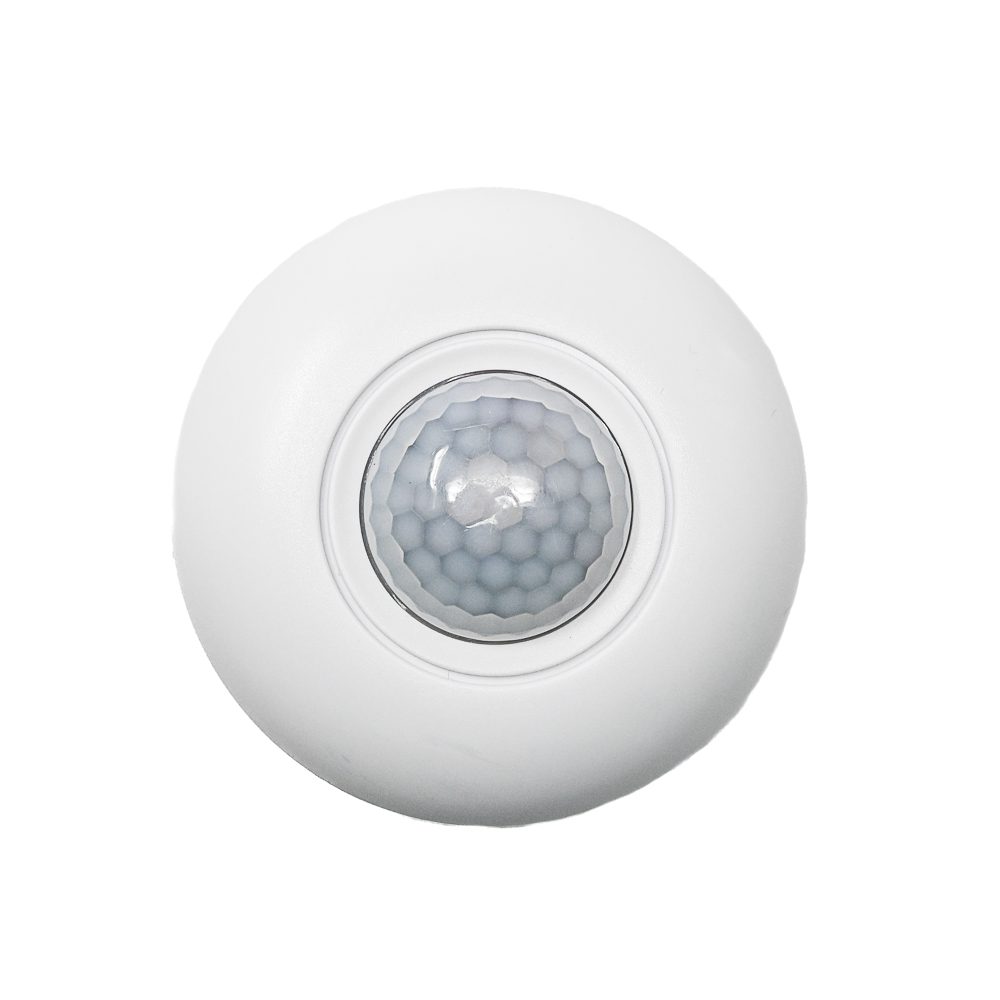

PX05 Human Infrared Sensor AC100-240V
The PX05 is a passive infrared (PIR) motion sensor module operating on a wide AC 100-240V range, designed for automatic lighting and device control in residential, office, and commercial environments. It features day/night detection and adjustable timing for energy-efficient operation.
Features
- Wide AC Voltage Input: Operates on 100-240V AC, 50/60Hz for global compatibility.
- PIR Motion Detection: Detects human movement within a 6-meter range and 120° horizontal / 360° top detection angles.
- Adjustable Time Delay: User-configurable activation period from 10 seconds (±3s) to 8 minutes (±2min).
- Day/Night Sensing: Automatic ambient light detection prevents unnecessary activation during daylight.
- Low Power Consumption: Consumes only 0.5W, enhancing energy-saving performance.
Out of stock
The PX05 Human Infrared Sensor utilizes a high-sensitivity passive infrared (PIR) element and integrated signal processing circuit to detect thermal radiation from moving human bodies. This triggers a relay output to control connected AC loads like lights or fans. The module is designed for direct mains voltage integration, eliminating the need for an external power supply or DC converter.
Engineered for reliability, the sensor operates effectively in environments with up to 93% relative humidity. Its adjustable time delay and continual reset feature ensure connected devices remain active as long as motion is present within the detection zone, providing both convenience and optimized energy savings. The compact form factor and standard electrical box mounting make installation straightforward for automation projects.
Additional Information
| Weight | 0.062 kg |
|---|---|
| Dimensions | 8.2 × 8.2 cm |
