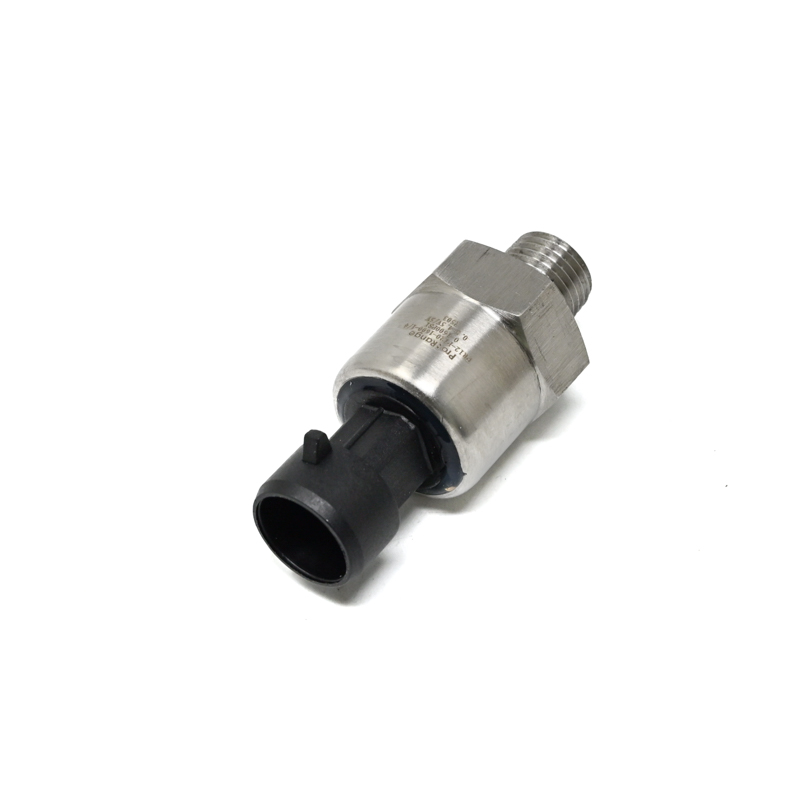

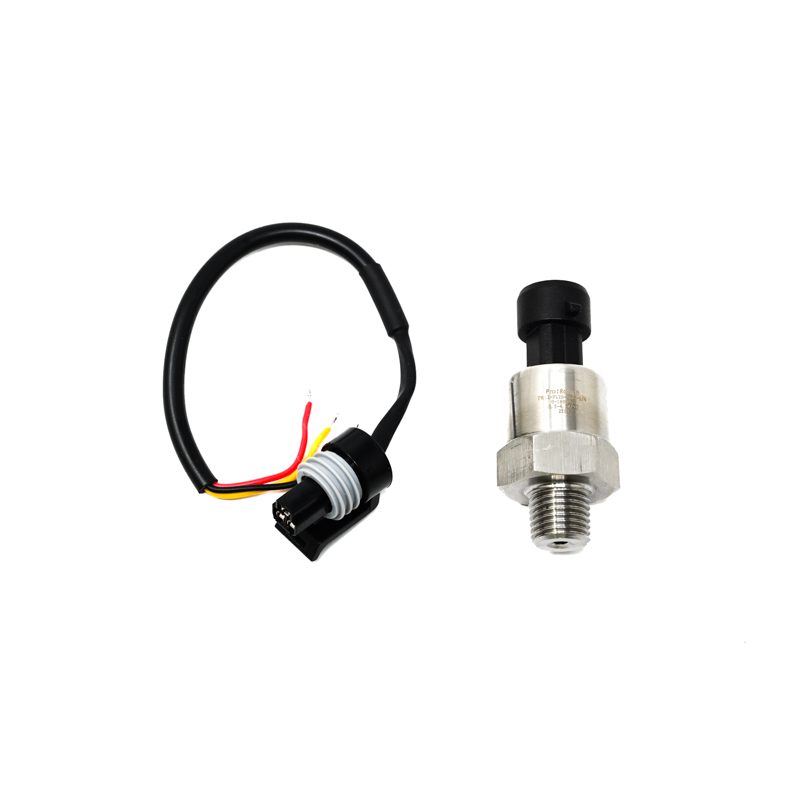

Pro-Range PR12-P120 Pressure Transducer 0-1600psi, 0.5-4.5V Output - NPT1/4 Thread
The Pro-Range PR12-P120 is a high-performance pressure transducer delivering a 0.5–4.5V analog output signal for pressures from 0 to 1600 psi. Featuring an NPT1/4 threaded port, it is engineered for direct integration into hydraulic systems, pneumatic controls, and industrial PLCs requiring reliable and accurate pressure monitoring.
Features
- Measures pressure from 0 to 1600 psi with high accuracy and stability.
- Provides a ratiometric 0.5–4.5V analog output signal (typically with a 5V DC supply).
- Features a standard NPT1/4 male thread for robust industrial piping and manifold installation.
- Compact, space-saving design suitable for integration into tight equipment spaces.
- Fast response time for dynamic pressure monitoring in automotive, hydraulic, and industrial control applications.
Out of stock
The Pro-Range PR12-P120 pressure transducer utilizes a high-quality stainless steel sensing element and internal signal conditioning to convert applied pressure into a precise linear voltage output. This design ensures reliable performance across its specified pressure range with minimal hysteresis and excellent long-term stability.
Engineered for durability, the transducer is housed in a robust metal casing suitable for industrial environments. The 0.5–4.5V output scale is directly proportional to the applied pressure, making it straightforward to interface with microcontrollers (like Arduino or PLC analog inputs), data acquisition systems, and process controllers that accept standard voltage signals.
Additional Information
| Weight | 0.098 kg |
|---|---|
| Dimensions | 8 × 4 × 4 cm |
