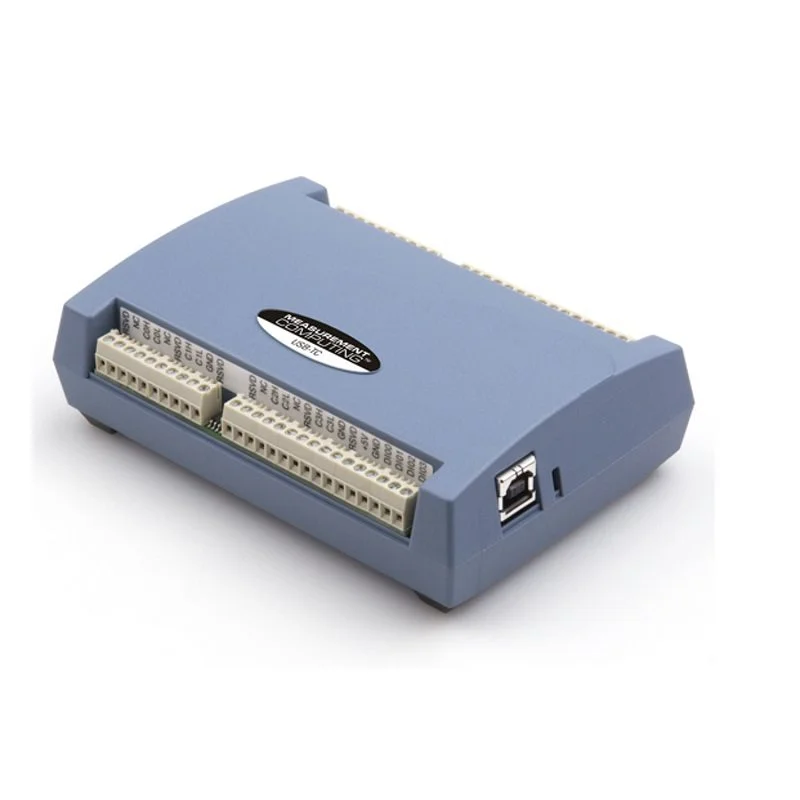

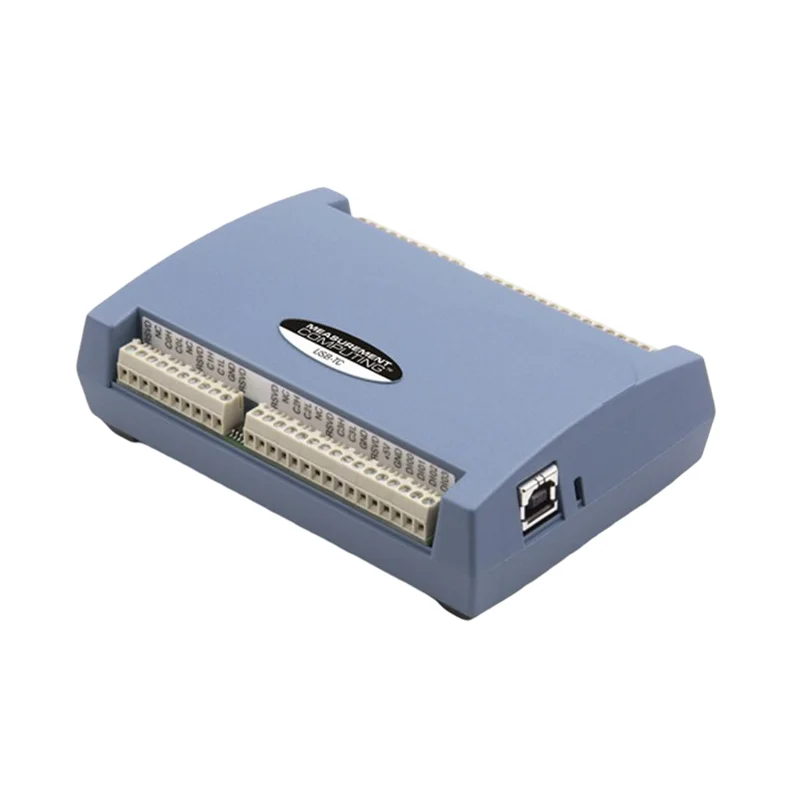

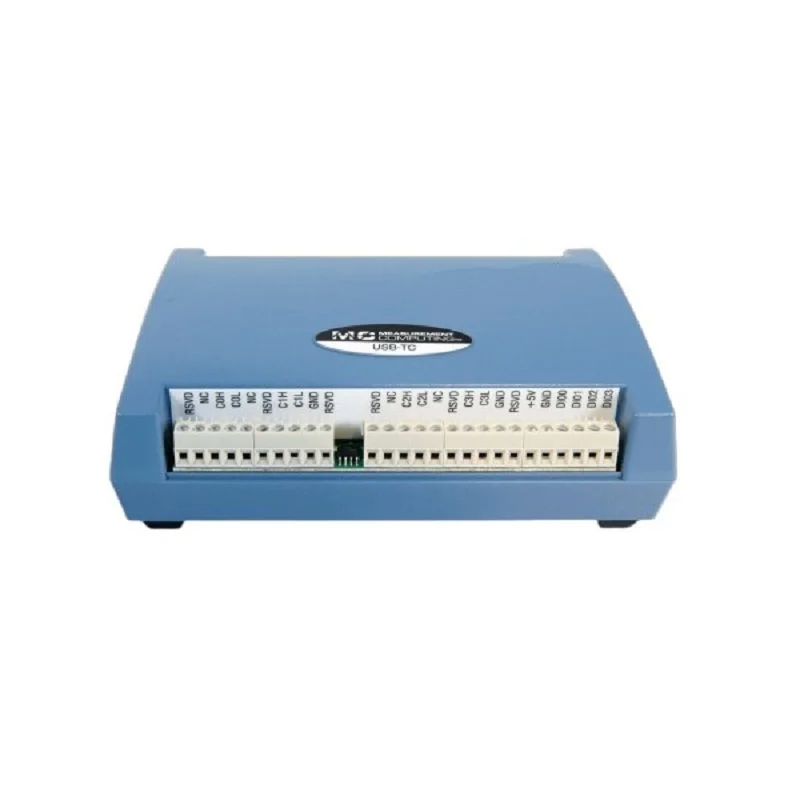

Digilent MCC USB-TEMP & TC Series USB DAQ Device
The Digilent MCC USB-TEMP and TC Series are USB-powered data acquisition (DAQ) devices designed for high-precision temperature and voltage measurement, supporting a wide range of thermocouple types and semiconductor sensors directly via software-configurable inputs.
Features
- Eight differential analog inputs with 24-bit resolution for high-accuracy sensor readings.
- Software-programmable support for J, K, R, S, T, N, E, and B type thermocouples, RTDs, thermistors, and voltage inputs.
- Integrated open thermocouple detection (OTD) alerts users to sensor connection faults.
- USB bus-powered operation eliminates the need for an external power supply.
- Includes eight digital I/O channels for flexible system integration and control.
Out of stock
The MCC USB-2001-TC is a compact, USB-based data acquisition module engineered for reliable temperature and voltage measurement in lab, industrial, and embedded monitoring applications. It features an onboard 20-bit ADC (marketed with 24-bit system resolution) that processes signals from eight differential analog inputs, ensuring accurate data capture from various sensor types without external signal conditioning.
This device simplifies sensor integration with standard miniature connectors and stores thermocouple type configurations onboard via software. Its open thermocouple detection circuitry actively monitors for broken sensor connections, enhancing data integrity. As a fully USB-powered unit, it offers a plug-and-play solution for portable data logging, environmental monitoring, and process control systems requiring precise multi-channel measurements.
Additional Information
| Weight | 0.576 kg |
|---|---|
| Dimensions | 32 × 23 × 7 cm |
