QAWRUMS GH150 High Temperature AE Sensor, 260kHz, -45℃ to 600℃, BNC Connector
The QAWRUMS GH150 is a high-temperature acoustic emission sensor designed for structural health monitoring in extreme environments up to 600°C. Featuring a BNC output and a 3-meter integral cable, it integrates directly with PAS/PAV preamplifiers for industrial condition monitoring systems.
Features
- Ultra-high temperature operation from -45°C to +600°C
- 260 kHz resonant frequency with a 50 kHz to 600 kHz response range
- Full stainless Invar steel and ceramic face construction for thermal stability
- IP68-rated housing with a 20 cm heat-resistant metal tube

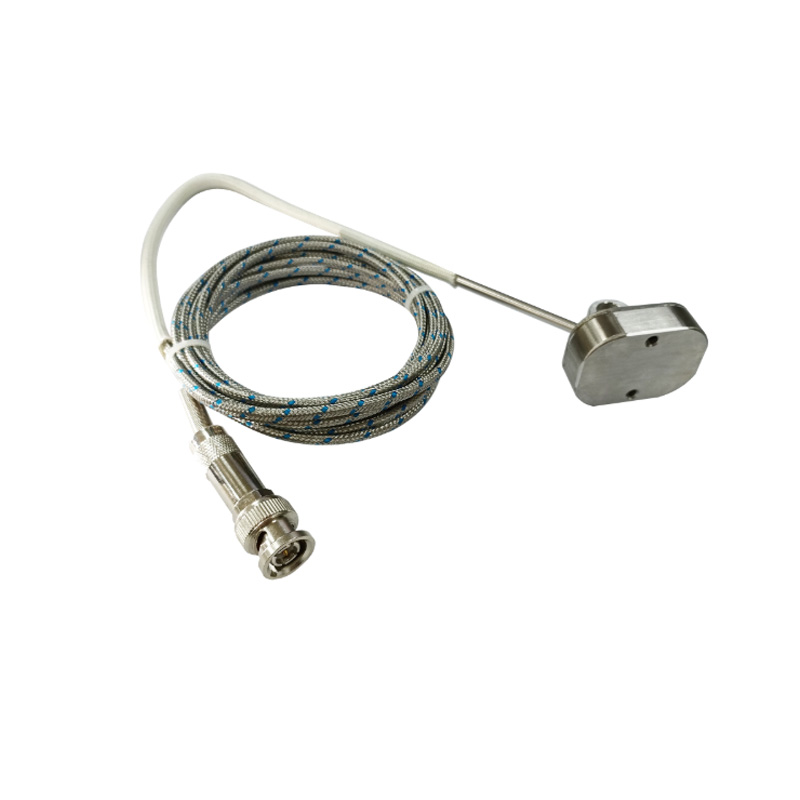

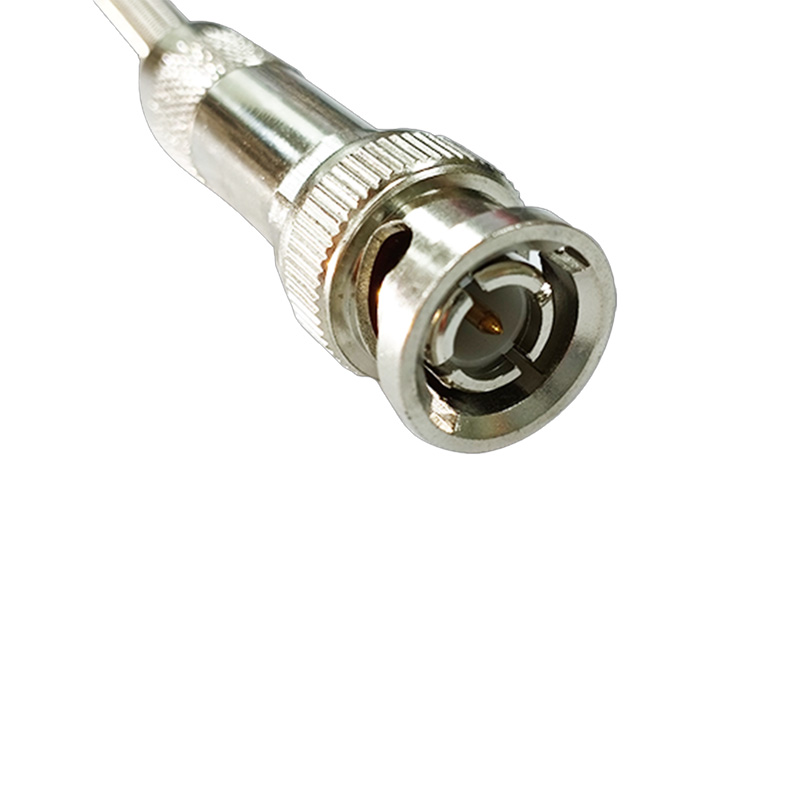

- BNC connector output with a 3-meter integral high-temperature cable
Out of stock
The GH150 Acoustic Emission Sensor utilizes a piezoelectric sensing element housed in a stainless Invar steel body with a ceramic face, engineered for minimal thermal expansion and high mechanical integrity. Its wide frequency response captures a broad spectrum of acoustic emission events, from low-frequency crack propagation to high-frequency leak signals, making it suitable for precise fault detection.
Designed for permanent installation in harsh industrial settings, the sensor features a built-in magnetic base for secure mounting on ferromagnetic surfaces and an IP68 protection rating against dust and water ingress. The integrated 3-meter cable simplifies routing in high-temperature zones, such as those found in power generation, petrochemical, and heavy manufacturing facilities.
Additional Information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 4 × 3 cm |
