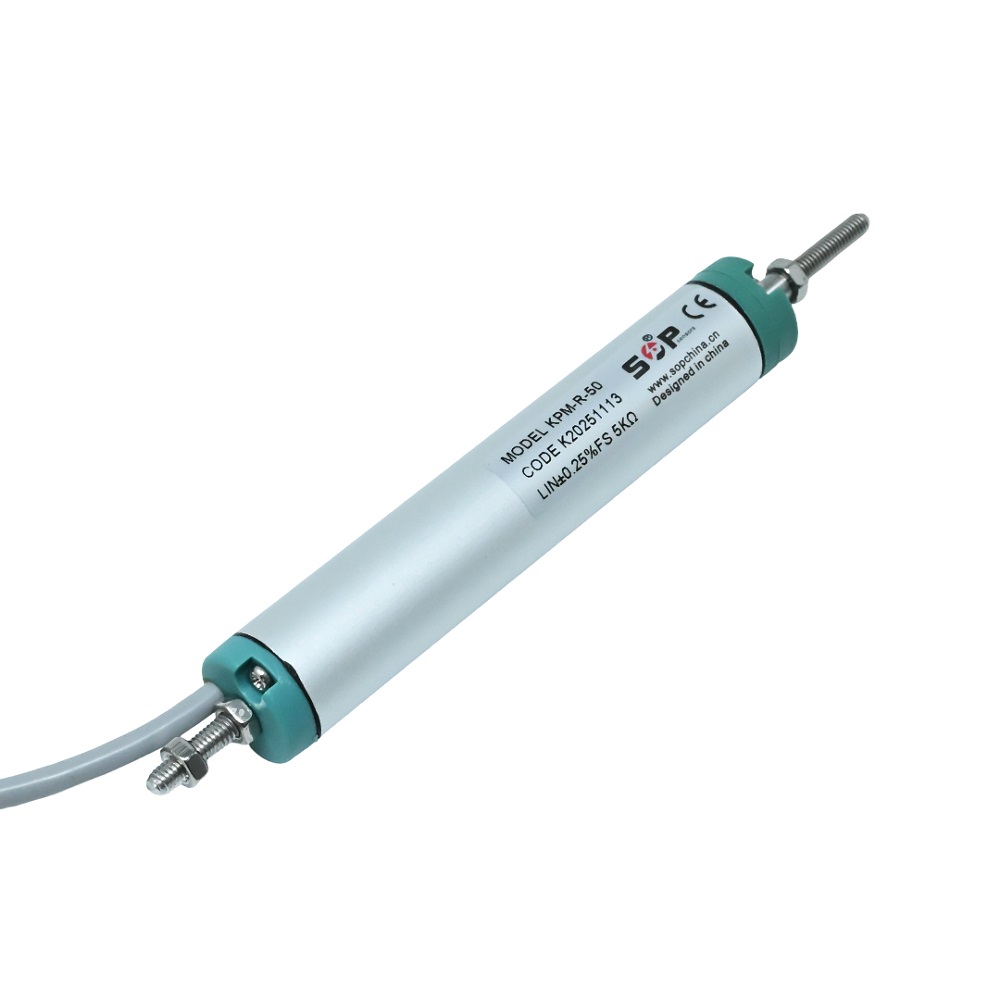

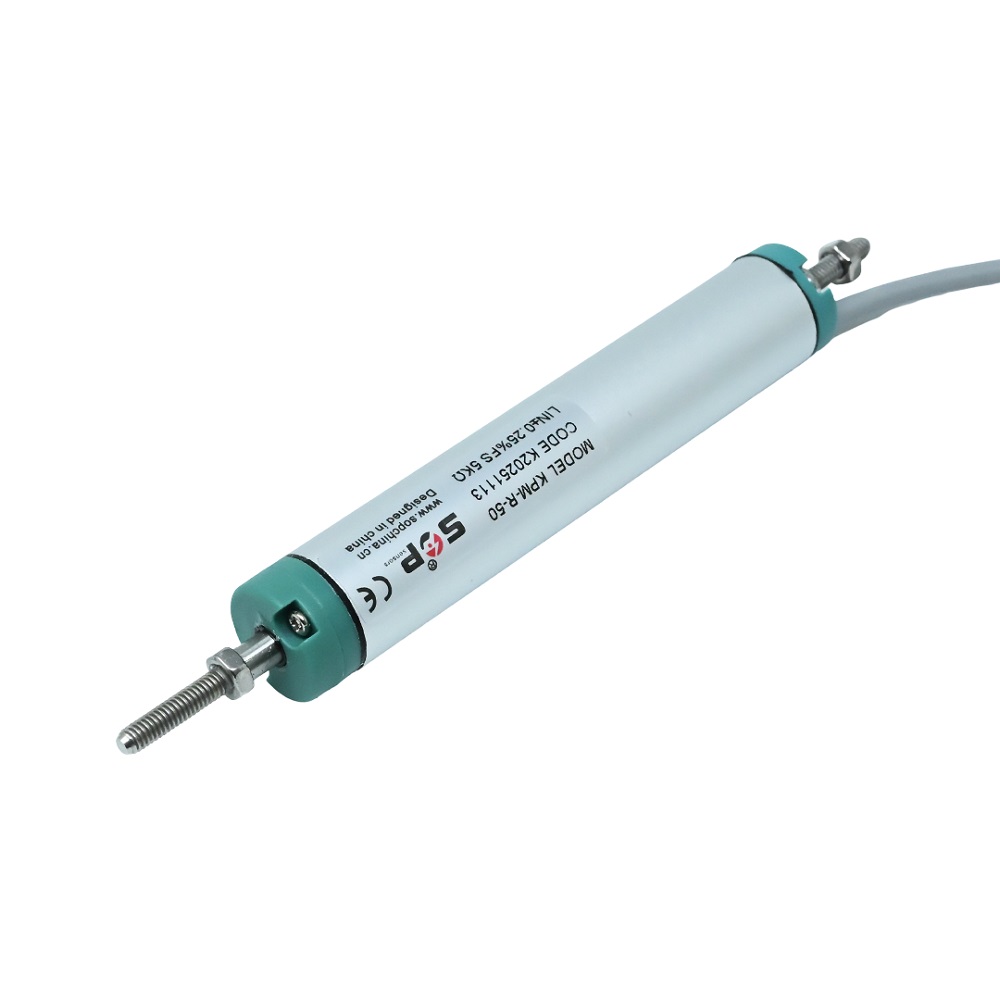

SOP KPM-R-50mm Linear Displacement Sensor, 5KΩ Resistance, ≤28 VDC, Mini Articulated Rod Type
The SOP KPM-R-50mm is a compact linear displacement sensor utilizing a 5KΩ resistive potentiometer for precise 0-50mm stroke measurement. Operating at ≤28VDC, it provides a stable analog resistance output suitable for integration with industrial PLCs, DAQ systems, and motion control platforms.
Features
- 50mm stroke length for precise linear position measurement
- 5KΩ resistive potentiometer provides stable analog output
- Operates at ≤28VDC with low 10µA current draw

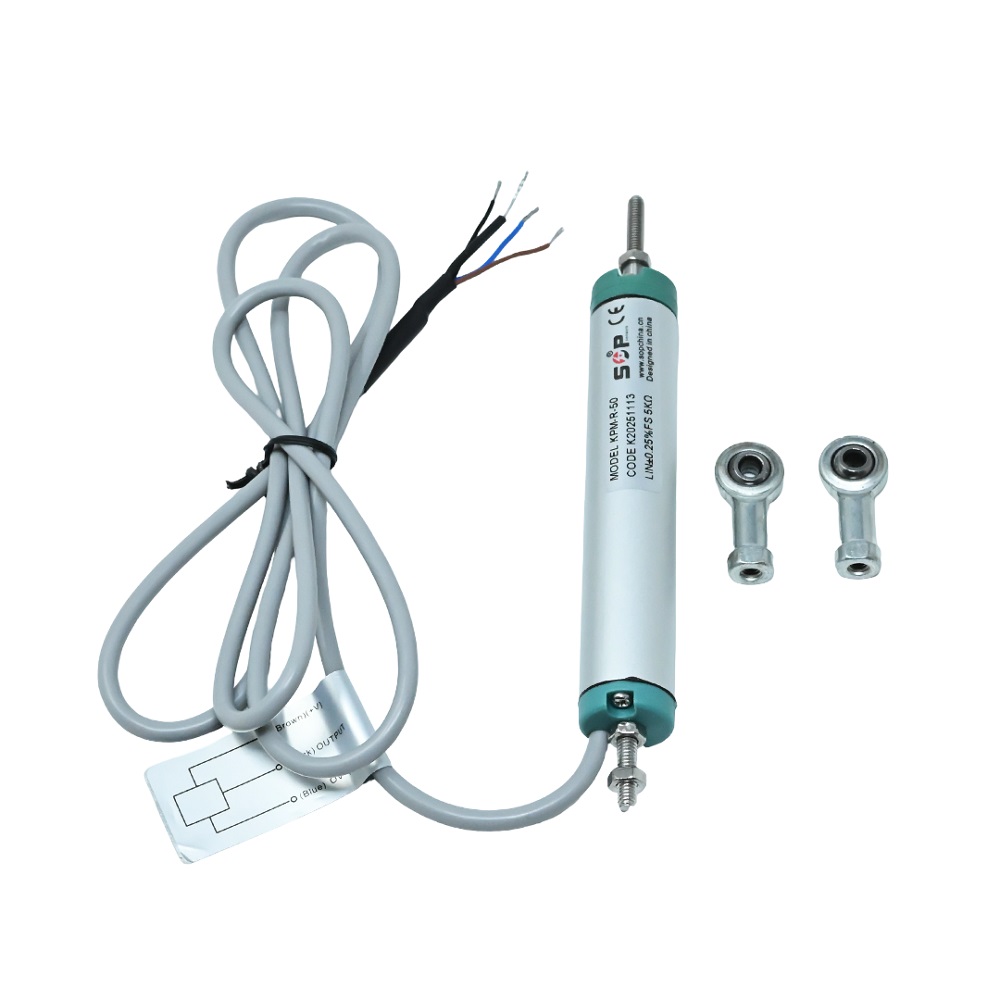

- Mini articulated rod type with bracket mount for flexible installation
- Durable construction for reliable performance in industrial environments
Out of stock
The SOP KPM-R-50mm Linear Displacement Sensor is a precision electromechanical component based on a resistive potentiometer sensing principle. Its 5KΩ resistive element provides a direct, proportional analog output corresponding to the position of the internal wiper along a 50mm stroke. This straightforward design ensures high repeatability and minimal signal conditioning requirements.
Engineered for industrial durability, the sensor features a smooth sliding mechanism housed within a compact body measuring 18.4mm in diameter. With an operating voltage up to 28VDC and an extremely low 10µA current consumption, it is designed for integration into energy-conscious automation systems, structural monitoring setups, and precision testing equipment where reliable short-stroke position feedback is critical.
Additional Information
| Weight | 0.077 kg |
|---|---|
| Dimensions | 14.2 cm |
