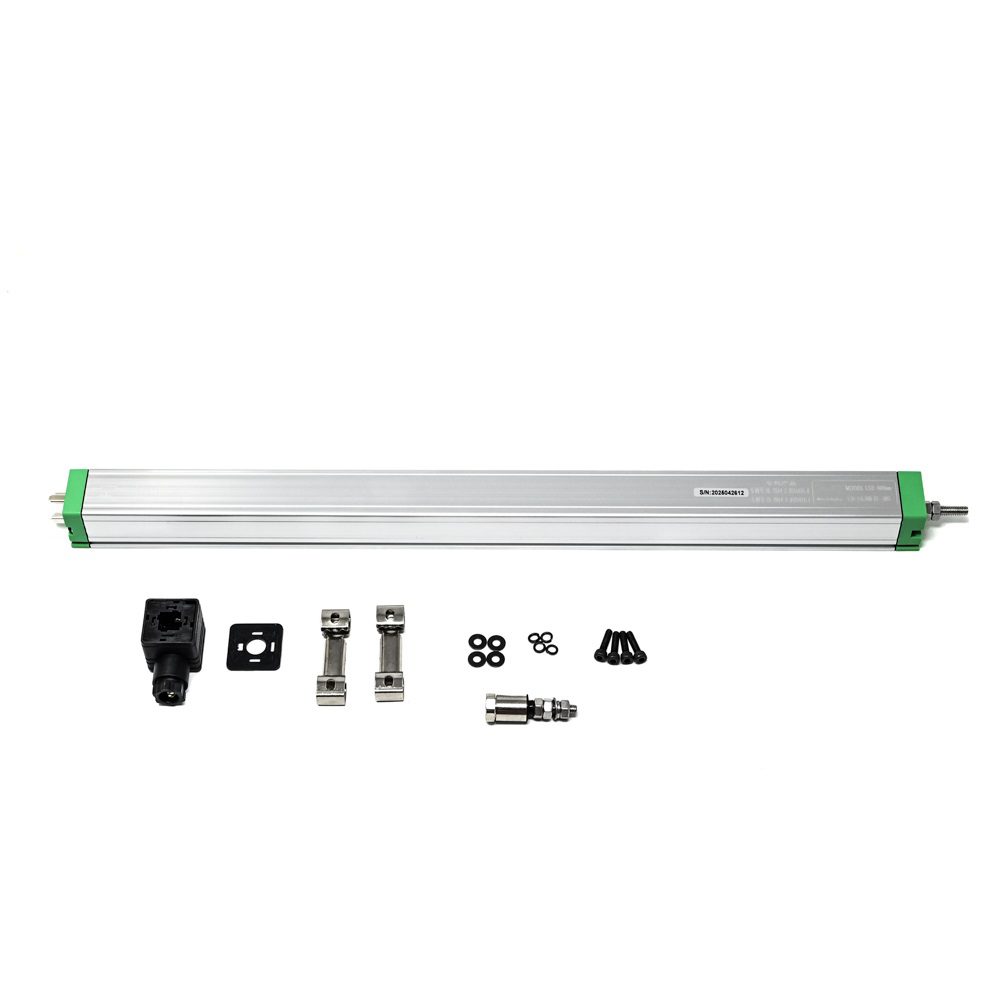

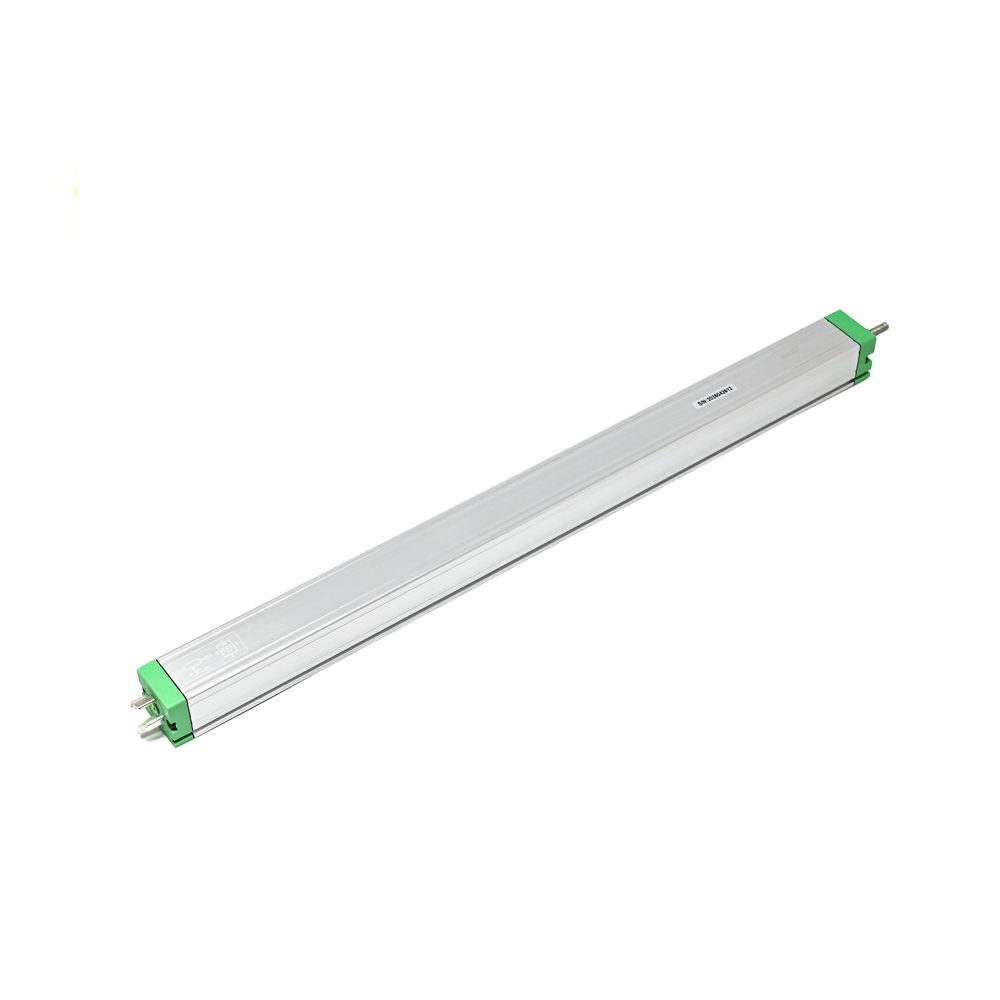

MIRAN LS2-400MM Linear Displacement Sensor 0-400mm Range - Flange Mount, Rod-Pull Type
The MIRAN LS2-400MM is an industrial-grade linear displacement sensor providing high-precision 0-400mm position feedback via an analog resistance output. Its robust flange-mount, rod-pull design ensures reliable integration into machine tools, injection molding equipment, and general industrial automation systems requiring durable, long-life position sensing.
Features
- High-precision 0-400mm linear measurement range with ±0.05% independent linearity.
- Industrial-grade conductive plastic resistive potentiometer with rod-pull mechanical structure.
- Rugged construction with enhanced sealing for harsh, high-vibration environments.
- Extreme operating temperature range from -60°C to +150°C.
- Tested for over 100 million reciprocating cycles for long-term reliability.
Out of stock
The LS2-400MM linear displacement sensor utilizes a conductive plastic resistive potentiometer technology, translating linear rod movement into a precise analog resistance output. This design ensures minimal electrical noise and high signal stability, making it suitable for closed-loop control systems. The sensor’s robust mechanical structure and enhanced sealing provide superior protection against dust, moisture, and contaminants common in industrial settings.
Engineered for demanding applications, the sensor operates across an extreme temperature range of -60°C to +150°C and can withstand speeds up to 10 m/s. Its construction incorporates high-quality imported components and a patented design, validated through rigorous testing for over 100 million cycles, guaranteeing consistent performance and longevity in automation, machine tools, and injection molding environments.
Additional Information
| Weight | 0.592 kg |
|---|---|
| Dimensions | 5.25 × 3.05 cm |
