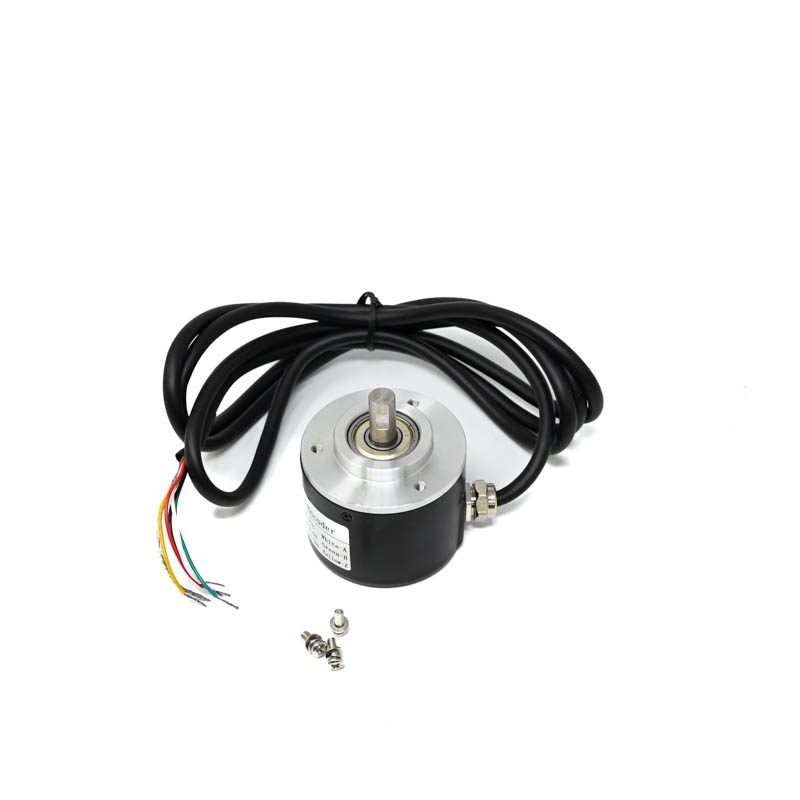

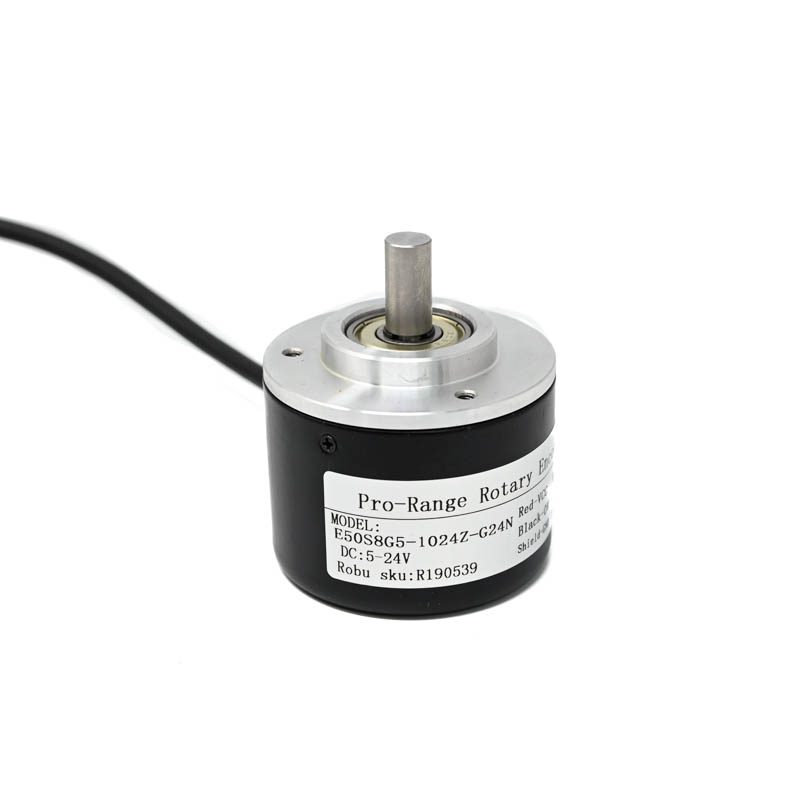

Pro-Range E50S8G5-1024Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 1024 PPR

The encoder supports a wide input voltage range from 5V to 24V DC. This flexibility allows it to be powered directly from common microcontroller boards (like Arduino's 5V pin) or integrated into standard 12V or 24V industrial control panels without requiring an additional voltage regulator.

The A and B channels provide two square-wave signals in quadrature (90 degrees out of phase). The phase relationship indicates the direction of rotation. The Z channel provides a single index pulse per full revolution, serving as an absolute reference point. These signals are typically read by a dedicated encoder interface, PLC high-speed counter, or microcontroller with interrupt pins.

The encoder housing has a 50mm outer diameter and is designed for panel mounting via a 38mm diameter PCB hole pattern. Ensure the mounting surface is flat and secure to prevent misalignment, which can affect signal accuracy. The shaft is typically coupled directly to the motor or rotating element using a flexible coupling to minimize radial load.

Yes, with a resolution of 1024 PPR and a photoelectric sensing method, this encoder is capable of high rotational speeds. The maximum frequency response will depend on the connected controller's input capabilities. For very high RPM applications, verify that your controller can process the resulting pulse frequency (RPM * PPR / 60).
