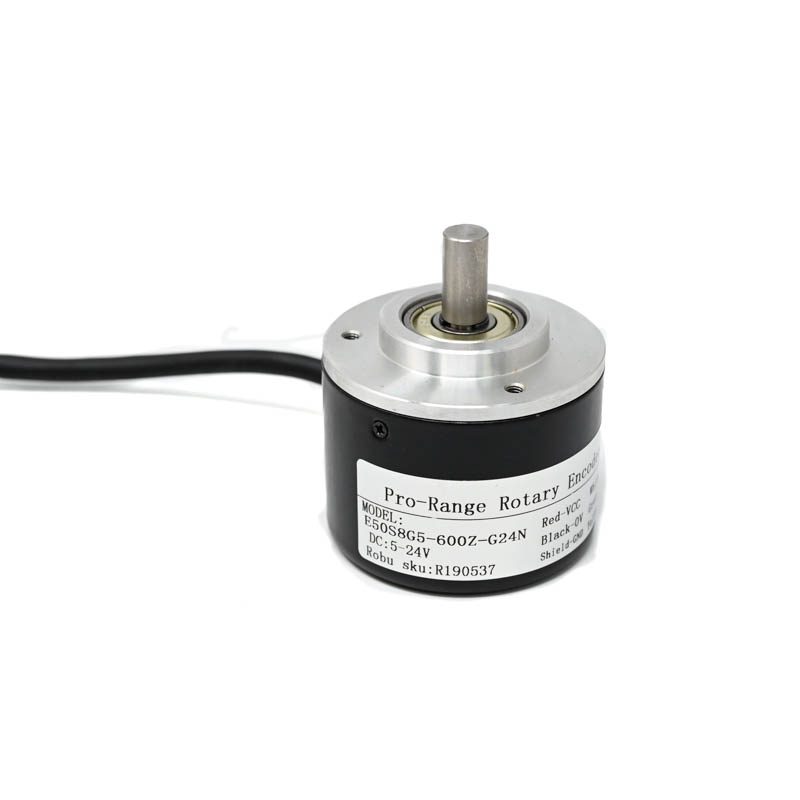

Pro-Range E50S8G5-600Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 600 PPR

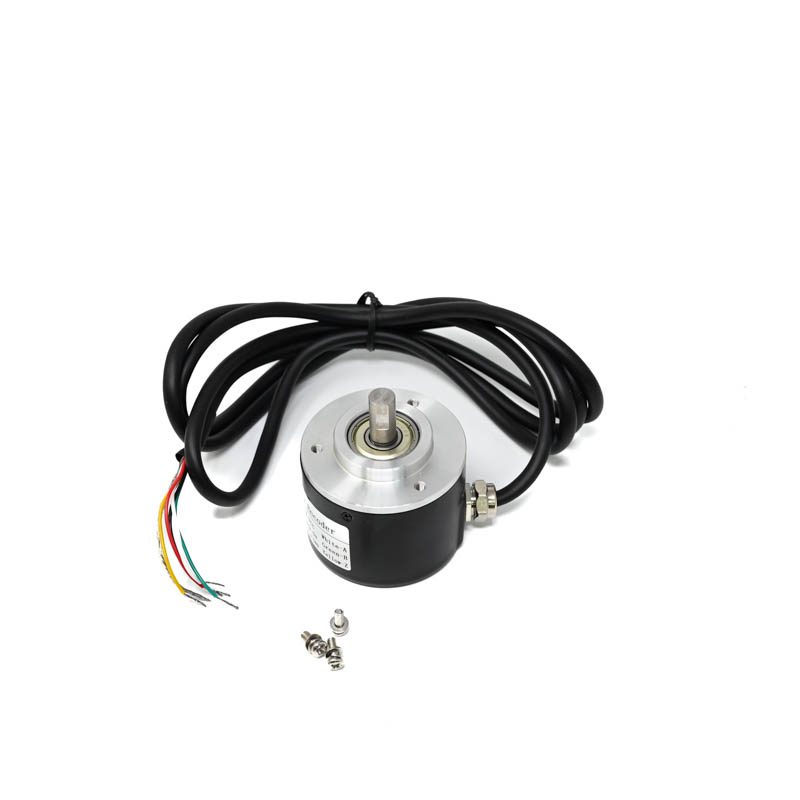

Pro-Range E50S8G5-600Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 600 PPR - Image 2
SKU: SENS-2619
📋 GST Invoice Available

Pro-Range E50S8G5-600Z-G24N Rotary Incremental Encoder - 50mm, Photoelectric, ABZ 3 Channels, 600 PPR

₹1,619.00 (Inclusive of all taxes)
Out of Stock

The Pro-Range E50S8G5-600Z-G24N is a photoelectric rotary incremental encoder delivering 600 PPR resolution with ABZ three-channel output for precise position and speed feedback. Compatible with 5-24V DC systems, it is engineered for integration into industrial automation, robotics, and motion control platforms.

Features

  • 600 Pulses Per Revolution (PPR) resolution for high-precision angular position and speed measurement.
  • ABZ three-channel output (A, B, Z index) provides reliable quadrature and reference pulse signals.
  • Wide 5V to 24V DC operating voltage range for flexible integration with PLCs, microcontrollers, and industrial drives.
  • Compact 50mm diameter housing with a 38mm PCB mounting hole pattern for straightforward mechanical installation.
  • Photoelectric sensing principle ensures stable, contactless operation with high repeatability and long service life.

Out of stock

Description

The E50S8G5-600Z-G24N encoder utilizes a photoelectric (optical) sensing mechanism, where an LED light source and photodetector read a patterned code disc to generate precise digital pulses. This contactless design minimizes mechanical wear and provides high signal integrity for demanding motion control environments.

Featuring a robust housing, this encoder is built for industrial durability. The ABZ output channels allow for direction detection (via A and B quadrature) and a once-per-revolution index (Z) pulse for absolute reference, making it suitable for closed-loop servo systems, CNC machinery, and automated positioning stages.

Key Features

  • High-Resolution Optical Sensing: Delivers 600 pulses per revolution (PPR) for accurate velocity and position feedback.
  • Multi-Channel Quadrature Output: ABZ three-channel TTL-compatible signals enable direction sensing and a precise home reference.
  • Broad Voltage Compatibility: Operates from 5V to 24V DC, supporting direct connection to a wide range of industrial controllers and logic circuits.
  • Optimized Mechanical Design: Compact 50mm diameter form factor with standardized 38mm mounting hole diameter for easy panel integration.
  • Durable Construction: Engineered for reliable performance in industrial settings with stable photoelectric internals.
  • Standard Shaft Interface: Features an 8mm diameter shaft for direct coupling to motors and rotating machinery.

Applications

  • Precision speed and position feedback in servo motors and stepper motor drives.
  • Axis positioning and homing in CNC milling machines, lathes, and 3D printers.
  • Rotational speed monitoring in conveyor systems, packaging machinery, and industrial automation.
  • Angular measurement and closed-loop control in robotic joints and articulated arms.
  • Velocity regulation and motion profiling in textile, printing, and material handling equipment.

Technical Specifications

Manufacturer Part NumberE50S8G5-600Z-G24N
Encoder TypeRotary Incremental, Photoelectric
Resolution (PPR)600 Pulses Per Revolution
Output ChannelsABZ (3 Channels)
Operating Voltage5V to 24V DC
Output SignalTTL Quadrature (A, B, Z)
Housing Diameter50 mm
Shaft Diameter8 mm
Mounting Hole Diameter38 mm
Shipping Weight0.213 kg
Shipping Dimensions8.5 x 8.5 x 6.5 cm

Frequently Asked Questions

What is the operating voltage range for this Pro-Range encoder?

The encoder is designed to operate from 5V to 24V DC. This wide range allows for direct compatibility with common microcontroller logic levels (5V) as well as standard industrial PLC and drive supply voltages (24V), providing significant flexibility in system integration.

How do I interpret the ABZ output signals from this encoder?

The A and B channels produce two square wave signals in quadrature (90 degrees out of phase). The phase relationship indicates direction of rotation. The Z channel provides a single index pulse per complete revolution, used as an absolute reference point for homing or position reset in control systems.

What is the physical mounting specification for this 50mm encoder?

The encoder housing has a 50mm outer diameter. It is designed for panel mounting via a 38mm diameter through-hole. The shaft is 8mm in diameter, requiring a matching coupling to connect to your motor or rotating axle for accurate motion transfer.

Can this encoder be used for speed control applications?

Yes, the 600 PPR resolution provides high-frequency pulse output directly proportional to rotational speed. By measuring the frequency of the A or B channel pulses, a controller can accurately calculate RPM for precise speed regulation in motor drives, conveyors, or spindle controls.

Is any pull-up resistor or signal conditioning required for the outputs?

The TTL-level outputs are typically designed to interface directly with digital inputs on controllers. However, for long cable runs or noisy industrial environments, using external pull-up resistors (if not internally provided) and shielded cables is recommended to ensure signal integrity and noise immunity.

Package Includes

  • 1 x Pro-Range E50S8G5-600Z-G24N Rotary Incremental Encoder

Additional Information

Weight 0.213 kg
Dimensions 8.5 × 8.5 × 6.5 cm
