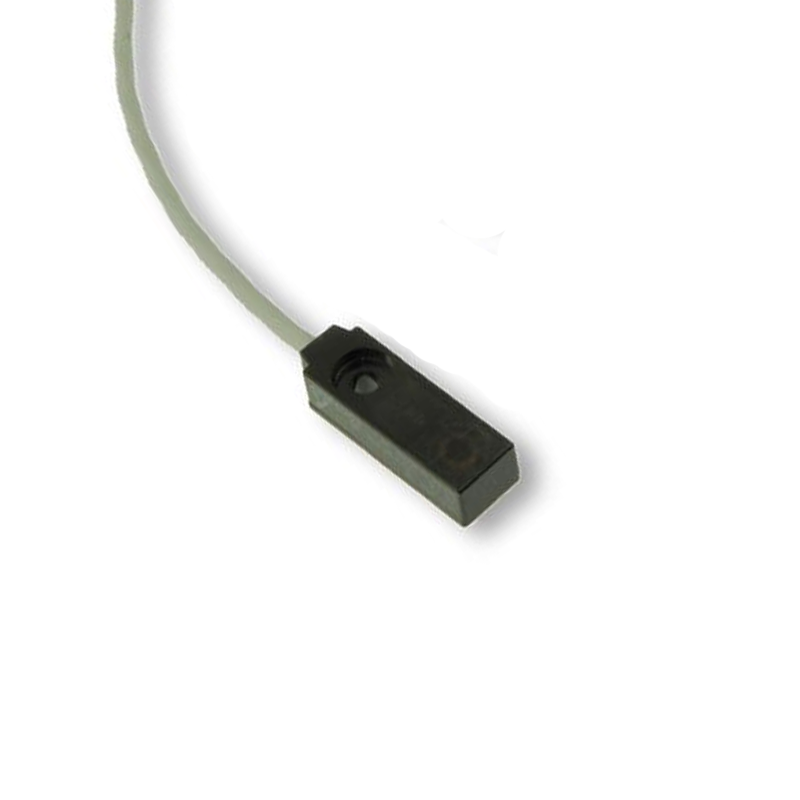

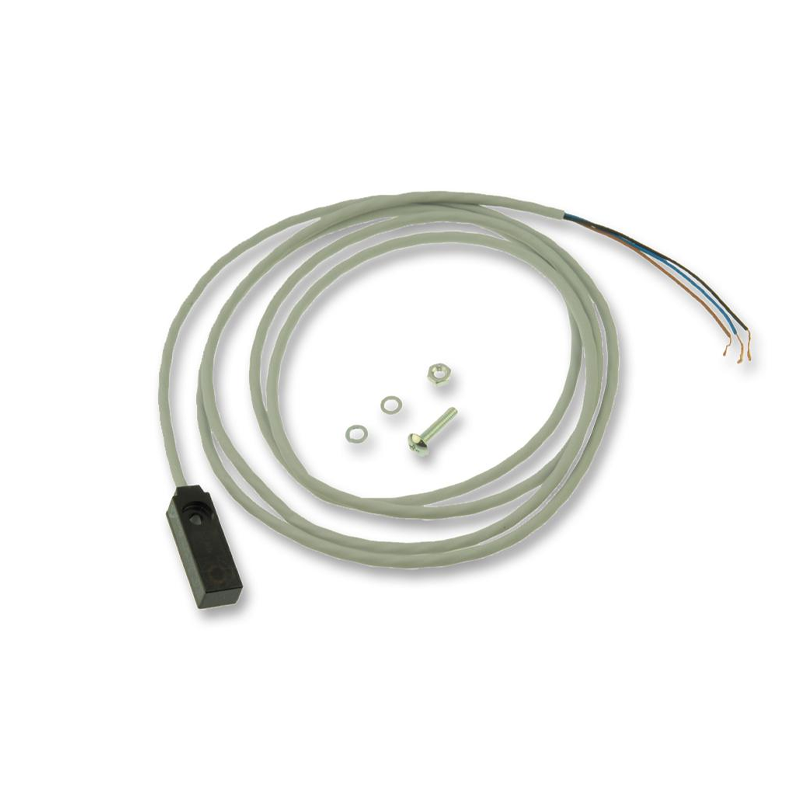

Pepperl+Fuchs APMD3D1 Inductive Proximity Sensor, PNP-NO, 12-24V DC, 2.5mm Range
The Pepperl+Fuchs APMD3D1 is a compact, IP67-rated inductive proximity sensor with a 2.5mm sensing range and PNP normally-open output, designed for direct integration with 12-24V DC industrial PLCs and control systems for reliable non-contact metal detection.
Features
- PNP Normally-Open (Sourcing) transistor output for direct PLC interface compatibility.
- Precise 2.5mm inductive sensing range for reliable metal object detection.
- Wide 12-24V DC supply voltage range with reverse polarity protection.
- IP67-rated housing ensures durability in harsh industrial environments.
- Integrated short-circuit, overload, and reverse polarity protection circuits.
Out of stock
The APMD3D1 is a non-contact inductive proximity sensor engineered for industrial automation. It generates an electromagnetic field to detect the presence of ferrous and non-ferrous metal targets within its 2.5mm range, providing a reliable switching signal without mechanical contact or wear. The sensor features a robust polyalylate resin housing and sensing face, offering resistance to industrial contaminants and mechanical stress.
Operating from a 12-24V DC supply, the PNP normally-open output can sink up to 30mA, making it directly compatible with programmable logic controller (PLC) digital inputs and other control circuitry. Built-in protection features, including short-circuit and overload protection, ensure operational reliability and longevity in demanding applications such as machine tools, material handling, and automated assembly lines.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 2.5 × 0.8 cm |
