Hypersen HPS-167S ToF Infrared Ranging Sensor 18M Range 54Hz - CAN/RS485 Modbus Interface
The Hypersen HPS-167S is a high-performance Time-of-Flight (ToF) infrared ranging sensor designed for industrial and robotic applications, offering a maximum range of 18 meters with a configurable data rate up to 54Hz. It communicates via CAN or RS485 Modbus interfaces for seamless integration into PLCs, drones, and automated systems.
Features
- High-performance ToF infrared ranging with a maximum distance of 18 meters.
- Adaptive data output rate configurable from 6Hz to 54Hz for optimized performance.
- Integrated compensation for ambient light, temperature, and color to ensure measurement accuracy.
- Robust ABS and aviation aluminum waterproof housing for demanding environments.
- Dual communication interfaces: CAN bus and RS485 Modbus for industrial connectivity.
Out of stock
The HPS-167S utilizes a precise infrared Time-of-Flight (ToF) principle for distance measurement, achieving high signal-to-noise ratio (SNR) for reliable data even in variable lighting conditions. Its integrated algorithms actively compensate for ambient light interference, temperature drift, and target color, ensuring stable and accurate readings from 0.08m to 18m.
Housed in a durable ABS and aviation aluminum case, the sensor is built for industrial durability. It operates from a wide 5-15V DC supply and features low quiescent power consumption, making it suitable for battery-powered or always-on applications such as drone navigation, collision avoidance, and automated material handling systems.
Additional Information
| Weight | 0.027 kg |
|---|---|

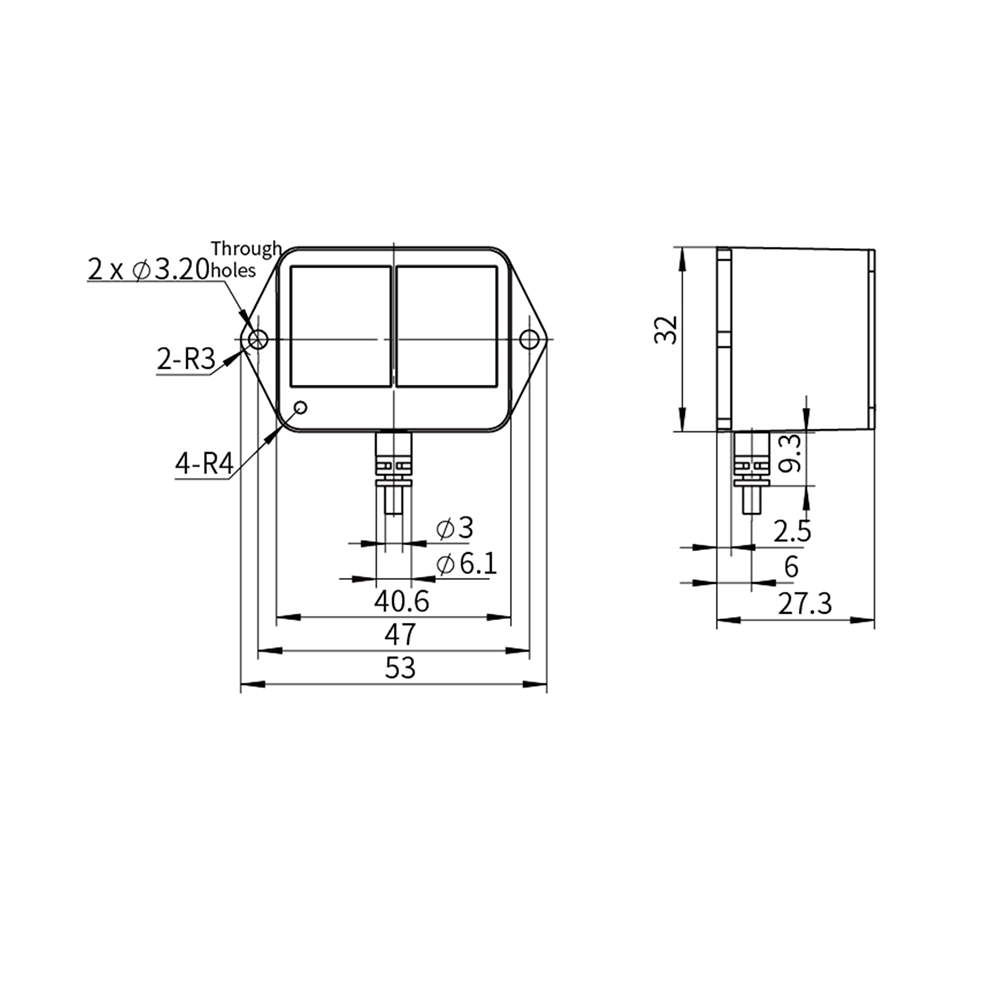

| Dimensions | 5.3 × 3.2 × 2.65 cm |
