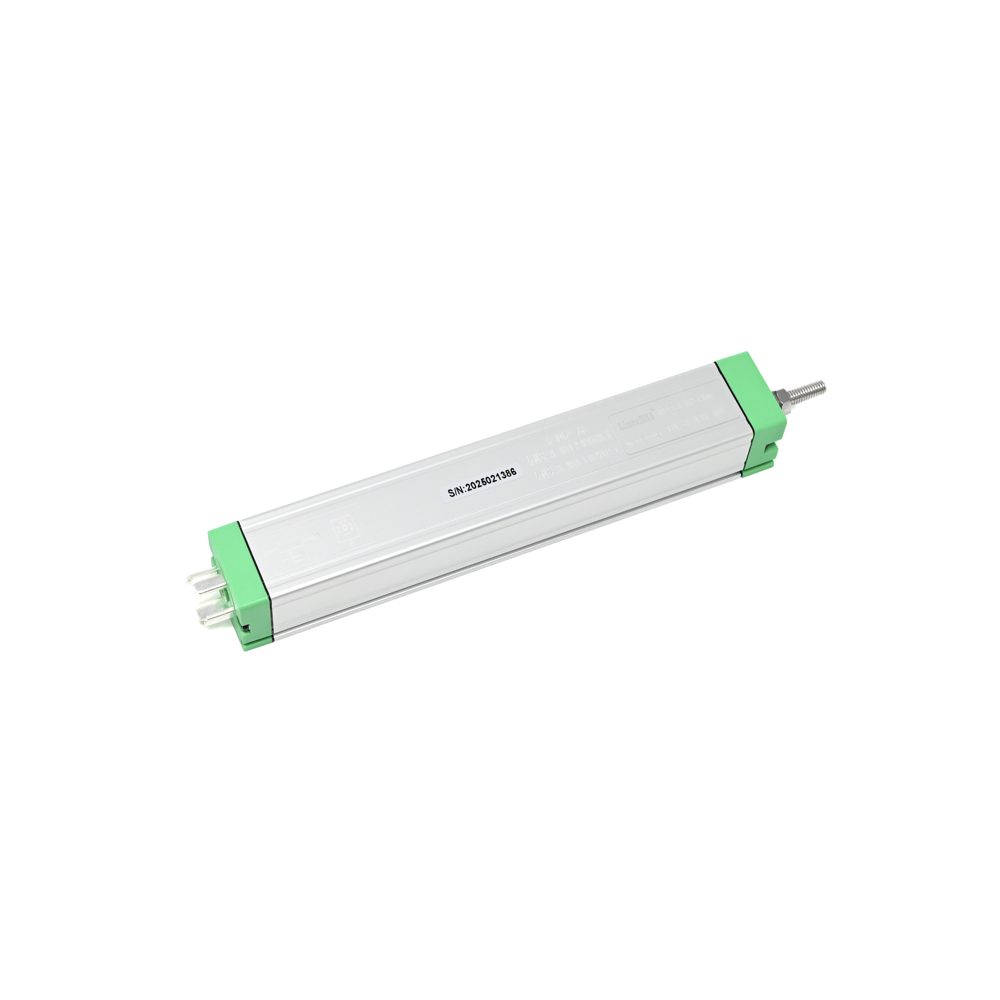

MIRAN LS2-130MM Linear Displacement Sensor - 130mm Stroke, Flange Mount, Hirschmann Plug
MIRAN LS2-130MM Linear Displacement Sensor - 130mm Stroke, Flange Mount, Hirschmann Plug - Image 2
SKU: SENS-0063
📋 GST Invoice Available

MIRAN LS2-130MM Linear Displacement Sensor - 130mm Stroke, Flange Mount, Hirschmann Plug

₹3,719.00 (Inclusive of all taxes)
Out of Stock

The MIRAN LS2-130MM is a high-precision linear displacement sensor featuring a 130mm stroke length and a conductive plastic resistive potentiometer for accurate analog position feedback. Its robust flange-mount design and enhanced sealing make it suitable for integration into industrial automation, machine tools, and robotics systems.

Features

  • 130mm stroke length with ±0.1% independent linearity for high-precision measurement.
  • Conductive plastic resistive potentiometer technology ensures smooth, reliable analog resistance output (5 kΩ ±10%).
  • Industrial-grade durability with an operating temperature range of -60°C to +150°C.
  • Enhanced sealing design provides protection against dust, moisture, and harsh industrial environments.
  • Includes comprehensive mounting kit with flange brackets, universal joint, and Hirschmann plug for easy installation.

Out of stock

Description

The MIRAN LS2-130MM Linear Displacement Sensor utilizes a conductive plastic resistive element and a pull-rod mechanism to translate linear motion into a precise analog resistance signal. This technology offers excellent repeatability and a long operational life, tested for over 100 million reciprocating cycles, making it ideal for continuous duty in demanding applications.

Engineered for industrial environments, the sensor features a robust mechanical structure with an IP-rated sealing gasket to withstand contaminants, vibration, and extreme temperatures. Its flange mount and included universal joint allow for flexible integration into various mechanical assemblies, providing reliable position feedback for closed-loop control systems.

Key Features

  • High-precision conductive plastic potentiometer with ±0.1% independent linearity.
  • Extended operational lifespan rated for over 100 million cycles.
  • Wide operating temperature range from -60°C to +150°C.
  • Industrial-grade construction with enhanced sealing for dust and moisture resistance.
  • Flange mount design with included slide-in brackets and universal joint for versatile installation.
  • Analog resistance output (5 kΩ ±10%) compatible with standard PLC analog input modules.
  • High-speed capability supporting movement up to 10 m/s.
  • Supplied with a Hirschmann plug for secure electrical connection.

Applications

  • Precision position feedback in CNC machine tools and injection molding machines.
  • Linear actuator and cylinder position monitoring in industrial automation systems.
  • Robotic arm joint and end-effector displacement measurement.
  • Material handling and packaging equipment for length or gap control.
  • Test and measurement rigs requiring high-repeatability linear motion tracking.

Technical Specifications

Model NumberLS2-130MM
Measurement Range0 - 130 mm
Sensor TechnologyConductive Plastic Resistive Potentiometer (Pull-Rod Type)
Output SignalAnalog Resistance Output (5 kΩ ±10%)
Supply Voltage28 VDC
Operating Current10 µA
Independent Linearity±0.1%
Maximum Speed10 m/s
Operating Temperature-60°C to +150°C
Mechanical MountingFlange Mount, Rod-Pull Type
Width3.3 cm
Length24.5 cm
Weight0.346 kg

Frequently Asked Questions

What is the output signal of the LS2-130MM sensor?

The LS2-130MM provides an analog resistance output, nominally 5 kΩ with a ±10% tolerance. This variable resistance corresponds directly to the position of the pull-rod within its 0-130mm stroke. It is designed to interface with standard industrial PLC analog input modules or signal conditioners that can read resistive elements.

What are the mounting options for this linear sensor?

This sensor is designed for flange mounting using the included two slide-in brackets. It also features a universal joint connected to the pull-rod, which accommodates minor misalignments in the installed assembly. The comprehensive hardware kit (M4 screws, washers) facilitates secure installation onto machinery frames or actuator bodies.

What is the operating temperature and environmental protection?

The LS2-130MM is rated for operation from -60°C to +150°C, making it suitable for harsh industrial environments. It includes an enhanced sealing gasket that provides protection against dust and moisture ingress, though for specific IP ratings, consult the official datasheet. Its robust construction ensures reliable performance in high-vibration settings.

What is the maximum speed this sensor can accurately track?

The sensor can reliably measure linear motion at speeds up to 10 meters per second. This high-speed capability, combined with its long-life conductive plastic element, makes it suitable for dynamic applications such as rapid reciprocating cycles in automation equipment or high-speed packaging machinery.

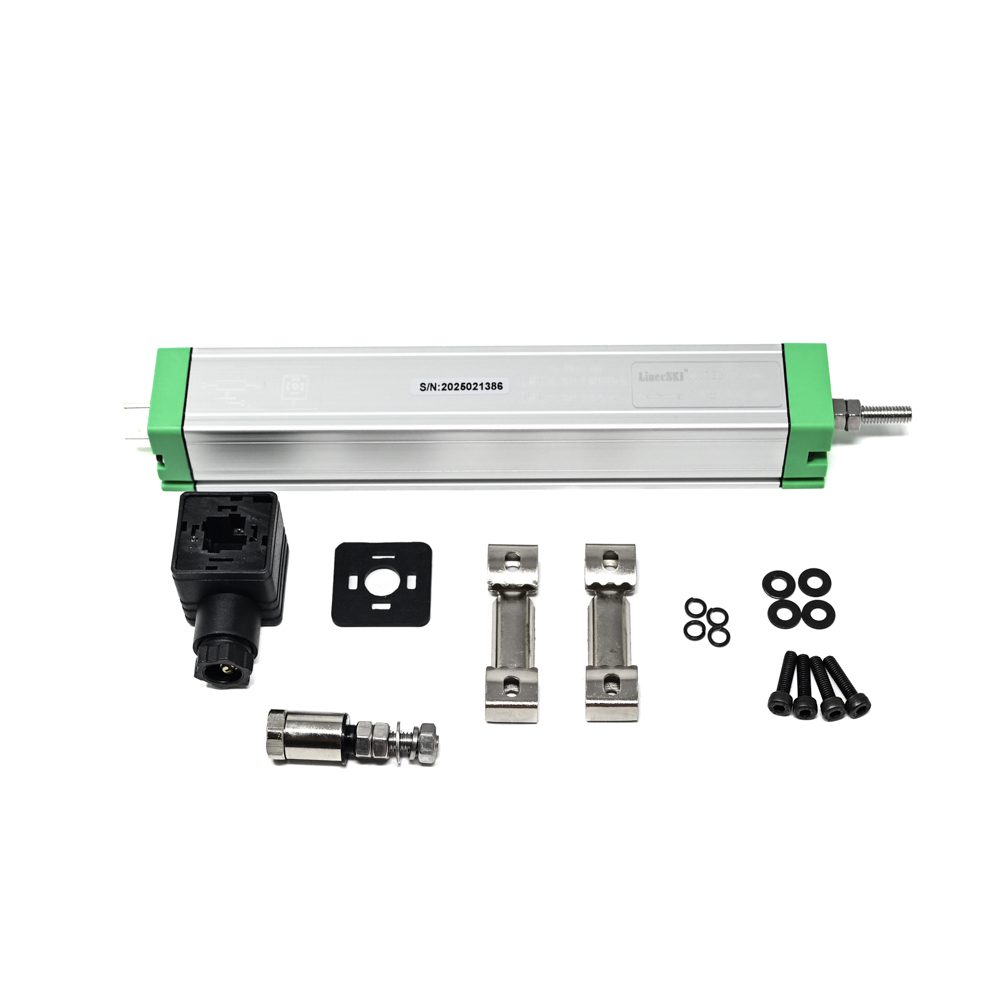

Package Includes

  • 1 x MIRAN LS2-130MM Linear Displacement Sensor
  • 1 x Hirschmann Plug
  • 1 x Sealing Gasket
  • 1 x Universal Joint
  • 2 x Slide-in Mounting Bracket
  • 4 x M4 Flat Washer
  • 4 x M4 Spring Washer
  • 4 x M4X20 Screw

Additional Information

Weight 0.346 kg
Dimensions 24.5 × 3.3 cm
