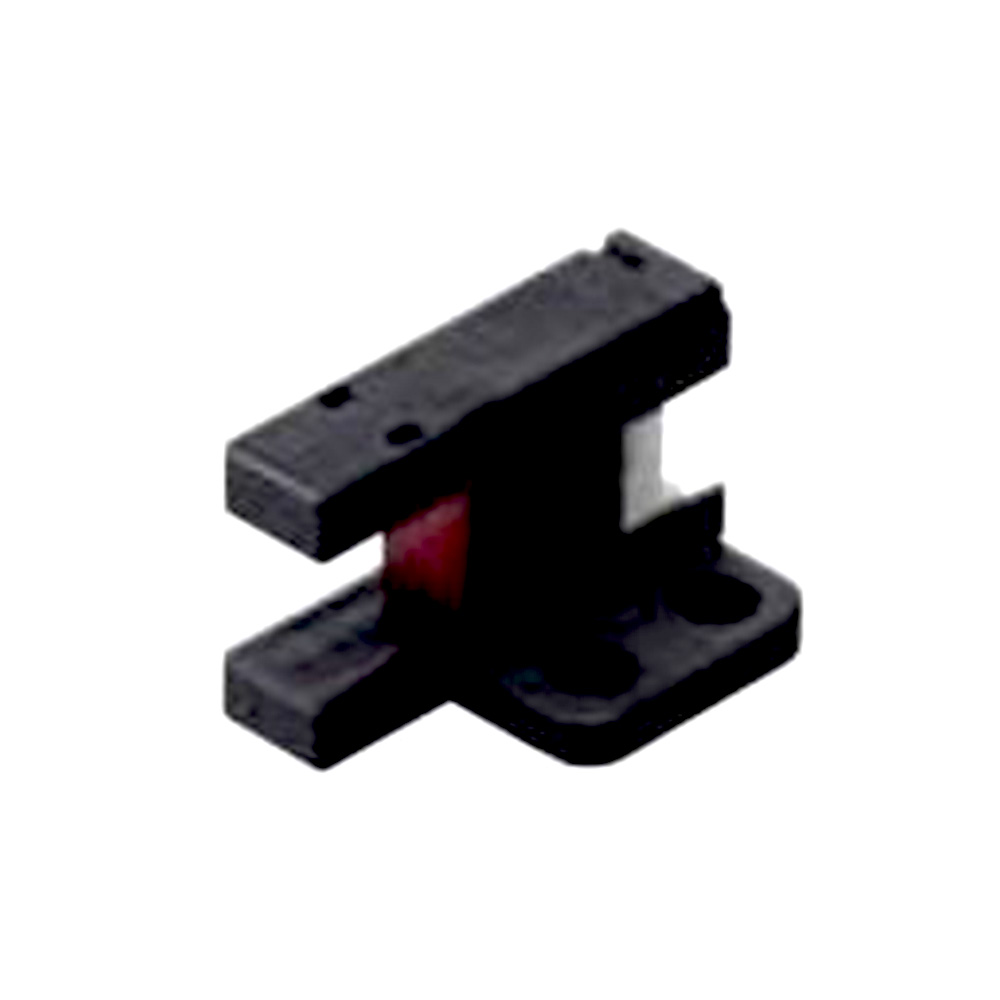

Panasonic PM-F65W Photoelectric Sensor, 6mm Range, NPN Output
The Panasonic PM-F65W is a compact, high-precision photoelectric sensor with a fixed 6mm detection range, designed for 5-24V DC industrial control systems and compatible with PLCs and microcontroller interfaces. It reliably detects opaque objects as small as 0.8mm x 1.2mm using an NPN open collector output.
Features
- Fixed 6mm detection distance for precise object positioning.
- Detects ultra-small opaque objects down to 0.8mm x 1.2mm.
- Wide 5-24V DC operating voltage range for flexible system integration.
- Fast response times: 20µs (light) and 80µs (dark) for high-speed applications.
- NPN open collector output with 50mA max sink current for direct PLC/microcontroller interface.
Out of stock
The PM-F65W utilizes a through-beam photoelectric sensing principle, where an integrated emitter and receiver detect the interruption of a light beam by an opaque object. This design provides consistent and reliable detection at a fixed 6mm range, making it ideal for precise counting, positioning, and end-stop detection tasks.
Built for industrial environments, the sensor features an IP40 protective structure, safeguarding against the ingress of solid objects larger than 1mm. Its wide operating temperature range of -25°C to +55°C and storage range of -30°C to +80°C ensure stable performance in varied conditions. The low current consumption of 15mA or less minimizes power draw in multi-sensor installations.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 8 × 5 × 2 cm |
