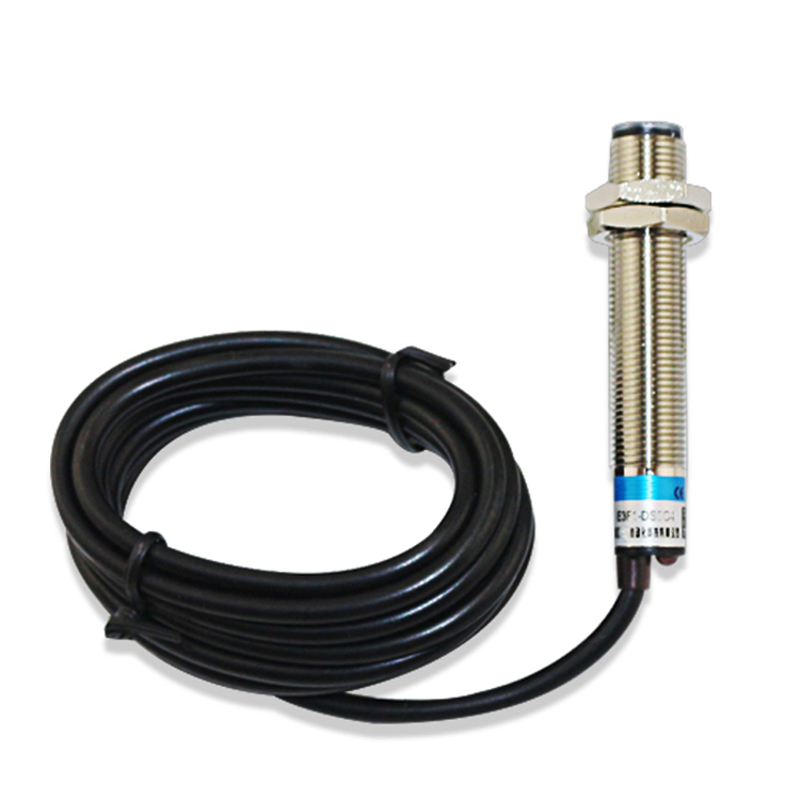

Generic E3F1-DS5B2 Photoelectric Sensor NPN NO/NC, DC 10–30V, 200mA, 1.2m Cable
The Generic E3F1-DS5B2 is a compact photoelectric sensor module with NPN output (NO/NC selectable) for object detection, compatible with industrial PLCs and 10–30V DC control systems. It features a fixed/adjustable sensing distance and is designed for reliable performance in automation and material handling applications.
Features
- NPN output with selectable Normally Open (NO) or Normally Closed (NC) operation.
- Wide operating voltage range of 6–36V DC with a 200mA load capacity.
- Compact, durable housing constructed from ABS plastic with a PMMA lens.
- Features a fixed sensing distance with adjustable sensitivity for precise object detection.
- Includes a 1.2-meter pre-wired cable for simplified installation and connection.
Out of stock
The E3F1-DS5B2 photoelectric sensor operates on the through-beam principle, emitting a light beam to detect the presence or absence of an object. Its NPN transistor output provides a solid-state switching signal compatible with a wide range of programmable logic controllers (PLCs), microcontrollers, and industrial automation systems operating on 10–30V DC power.
Built with an ABS plastic shell and a PMMA optical lens, the sensor is designed for durability in industrial environments, with an operating temperature range of -30°C to 75°C. The fixed sensing distance, with adjustable sensitivity via a potentiometer, ensures reliable detection and minimizes false triggers in applications like packaging, conveyor systems, and material handling.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 13 × 7 × 3 cm |
