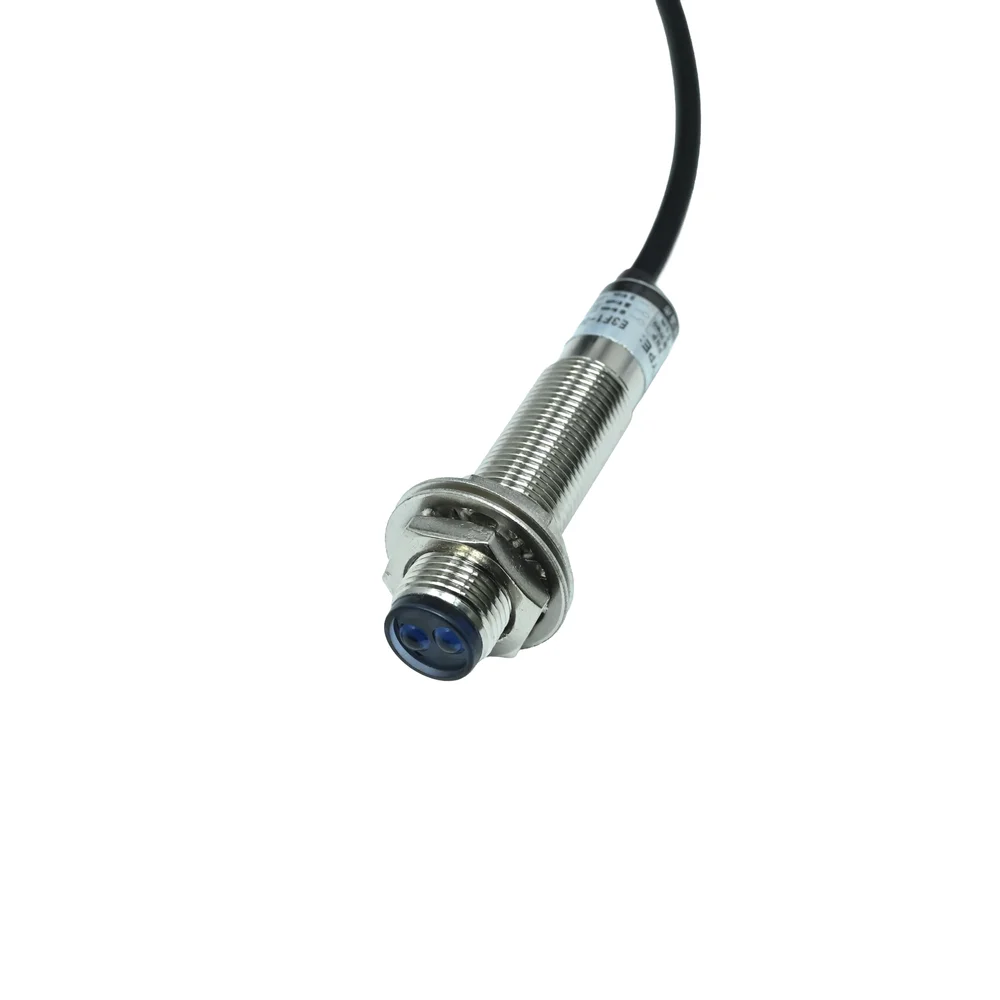

Generic E3F1-DS5P1 Photoelectric Sensor - PNP NO, DC 10-30V, 200mA, Fixed/Adjustable Sensing

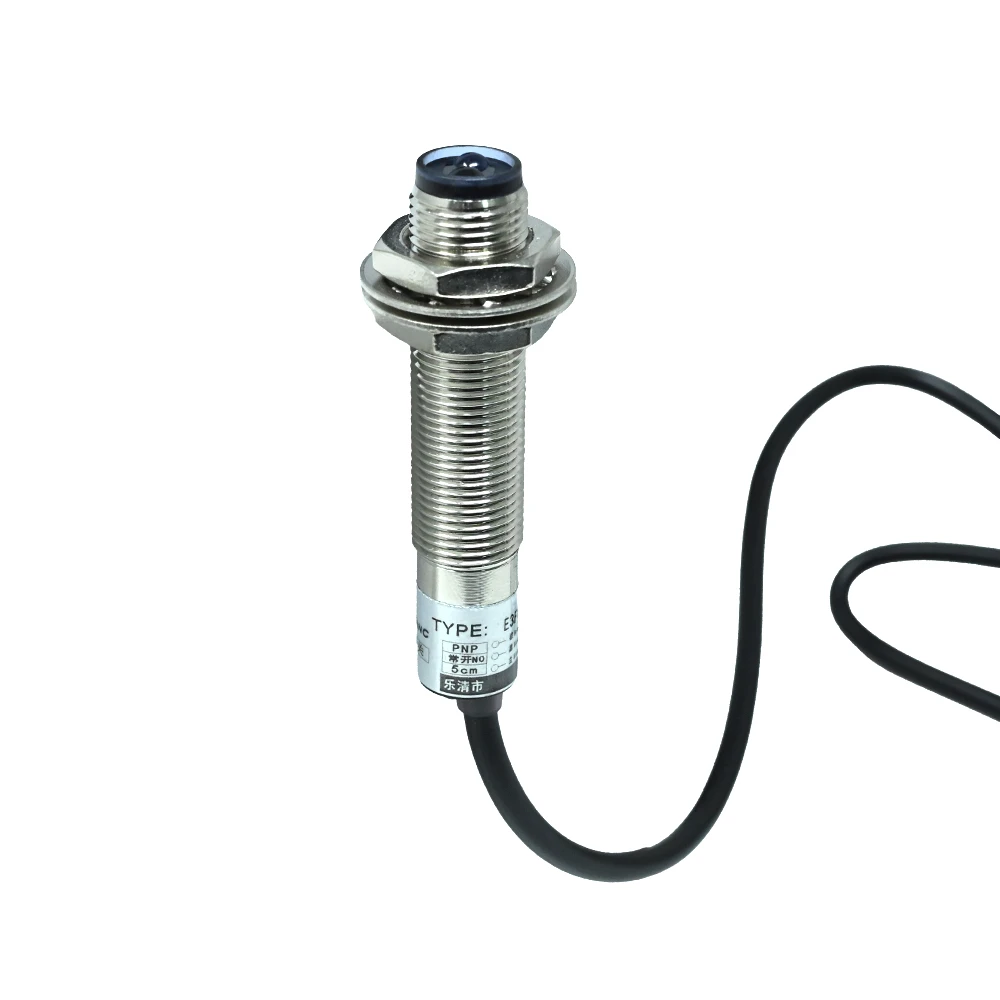

Generic E3F1-DS5P1 Photoelectric Sensor - PNP NO, DC 10-30V, 200mA, Fixed/Adjustable Sensing - Image 2

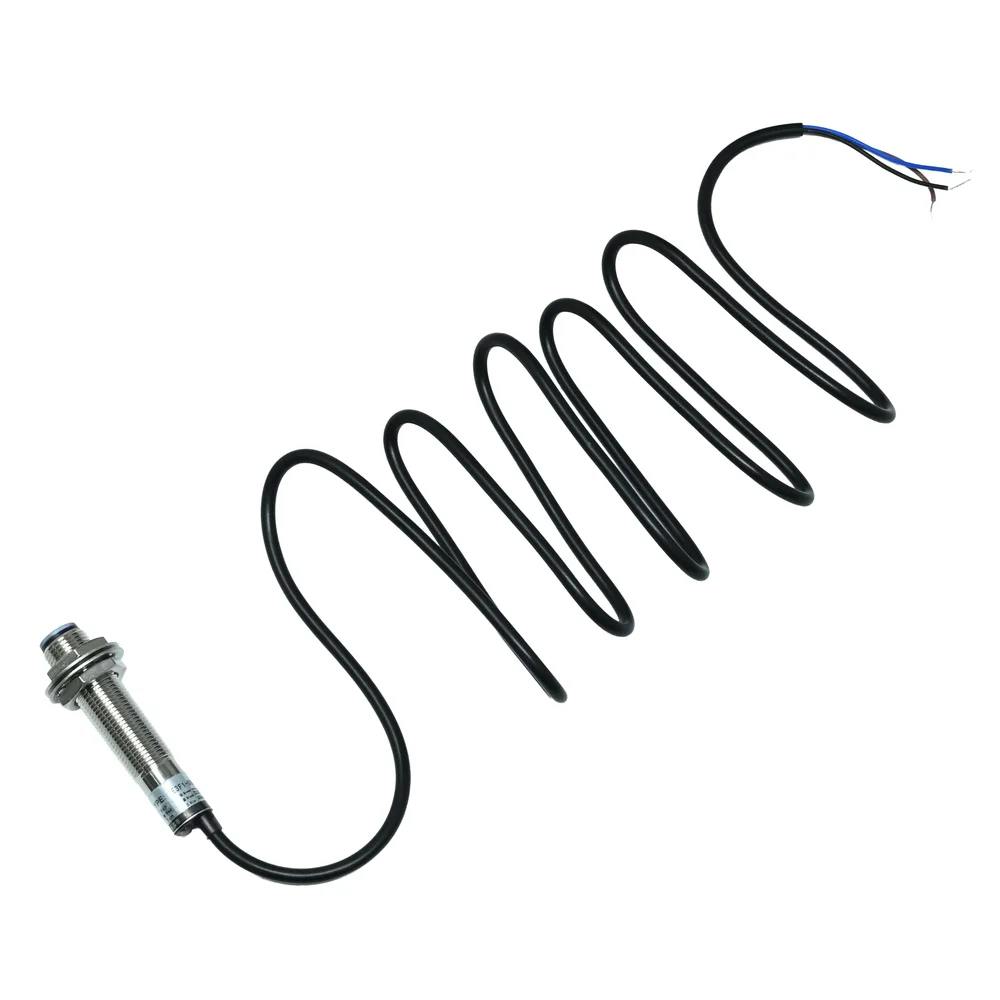

Generic E3F1-DS5P1 Photoelectric Sensor - PNP NO, DC 10-30V, 200mA, Fixed/Adjustable Sensing - Image 3

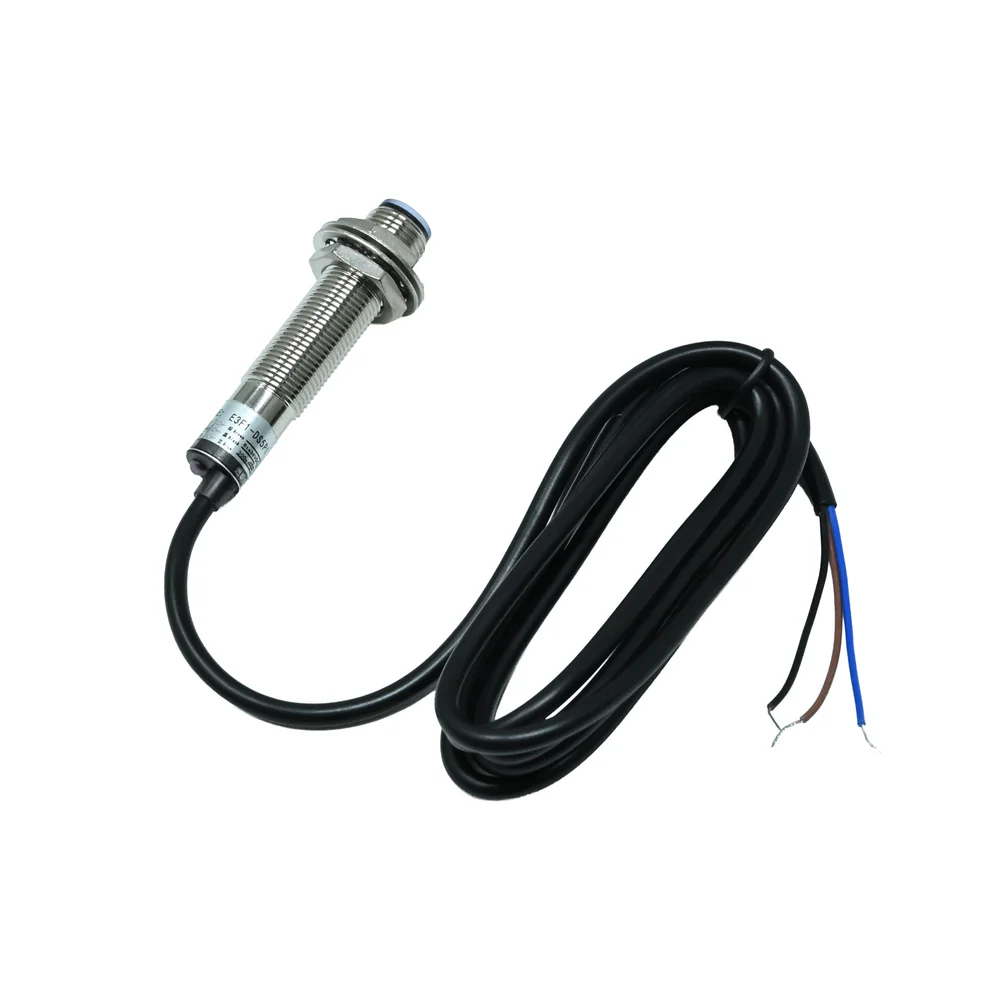

Generic E3F1-DS5P1 Photoelectric Sensor - PNP NO, DC 10-30V, 200mA, Fixed/Adjustable Sensing - Image 4
SKU: SENS-1758
📋 GST Invoice Available

Generic E3F1-DS5P1 Photoelectric Sensor - PNP NO, DC 10-30V, 200mA, Fixed/Adjustable Sensing

₹629.00 (Inclusive of all taxes)
Out of Stock

The Generic E3F1-DS5P1 is a compact, industrial-grade photoelectric sensor with a PNP normally-open (NO) output, operating from a wide DC 10-30V supply. It provides reliable object detection for automation systems, material handling, and conveyor control with a fixed/adjustable sensing range.

Features

  • PNP Normally-Open (NO) output compatible with PLCs and industrial controllers.
  • Wide operating voltage range of DC 10-30V for flexible system integration.
  • Compact and durable housing designed for harsh industrial environments.
  • Fixed/Adjustable sensing distance for precise object detection setup.
  • High 200mA output current for direct switching of relays or indicators.

Out of stock

Description

The E3F1-DS5P1 photoelectric sensor utilizes a modulated infrared light beam for reliable object detection, immune to ambient light interference. Its PNP sourcing output simplifies wiring to common programmable logic controllers (PLCs) and 24V industrial control systems.

Built with an industrial-grade housing, the sensor operates reliably across a wide temperature range from -30°C to +75°C, making it suitable for factory automation, packaging lines, and material handling applications where consistent performance is critical.

Key Features

  • Industrial-grade photoelectric sensor with robust construction.
  • PNP (sourcing) normally-open output for direct PLC interface.
  • Wide supply voltage compatibility from 10V to 30V DC.
  • High output current capacity of 200mA for driving loads directly.
  • Fixed or adjustable sensing distance for application-specific tuning.
  • Extended operating temperature range from -30°C to +75°C.
  • Compact form factor for easy integration into tight spaces.
  • Includes a 1.2-meter pre-wired cable for simplified installation.

Applications

  • Object presence detection on conveyor belts and assembly lines.
  • Material handling and packaging machine automation.
  • Part counting and positioning in manufacturing processes.
  • Gate and door safety interlock systems.
  • Level detection in bins and hoppers.

Technical Specifications

ModelE3F1-DS5P1
Output TypePNP, Normally Open (NO)
Supply VoltageDC 10-30V
Output Current200mA max
Sensing DistanceFixed / Adjustable
Wire Length1.2 m
Operating Temperature-30°C to +75°C
Housing MaterialIndustrial Plastic

Frequently Asked Questions

What is the output type of the E3F1-DS5P1 sensor and how do I wire it?

The E3F1-DS5P1 features a PNP (sourcing) normally-open (NO) output. Connect the brown wire to DC 10-30V positive, the blue wire to negative/common, and the black wire is the switched positive output. When an object is detected, the black output wire switches to the supply voltage to drive your PLC input, relay, or indicator.

What is the difference between fixed and adjustable sensing distance?

The 'Fixed/Adjustable' specification indicates the sensor's sensing range is preset but may feature a sensitivity potentiometer for fine-tuning. This allows you to optimize detection for specific object colors, materials, or environmental conditions while maintaining a stable baseline operating point for consistent performance.

Can this sensor operate on a 24V DC industrial power supply?

Yes, the E3F1-DS5P1 is fully compatible with standard 24V DC industrial power supplies, as its operating range of 10-30V DC encompasses this common voltage. Its 200mA output current is sufficient to directly interface with PLC digital inputs or pilot small relays without requiring an additional amplifier.

What environmental conditions is this sensor rated for?

This sensor is built for industrial environments with an operating temperature range of -30°C to +75°C. It is designed to withstand typical factory conditions including vibration, dust, and intermittent moisture, though it is not specifically rated with an IP code for liquid immersion.

Package Includes

  • 1 x E3F1-DS5P1 Photoelectric Sensor

Additional Information

Weight 0.065 kg
Dimensions 13 × 7 × 3 cm
