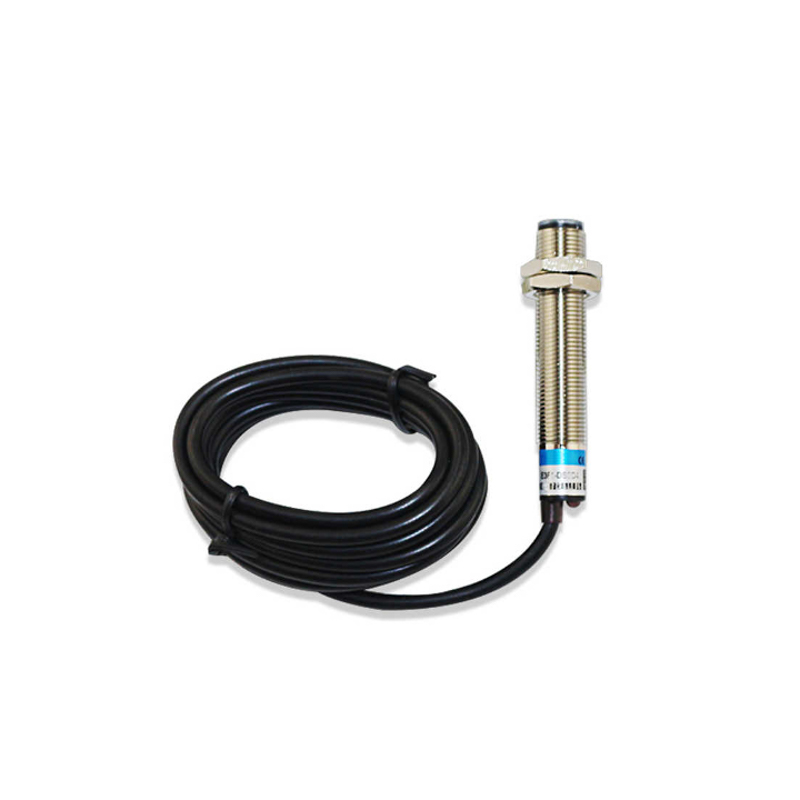

Generic E3F1-DS5C4 Photoelectric Sensor NPN NO/NC, DC 10–30V, 200mA, Adjustment Fixed Sensing Distance
The Generic E3F1-DS5C4 is a compact photoelectric sensor module with NPN output (NO/NC) and a fixed, adjustable sensing distance, designed for industrial object detection. It operates on a wide 6-36V DC supply and is compatible with PLCs, industrial controllers, and 24V automation systems.
Features
- NPN output with selectable Normally Open (NO) or Normally Closed (NC) configuration.
- Wide operating voltage range of 6-36V DC, suitable for 12V, 24V, and 30V industrial systems.
- Fixed sensing distance with adjustable sensitivity for precise object detection.
- Durable ABS plastic housing with PMMA lens for reliable operation in industrial environments.
- Integrated 1.2-meter wire for convenient connection and installation.
Out of stock
The E3F1-DS5C4 photoelectric sensor utilizes a modulated infrared LED and phototransistor receiver to detect the presence or absence of objects within its fixed sensing range. The NPN transistor output can be configured as either a sinking (NO) or sourcing (NC) signal, providing flexibility for interfacing with PLC digital inputs, relay modules, or microcontroller circuits.
Engineered for industrial durability, the sensor features an ABS plastic shell and a scratch-resistant PMMA optical lens. Its wide operating temperature range from -30°C to +75°C ensures stable performance in challenging environments, from cold storage to hot factory floors, making it a robust solution for automated detection tasks.
Additional Information
| Weight | 0.065 kg |
|---|---|
| Dimensions | 13 × 7 × 3 cm |
