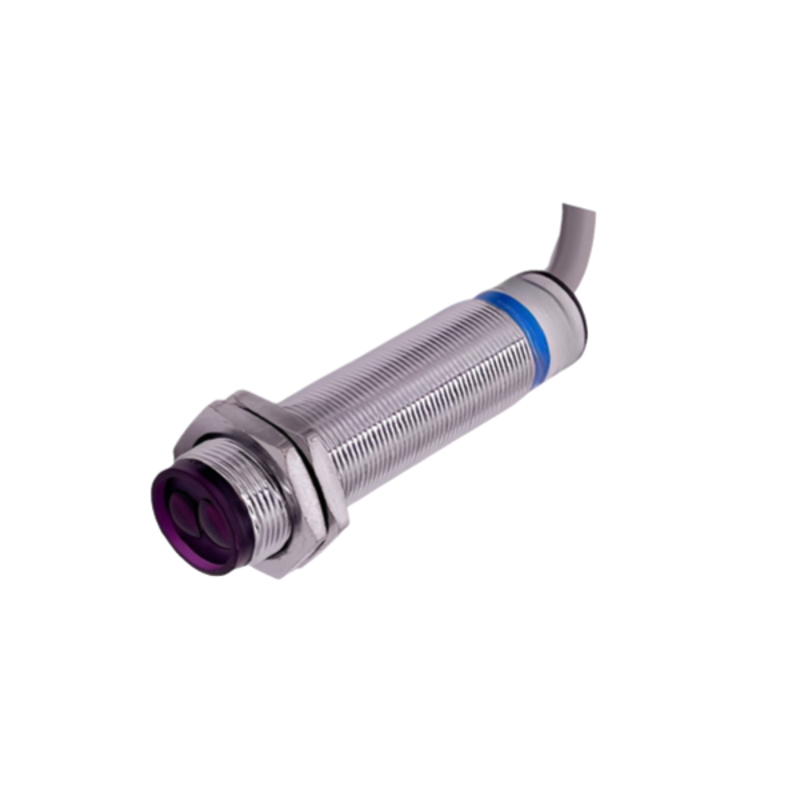

Generic E3F1-DS5P2 Photoelectric Sensor, PNP NC, DC 10–30V, 200mA, M12 3-Wire

This sensor has a PNP (sourcing) output, meaning the signal wire switches to the positive supply voltage when active. In its Normally Closed (NC) configuration, the output is HIGH (supply voltage) when no object is detected and switches LOW (0V) when an object is present. For wiring, connect the brown wire to DC+, blue to DC-, and the black wire is the PNP switched output to your PLC or controller input.

Yes, this model features an adjustable sensing distance. A potentiometer is typically located on the sensor body, allowing you to fine-tune the detection range within its maximum specified limit. This is useful for optimizing performance for different target colors, materials, or to avoid background interference.

The PNP output transistor is rated for a maximum continuous current of 200mA. This is sufficient to directly drive small relays, PLC digital inputs, or indicator lamps without an additional amplifier. Ensure your connected load does not exceed this current rating and that the supply voltage remains within the 6-36V DC range.

While the ABS plastic housing and PMMA lens provide good durability, the specific IP (Ingress Protection) rating is not stated in the provided specs. For outdoor or washdown environments with water, dust, or chemicals, verify the IP rating (e.g., IP67) before installation. Its operating temperature range of -30°C to +75°C supports use in many non-condensing industrial settings.
