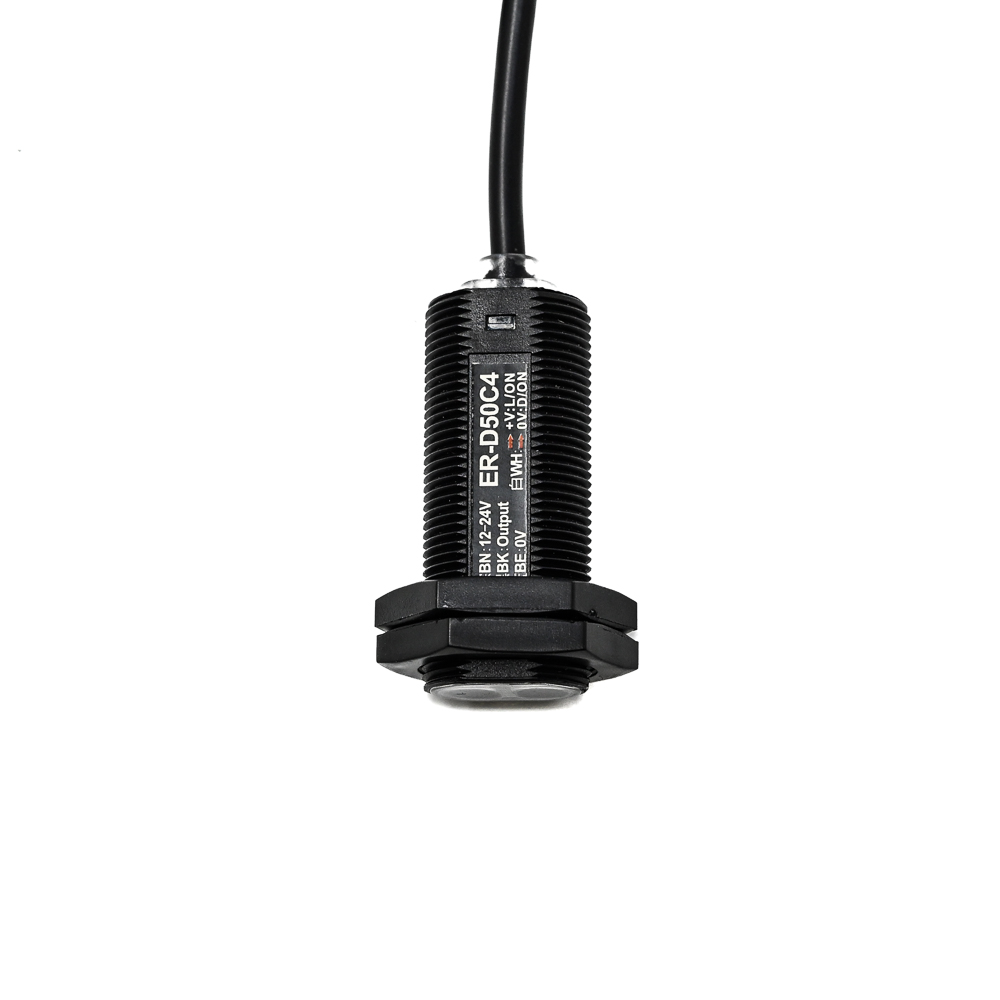

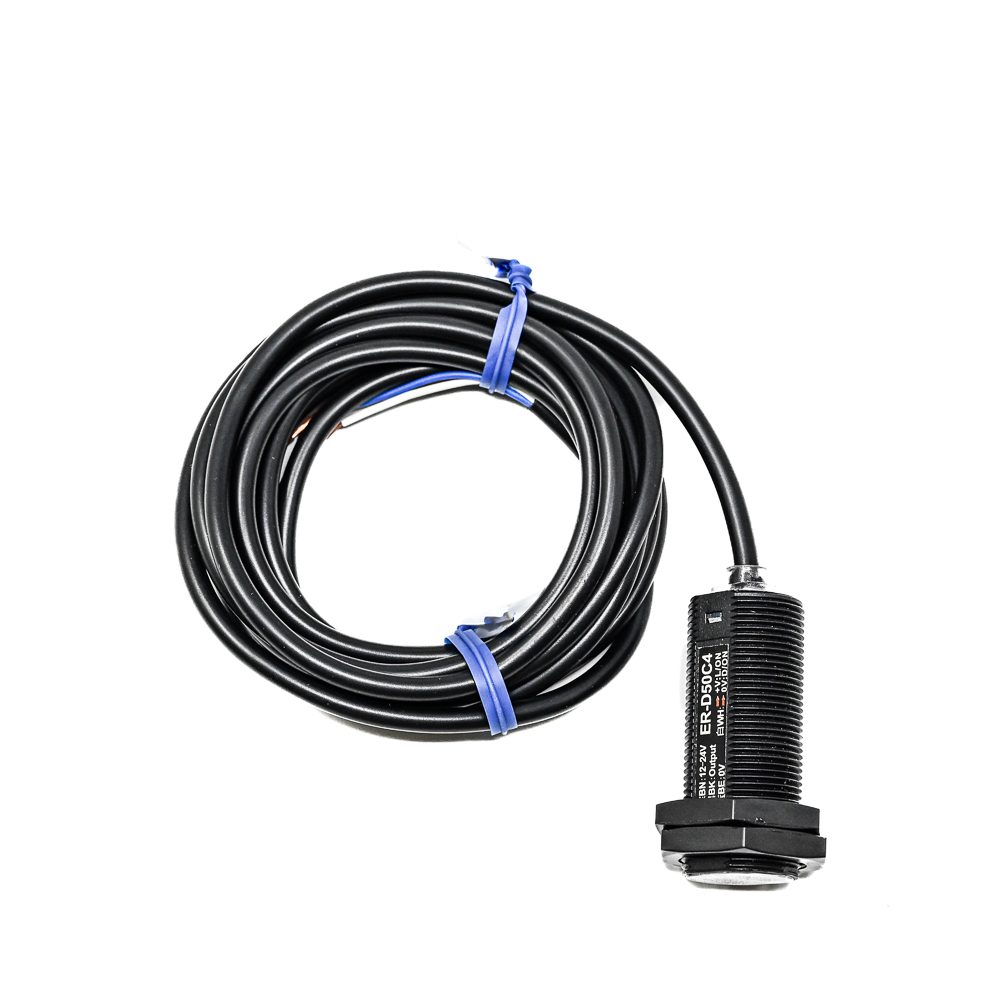

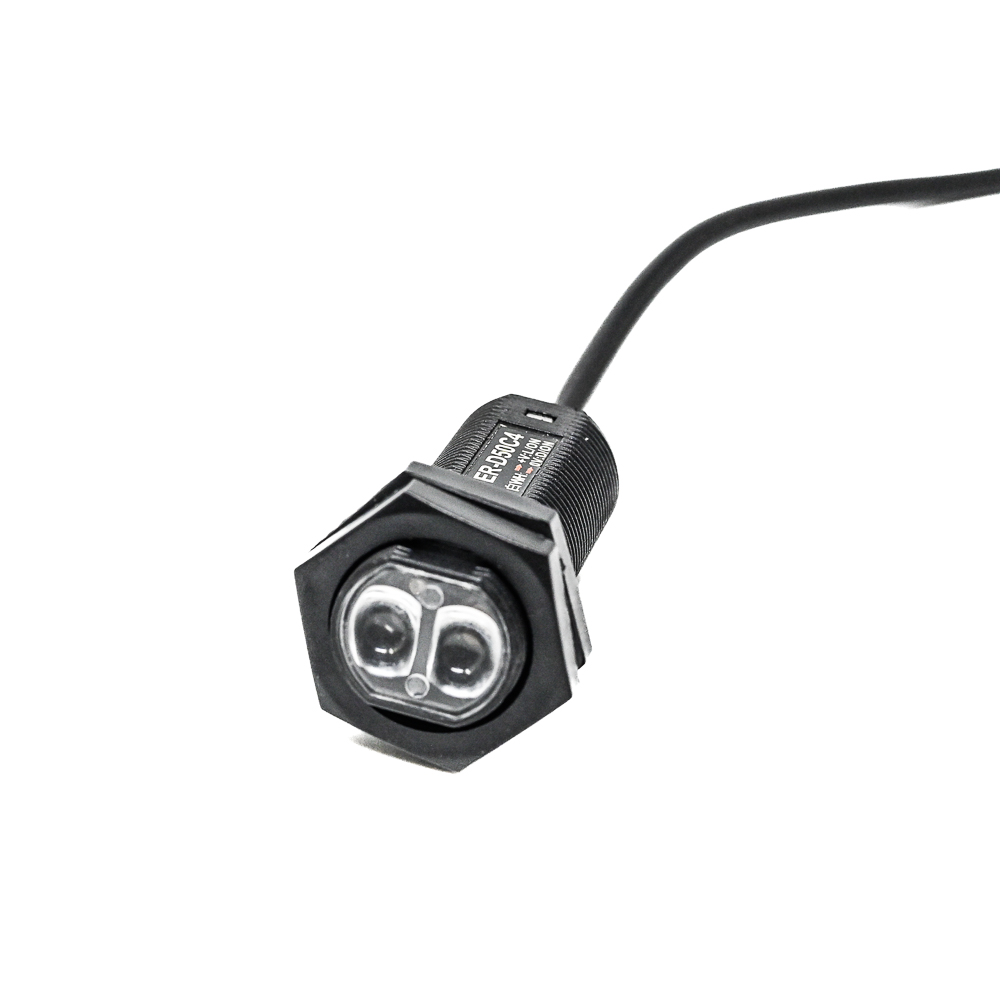

Aotoro ER18A-D50C4 Photoelectric Sensor 50cm Diffuse Reflective Plastic Type 12-24VDC
The Aotoro ER18A-D50C4 is a compact 18mm-diameter diffuse reflective photoelectric sensor designed for 12-24VDC industrial control systems and PLCs. It provides reliable detection of opaque, translucent, and transparent objects up to 50cm, featuring selectable Light ON/Dark ON logic and a fast 1ms response time.
Features
- Compact 18mm diameter ABS plastic housing for tight-space installations.
- Diffuse reflective sensing mode with a 50cm (500mm) detection range.
- Operates on 12-24VDC with selectable Light ON/Dark ON output logic.
- Fast 1ms response time for high-speed object detection and counting.
- IP64/IP67 environmental protection rating for reliable operation in diverse conditions.
Out of stock
The Aotoro ER18A-D50C4 photoelectric sensor utilizes a modulated infrared LED light source and a receiver to detect objects via the diffuse reflective principle. The sensor’s output switches based on the intensity of light reflected back from a target, making it suitable for detecting objects without requiring a separate reflector. Its integrated circuit provides robust protection against short circuits, reverse polarity, and voltage surges.
Housed in a durable ABS plastic body, this sensor is designed for long-term reliability in industrial environments. It operates across a wide temperature range from -25°C to +60°C and 35-85% relative humidity, ensuring stable performance in challenging conditions. The compact 18mm diameter and 45mm length facilitate easy integration into machinery, conveyor systems, and automated equipment.
Additional Information
| Weight | 0.046 kg |
|---|---|
| Dimensions | 4.5 × 2 cm |
