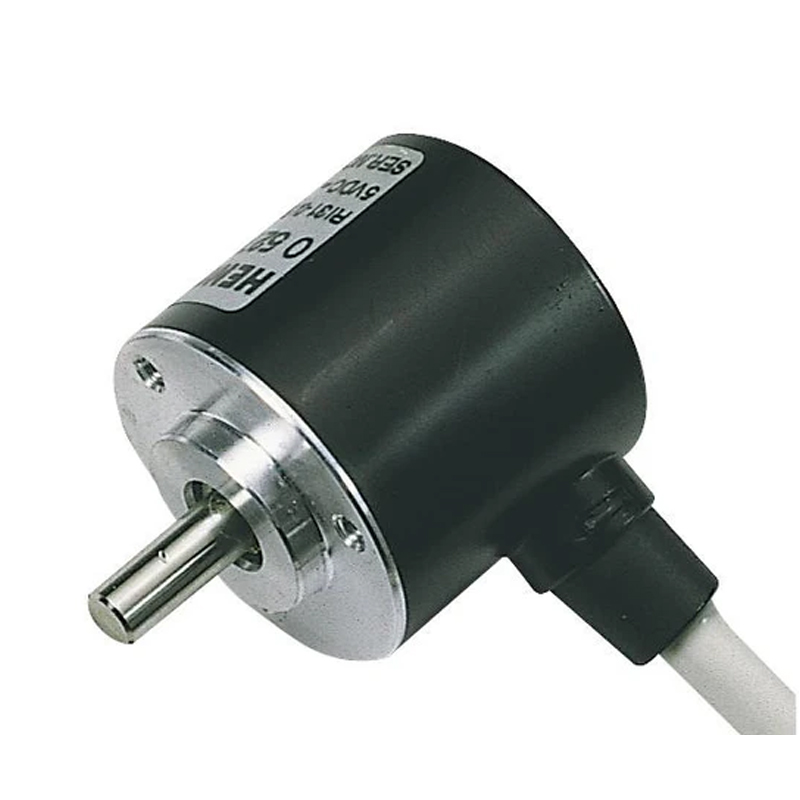

Hengstler RI32-0/360ER.14KB Rotary Encoder, Optical, Incremental, 360 PPR, 0 Detents, Horizontal, Without Push Switch
The Hengstler RI32-0/360ER.14KB is an incremental optical rotary encoder delivering 360 pulses per revolution (PPR) for precise motion feedback and speed monitoring in industrial automation, CNC machinery, and laboratory equipment. Featuring a push-pull output and a 5mm D-type shaft, it integrates seamlessly with PLCs, motor drives, and microcontroller systems like Arduino and Raspberry Pi.
Features
- Incremental optical encoder with 360 pulses per revolution (PPR) resolution.
- Push-pull short-circuit protected output (3 channels) for robust signal transmission.
- High-quality ball bearing construction ensures long operational life and smooth rotation.
- Wide supply voltage range of 10-30V DC for industrial compatibility.
- Compact round flange mounting (IP40/IP50 rated) for integration into tight spaces.
Out of stock
The Hengstler RI32-0/360ER.14KB utilizes an optical sensing principle with a precise code disc and photoelectric sensor to generate incremental quadrature signals. This provides accurate angular position and rotational speed data, essential for closed-loop control systems. The encoder’s durable ball bearing shaft support minimizes mechanical wear and maintains signal integrity over extended periods.
Designed for integration into industrial environments, the encoder features a robust housing with IP40/IP50 ingress protection, safeguarding against dust and limited moisture exposure. Its operating temperature range of -10°C to +60°C ensures reliable performance in controlled settings. The low rotational torque and 5mm D-type shaft facilitate smooth operation in precision equipment and small devices.
Additional Information
| Weight | 0.18 kg |
|---|---|
| Dimensions | 4.7 × 3 × 4.7 cm |
